C1552

DTC C1552 DC MOTOR POWER SOURCE VOLTAGE MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The VGRS ECU monitors PIG (motor power source voltage). If the ECU detects a malfunction, it turns on the warning light, records the DTC and stops VGRS operation.

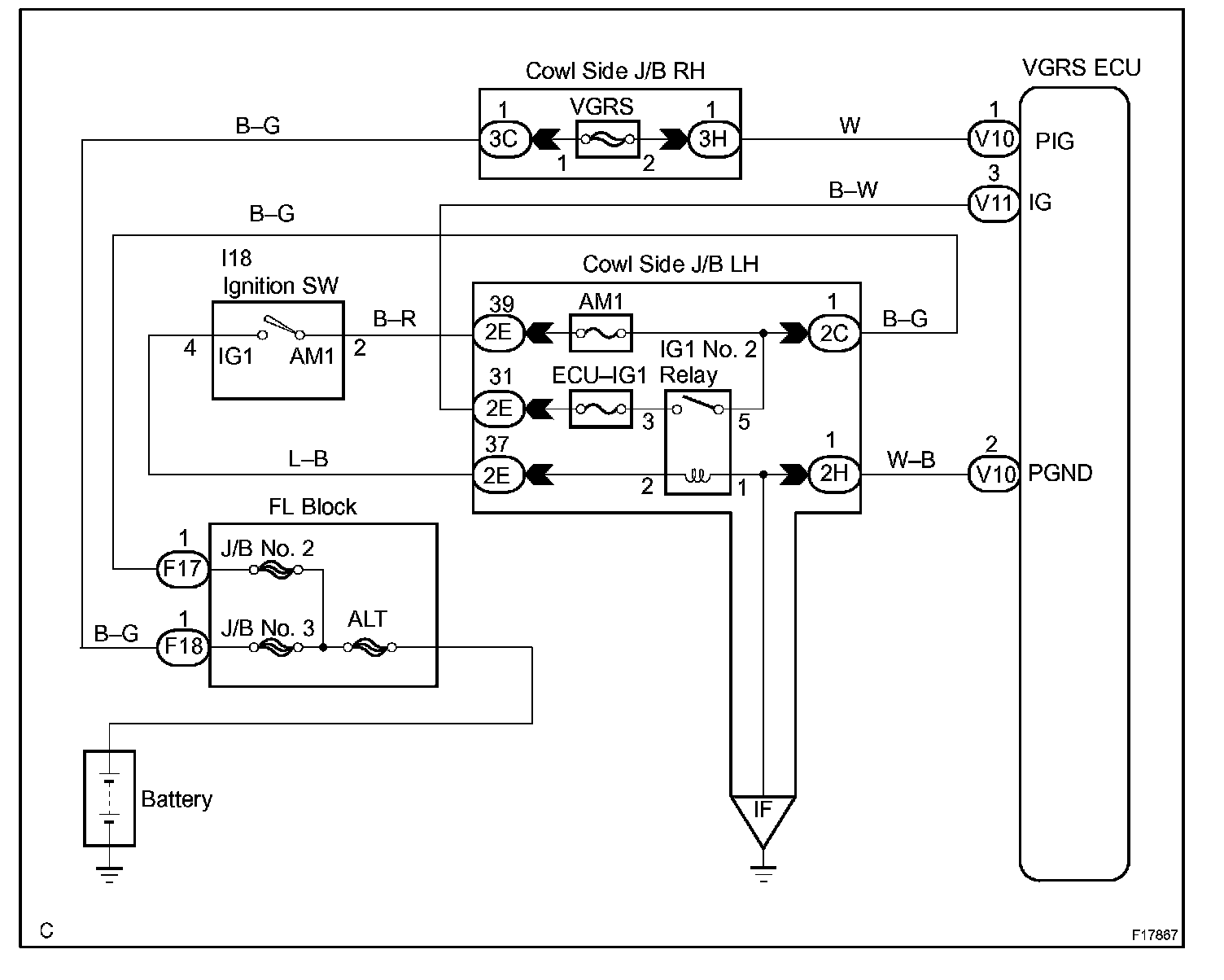

Wiring Diagram:

Step 1 - 2:

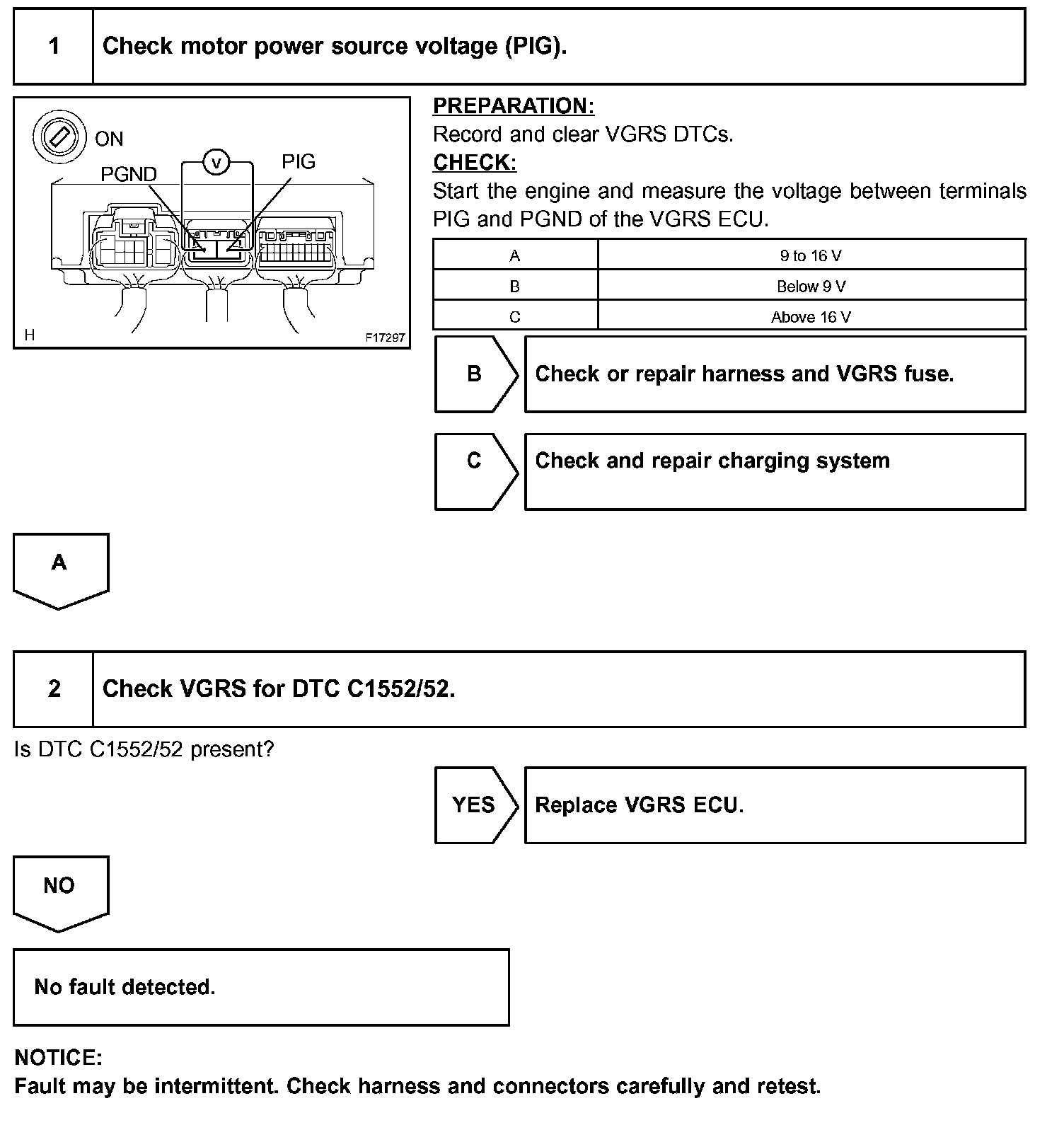

INSPECTION PROCEDURE
