Air Conditioning System

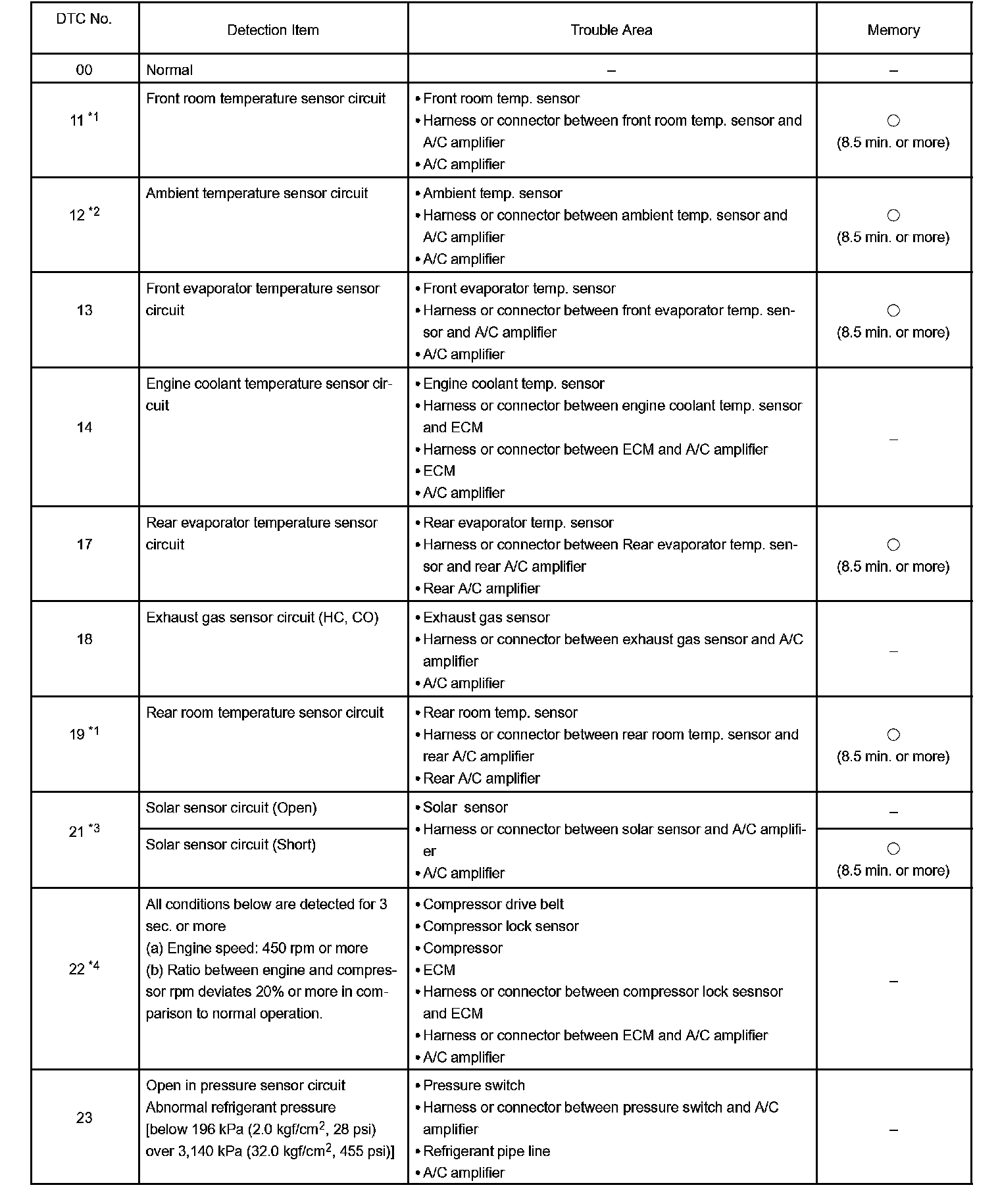

DIAGNOSTIC TROUBLE CODE CHART

11 - 23:

26 - 61:

If malfunction code is displayed during the DTC check, check the circuit listed for that code in the table.

To confirm DTC 22, preform the following steps.
1. With the engine ON, enter the DTC check mode.
2. Press the R/F SW to enter actuator check mode, and set the operation to Step No. 3.
3. Press the AUTO SW to return to DTC check mode.
4. The DTC is displayed after approx. 3 secs.
