Suspension Control ( Automatic - Electronic )

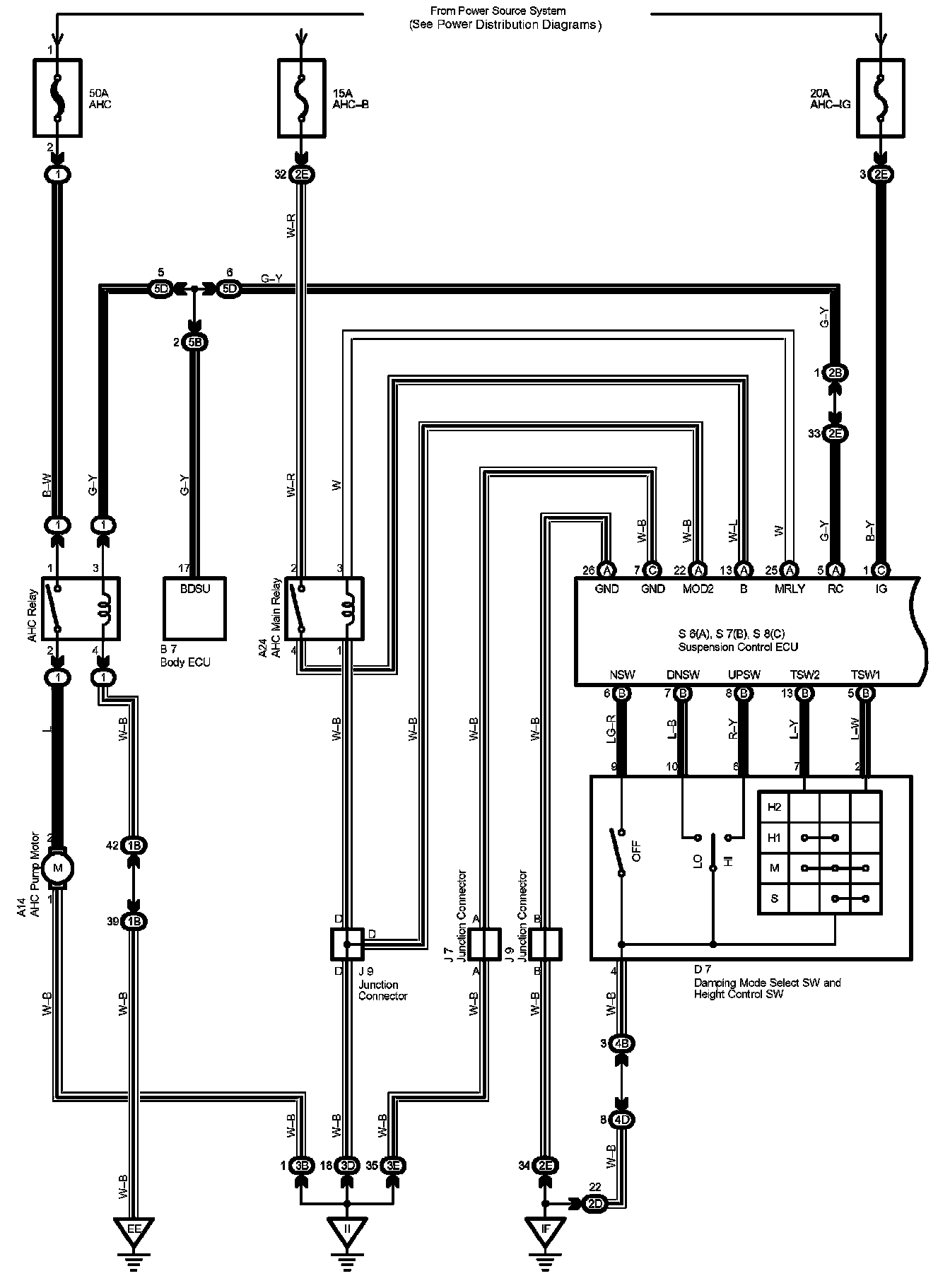

AHC And Adaptive Variable Suspension Part 1:

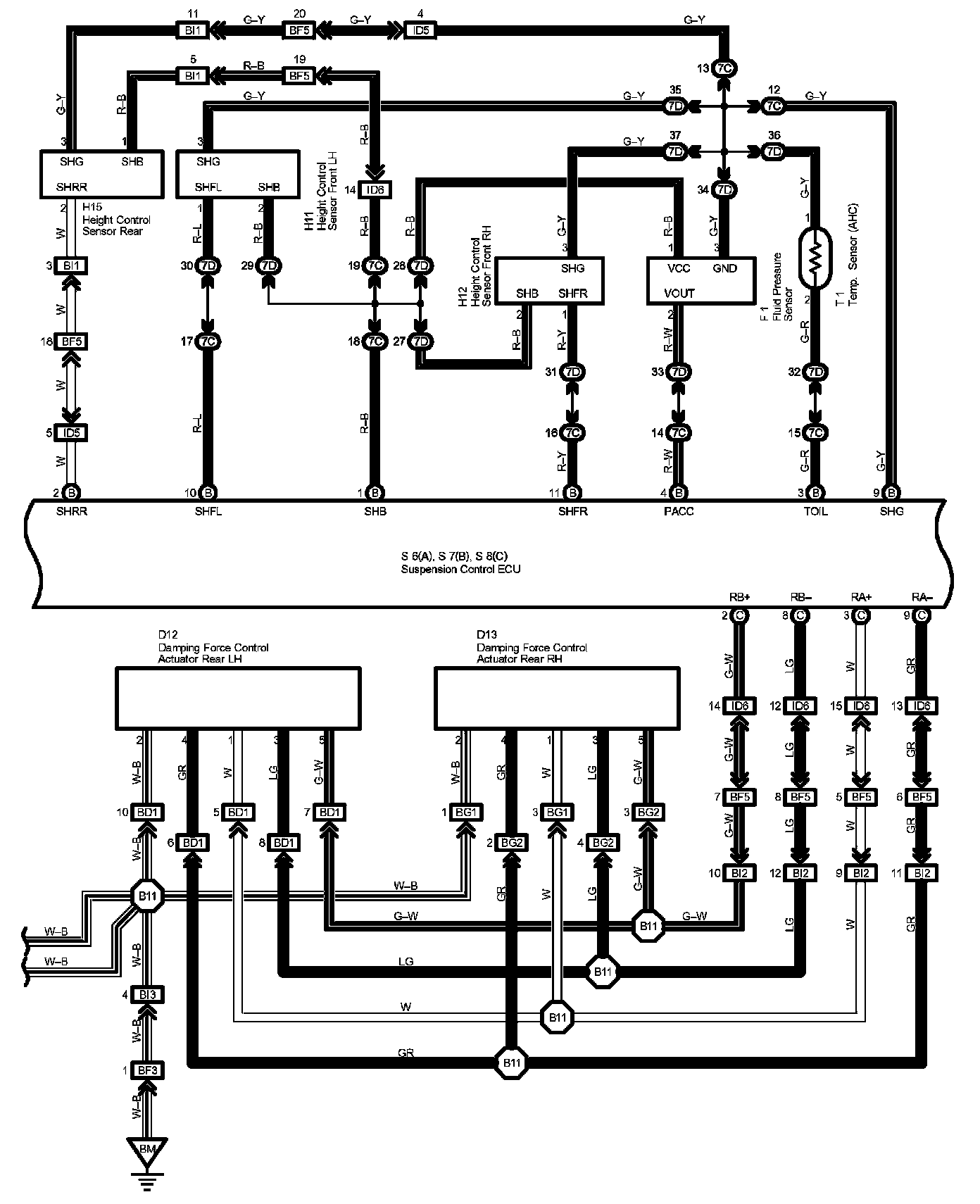

AHC And Adaptive Variable Suspension Part 2:

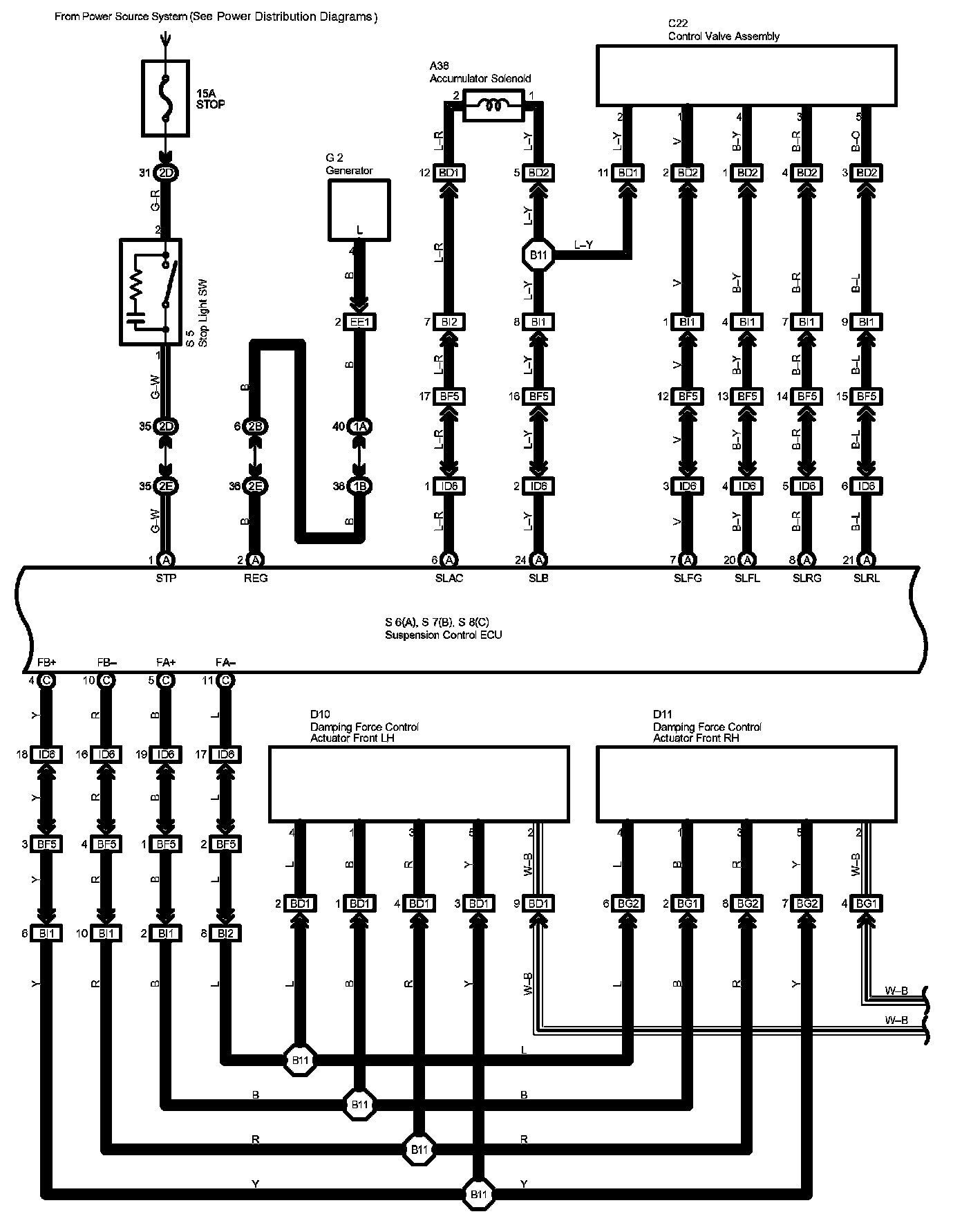

AHC And Adaptive Variable Suspension Part 3:

AHC And Adaptive Variable Suspension Part 4:

AHC And Adaptive Variable Suspension Part 5:

Diagram Legend Part 1:

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
