Home >> Lexus Truck >> 2005 >> LX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly >> Torque

Torque

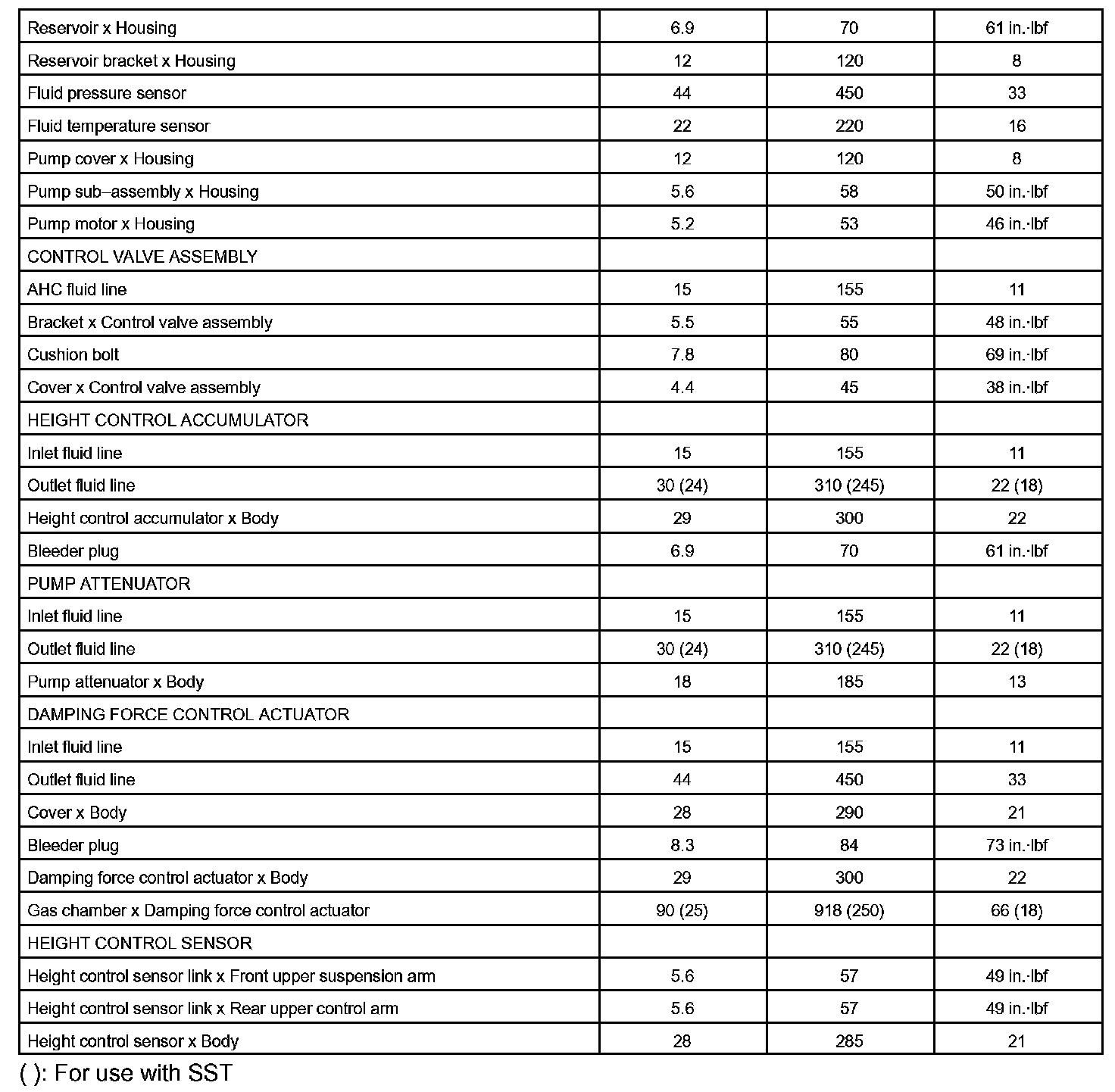

Suspension And Axle - Torque Specification Part 1:

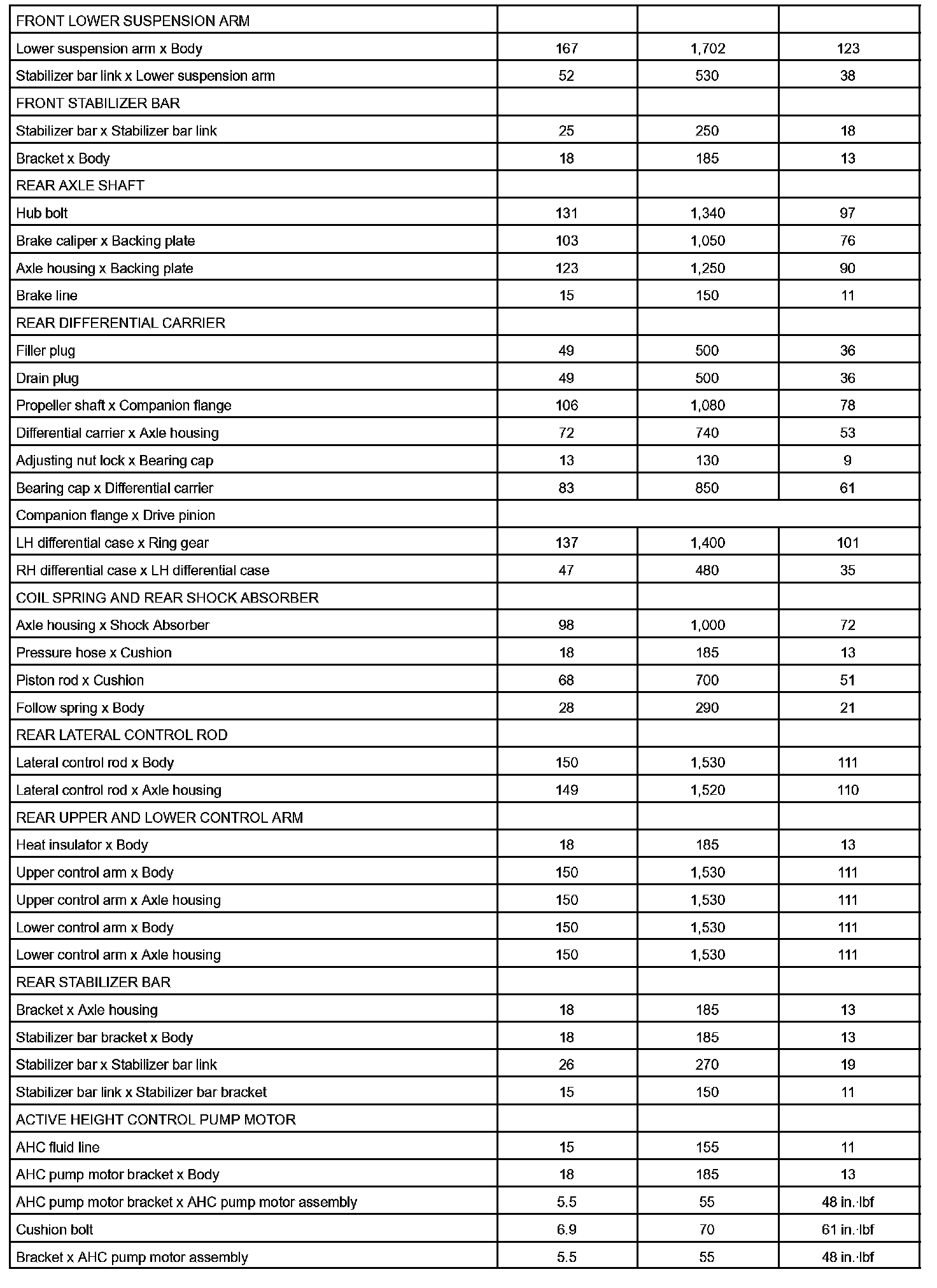

Suspension And Axle - Torque Specification Part 2:




Suspension And Axle - Torque Specification Part 3:





Suspension And Axle - Torque Specifications
