Symptom Related Diagnostic Procedures

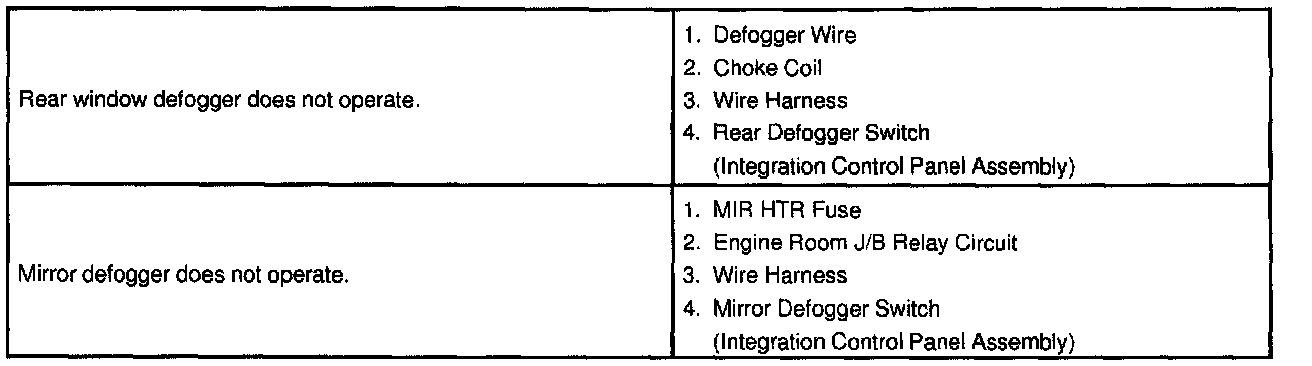

Problem Symptoms Table - Defogger System Part 1:

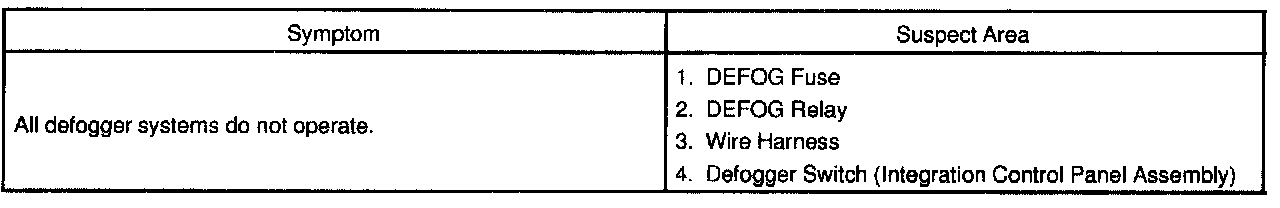

Problem Symptoms Table - Defogger System Part 2:
