B0101

DTC B0101 OPEN IN D SQUIB CIRCUIT

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assembly center, the spiral cable sub-assembly and the horn button assembly.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0101/14 is recorded when an open circuit is detected in the D squib circuit.

Wiring Diagram:

Step 1:

Step 2:

Step 3:

Step 4 - 5:

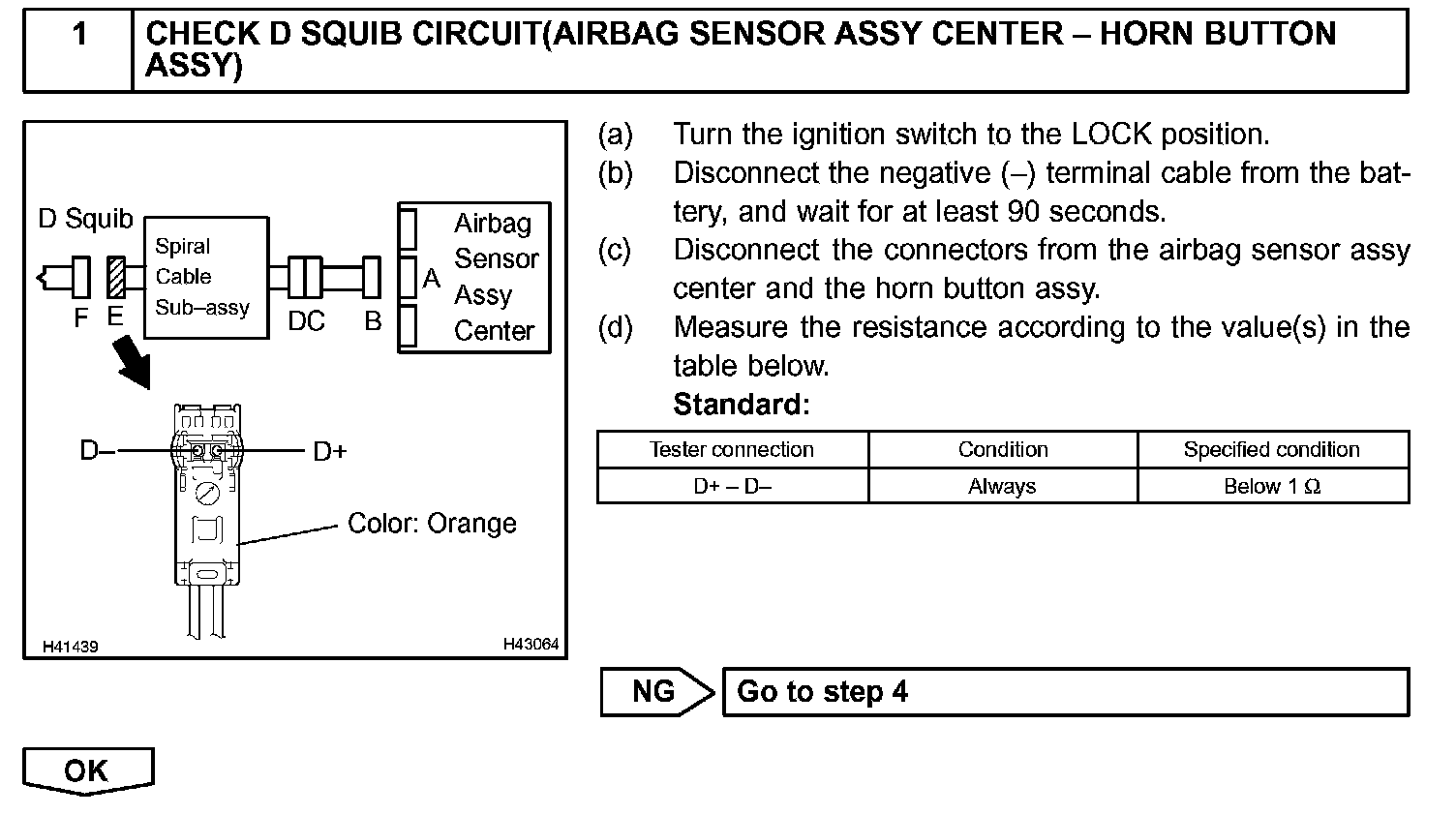

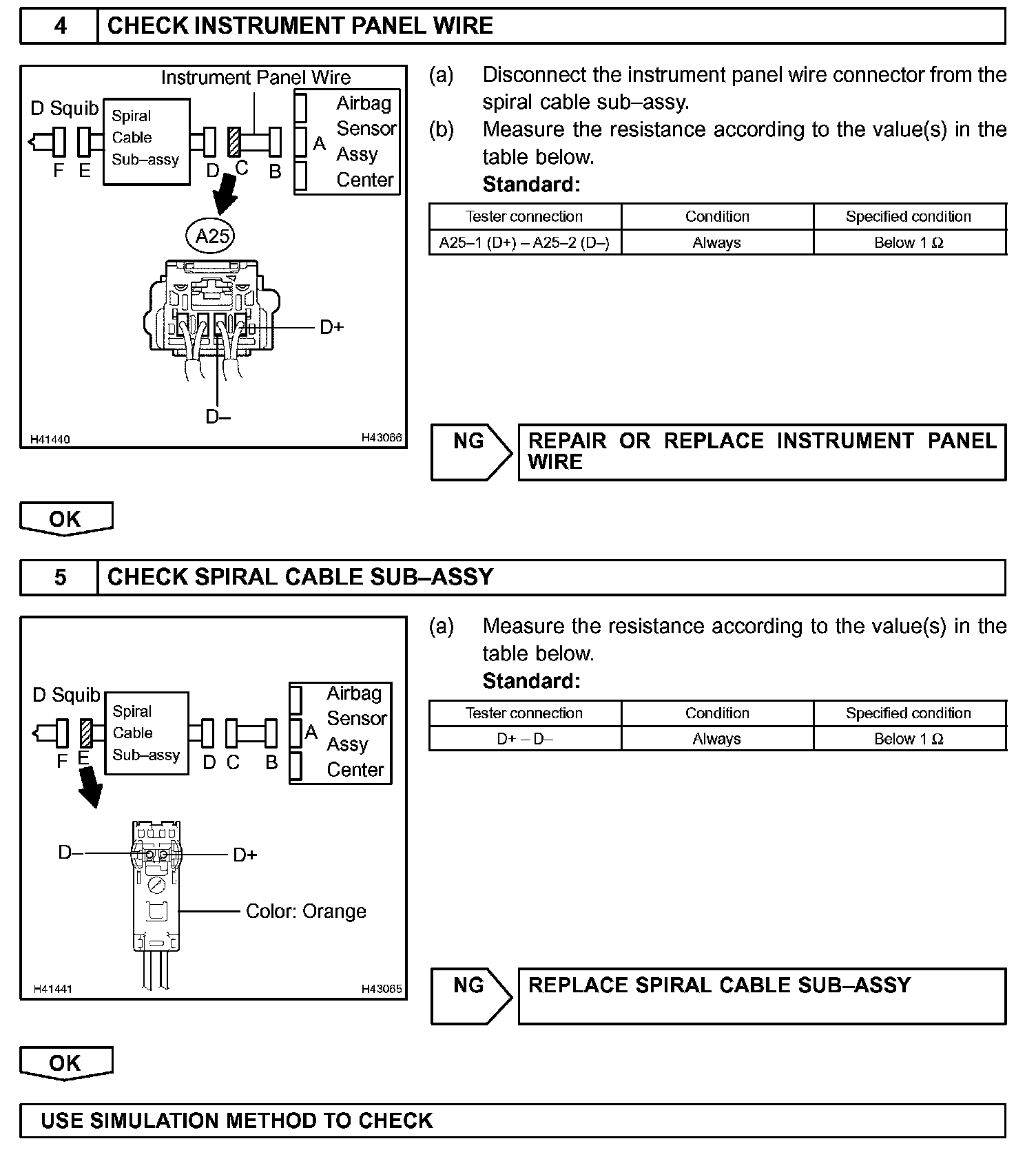

INSPECTION PROCEDURE
