B0105

DTC B0105 SHORT IN P SQUIB CIRCUIT

CIRCUIT DESCRIPTION

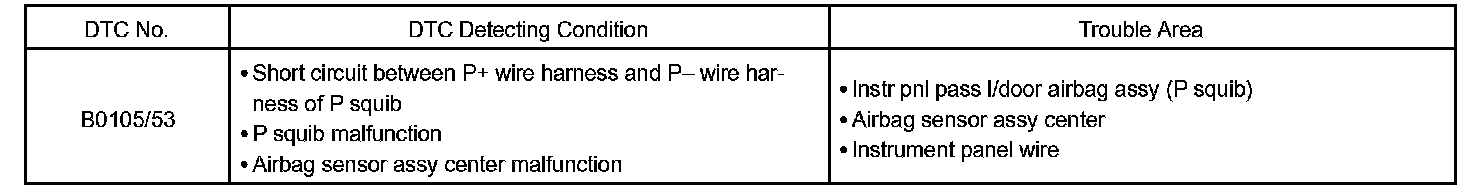

DTC Detecting Condition:

The P squib circuit consists of the airbag sensor assembly center and the instr pnl pass l/door airbag assembly.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0105/53 is recorded when a short circuit is detected in the P squib circuit.

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

INSPECTION PROCEDURE
