B0110

DTC B0110 SHORT IN SIDE SQUIB (RH) CIRCUIT

CIRCUIT DESCRIPTION

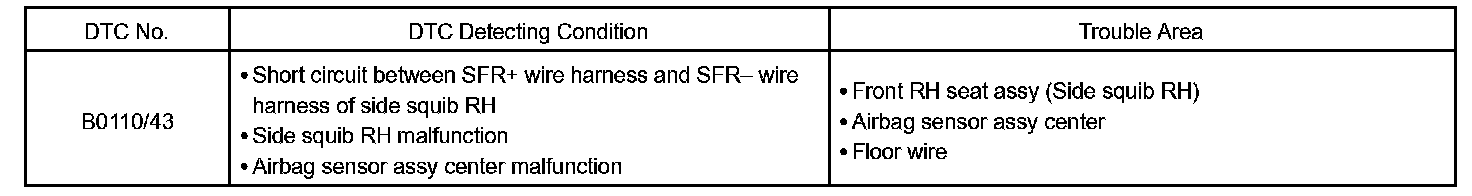

DTC Detecting Condition:

The side squib RH circuit consists of the airbag sensor assembly center and the front RH seat assembly (side squib RH).

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0110/43 is recorded when a short circuit is detected in the side squib RH circuit.

Wiring Diagram:

Step 1 - 2:

Step 3:

INSPECTION PROCEDURE
