B0113

DTC B0113 SHORT IN SIDE SQUIB (RH) CIRCUIT (TO B+)

CIRCUIT DESCRIPTION

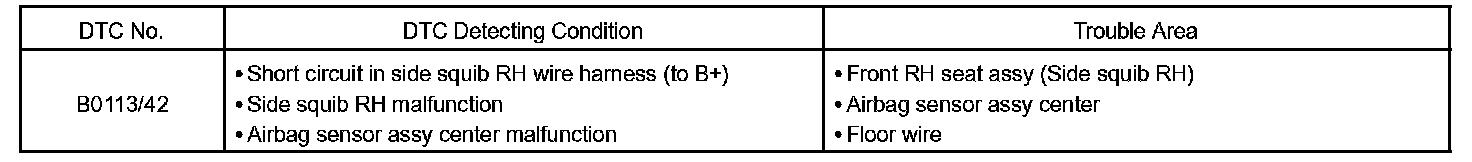

DTC Detecting Condition:

The side squib RH circuit consists of the airbag sensor assembly center and the front RH seat assembly (side squib RH).

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0113/42 is recorded when a short to B+ is detected in the side squib RH circuit.

Wiring Diagram:

Step 1:

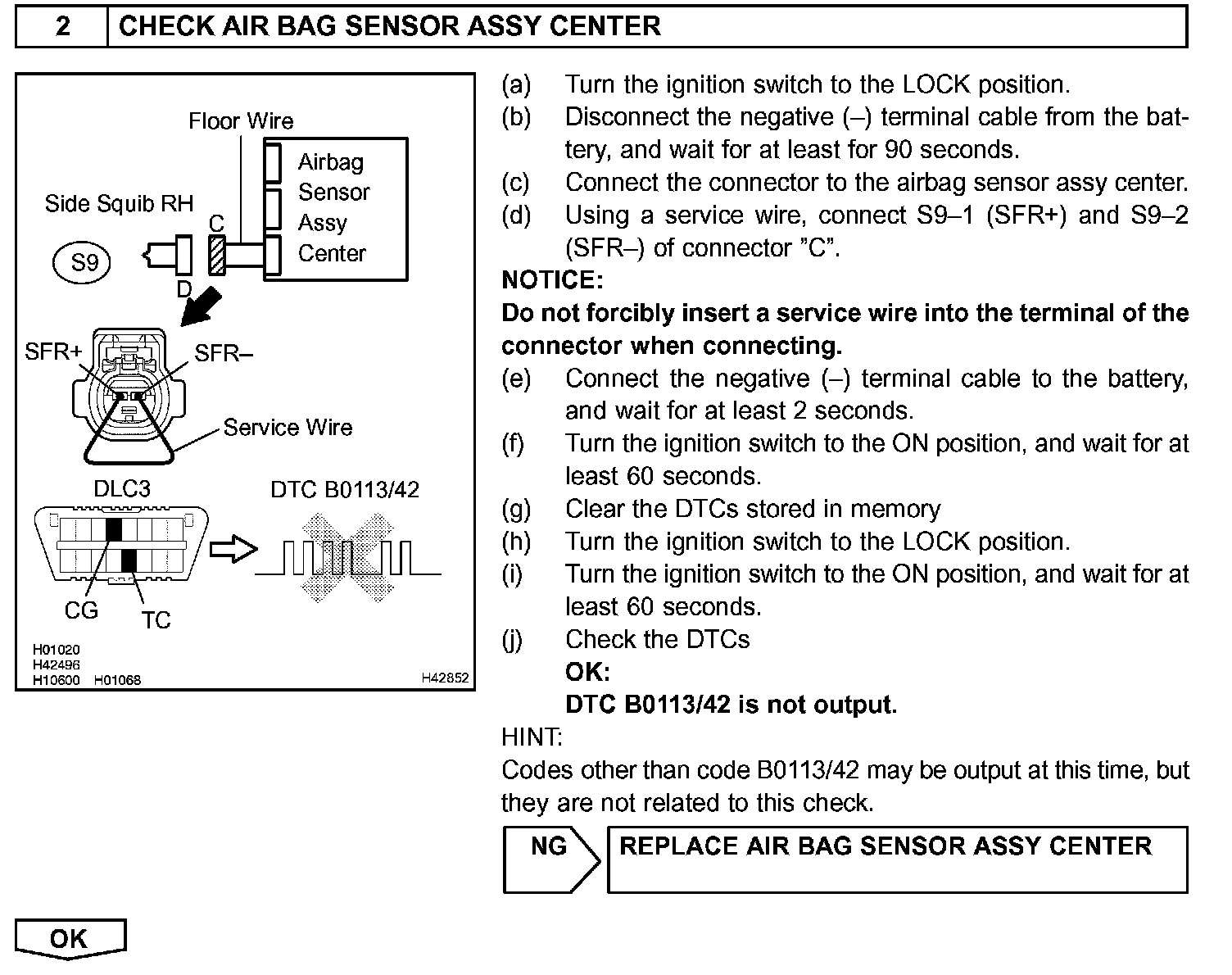

Step 2:

Step 3:

INSPECTION PROCEDURE
