B0117

DTC B0117 SHORT IN SIDE SQUIB (LH) CIRCUIT (TO GROUND)

CIRCUIT DESCRIPTION

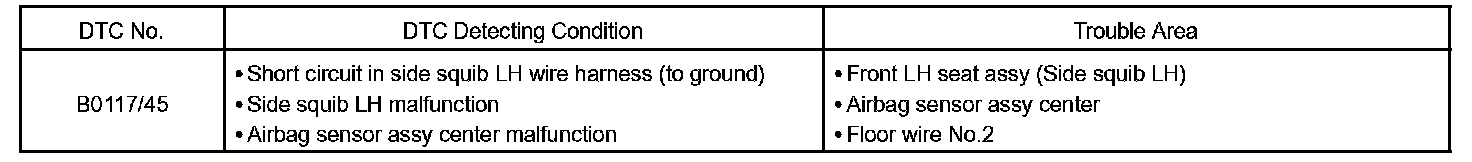

DTC Detecting Condition:

The side squib LH circuit consists of the airbag sensor assembly center and the front LH seat assembly (side squib LH).

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0117/45 is recorded when a short to ground is detected in the side squib LH circuit.

Wiring Diagram:

Step 1:

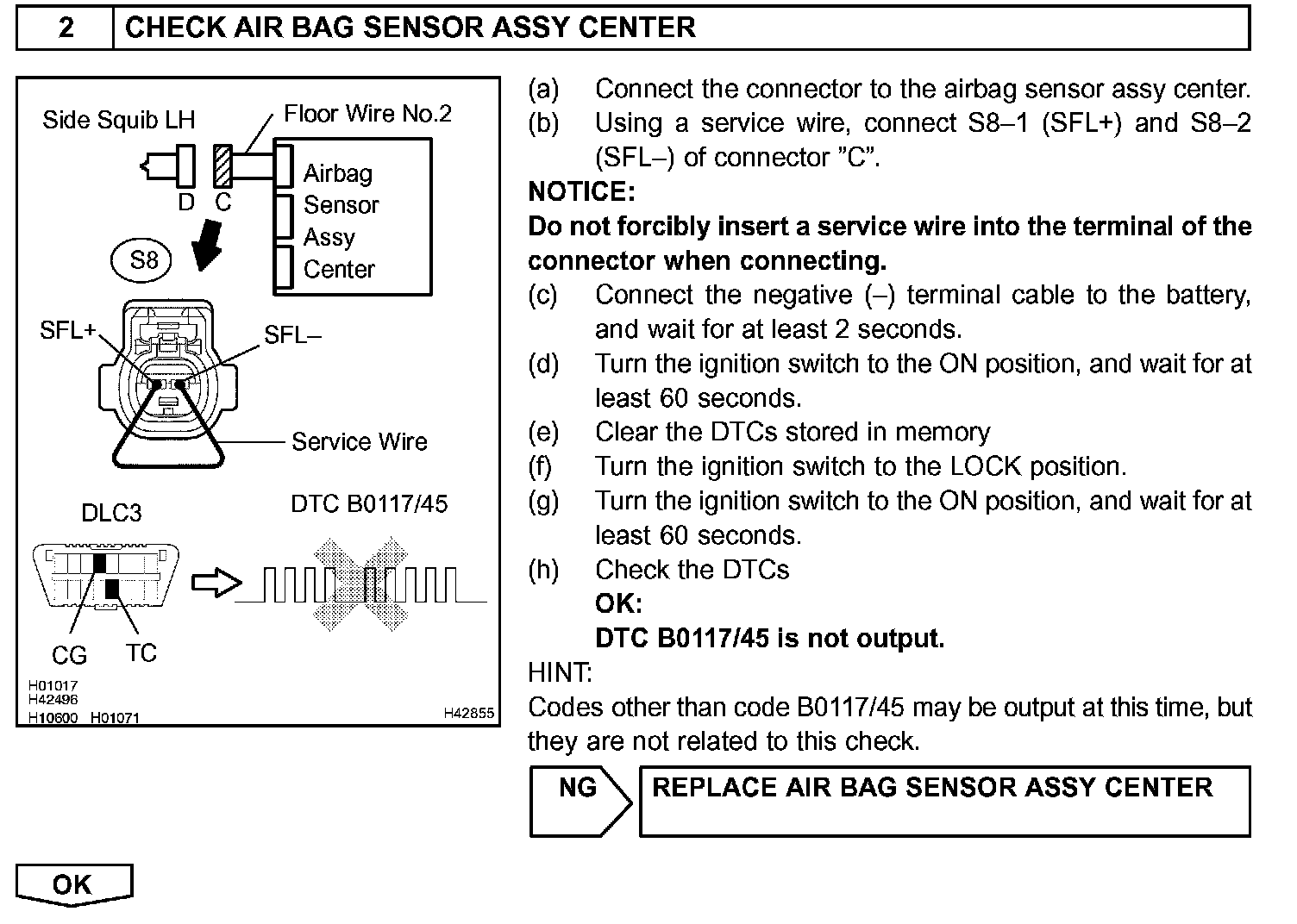

Step 2:

Step 3:

INSPECTION PROCEDURE
