B1100

DTC B1100 AIRBAG SENSOR ASSY CENTER MALFUNCTION

CIRCUIT DESCRIPTION

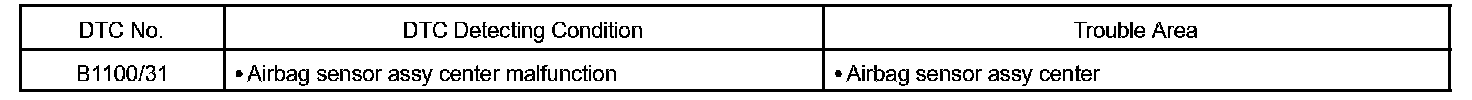

DTC Detecting Condition:

The airbag sensor assembly center consists of the airbag sensor, the safing sensor, the drive circuit, the diagnosis circuit and the ignition control, etc.

If the airbag sensor assembly center receives signals from the airbag sensor, it judges whether or not the SRS should be activated.

B1100/31 is recorded when a malfunction in the airbag sensor assembly center is detected.

HINT: When a malfunction code is displayed simultaneously with B1100/31, repair the malfunction indicated by this code (not B1100/31) first.

Step 1:

INSPECTION PROCEDURE
