B1152

DTC B1152 PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The passenger airbag ON/OFF indicator circuit consists of the airbag sensor assembly center and the passenger airbag ON/OFF indicator.

This circuit indicates the operation condition of the front passenger airbag assembly and the front seat airbag assembly RH and passenger side seat belt pretensioner.

DTC B1152/28 is recorded when a malfunction is detected in the passenger airbag ON/OFF indicator circuit.

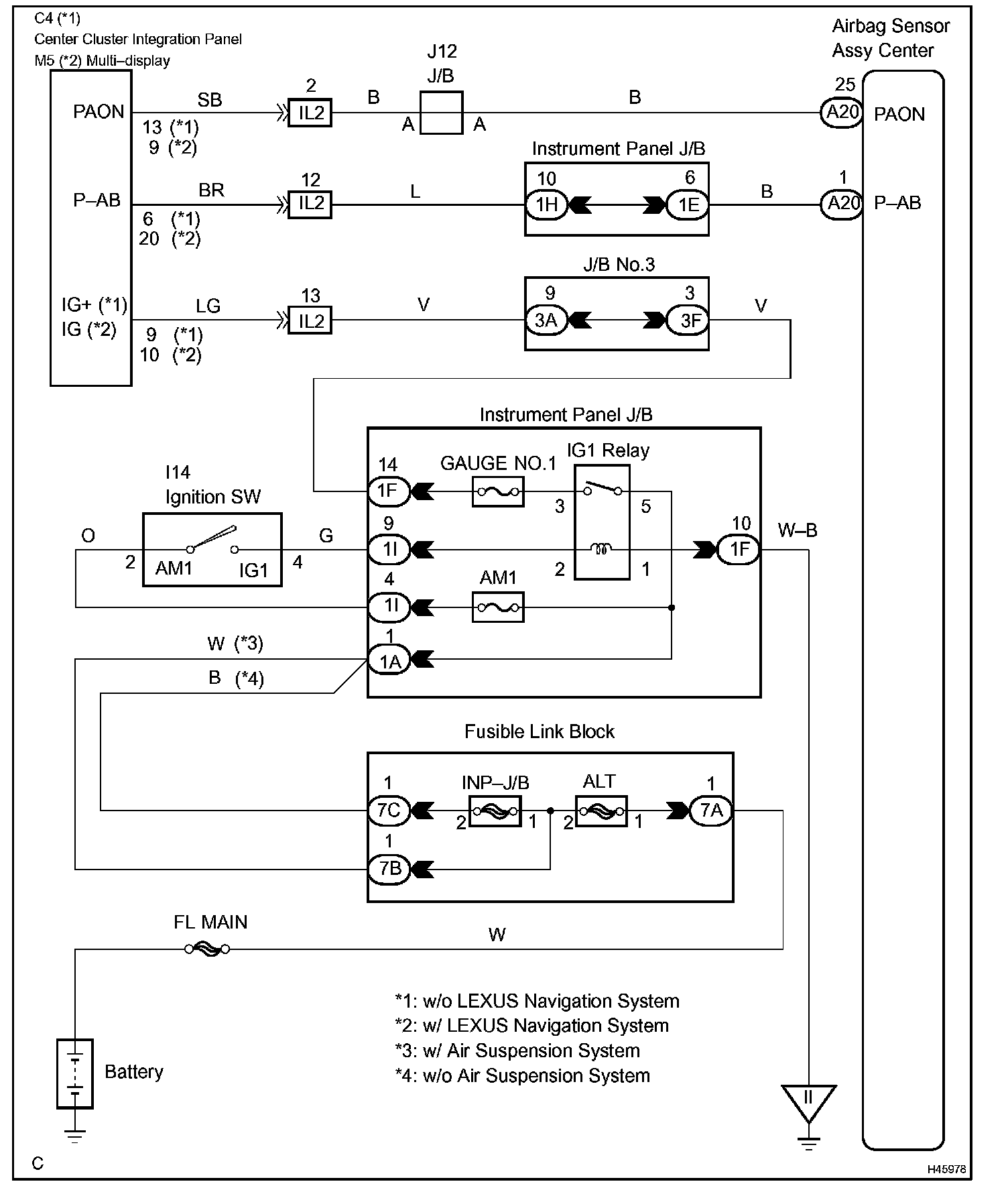

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

Step 5:

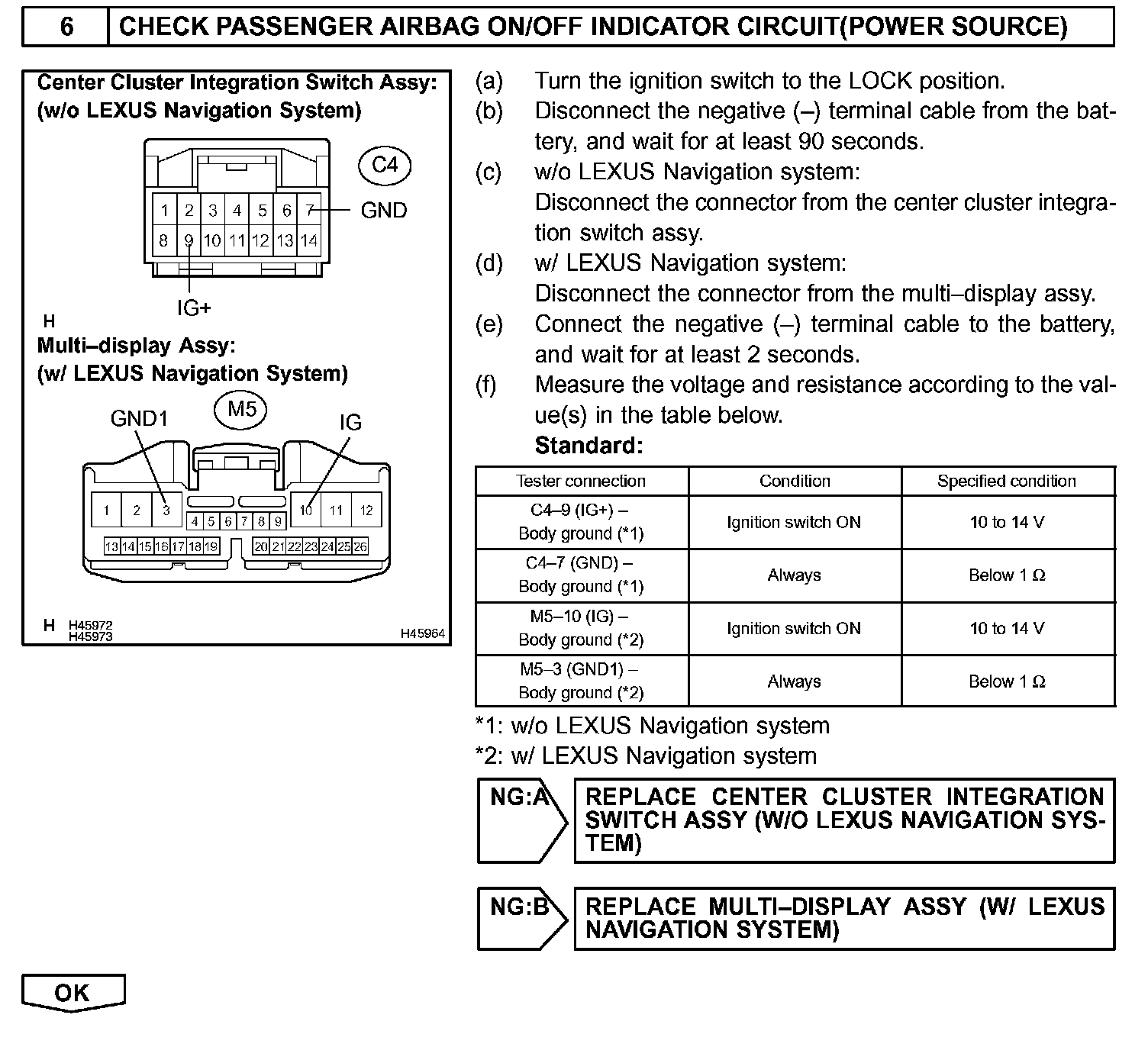

Step 6:

Step 7 - 8:

Step 9 - 10:

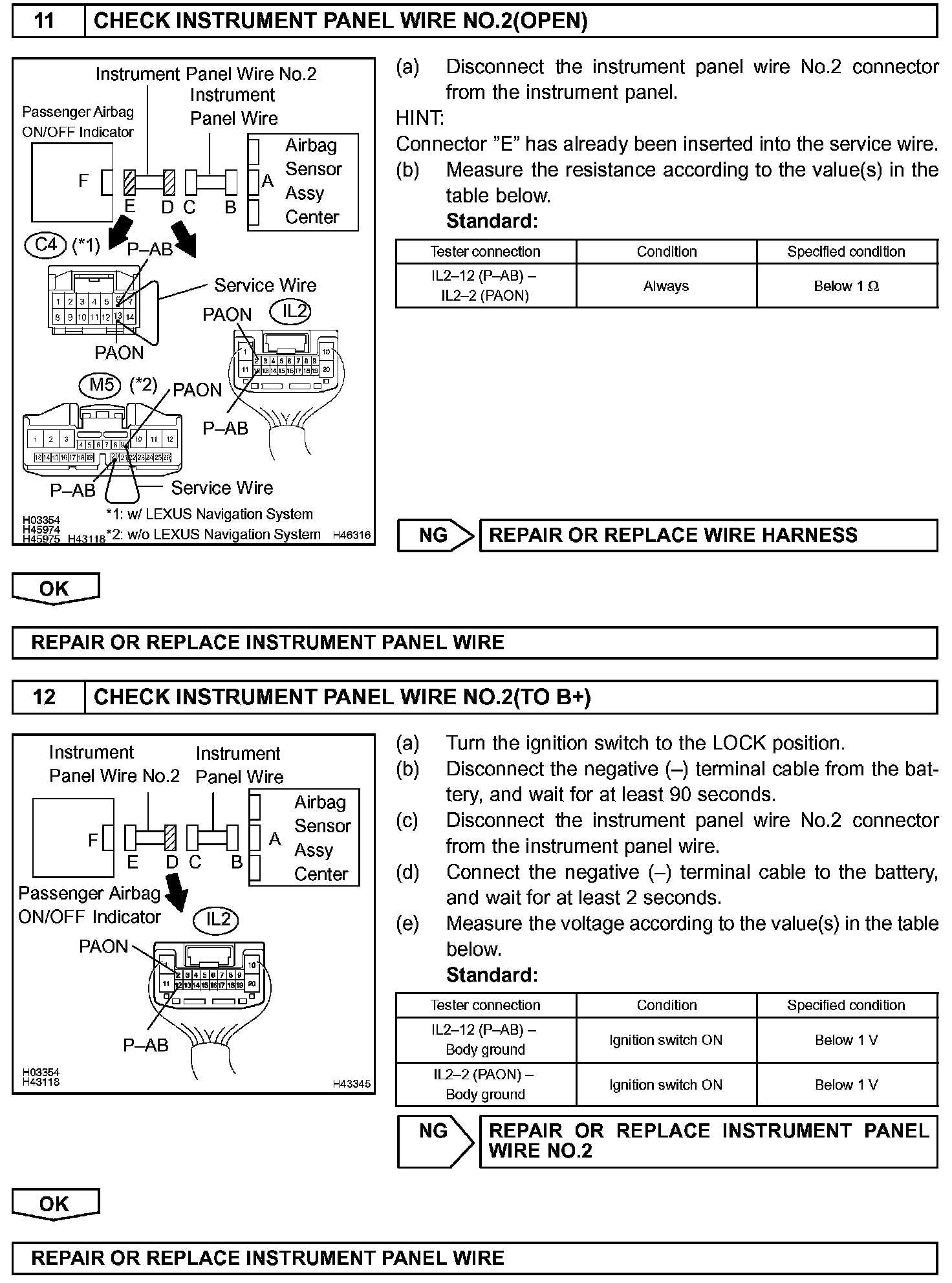

Step 11 - 12:

INSPECTION PROCEDURE
