B1162

DTC B1162 SHORT IN CURTAIN SHIELD SQUIB (RH) CIRCUIT (TO GROUND)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The curtain shield squib RH circuit consists of the airbag sensor assembly center and the curtain shield airbag assembly RH.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1162/81 is recorded when a short to ground is detected in the curtain shield squib RH circuit.

Wiring Diagram:

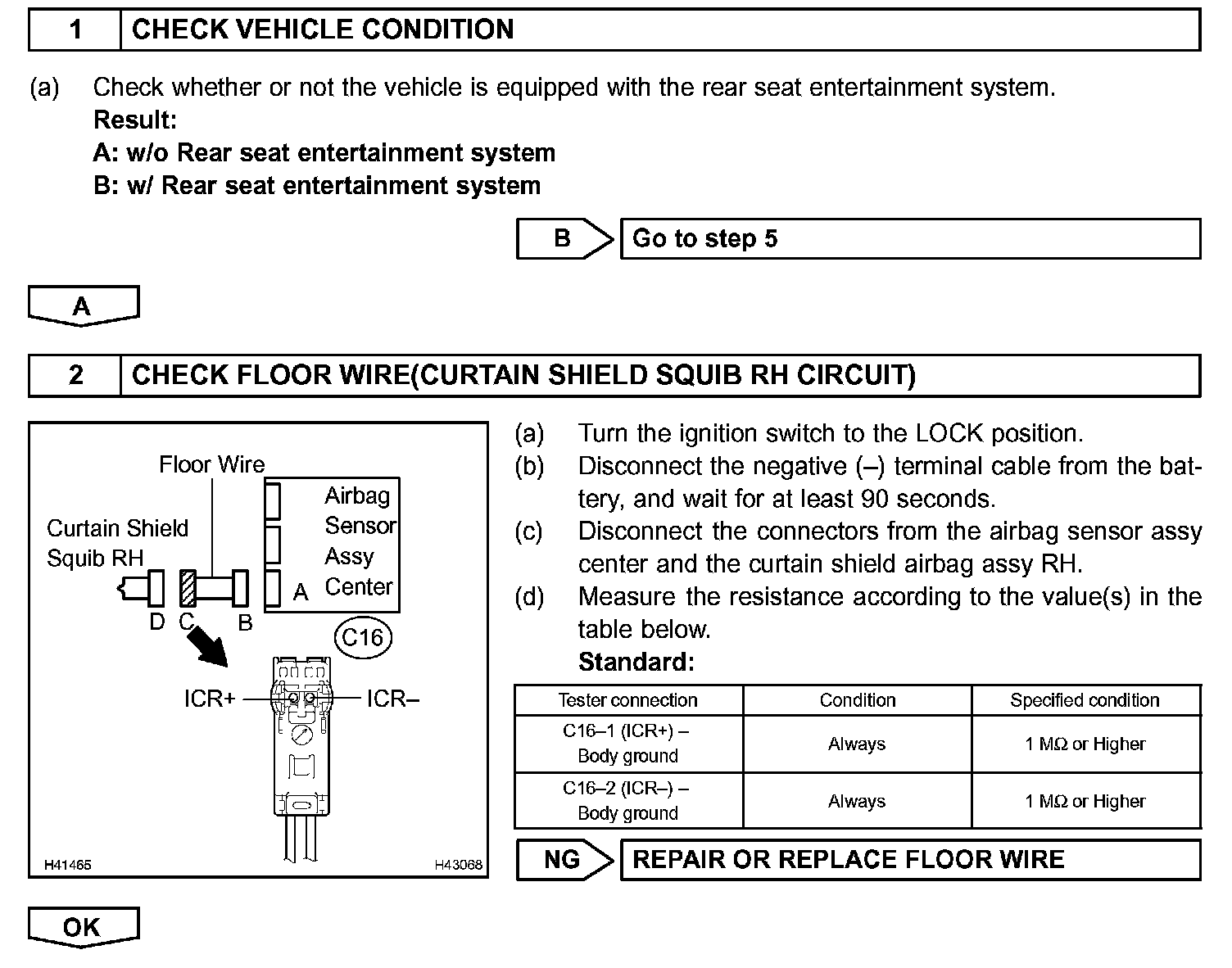

Step 1 - 2:

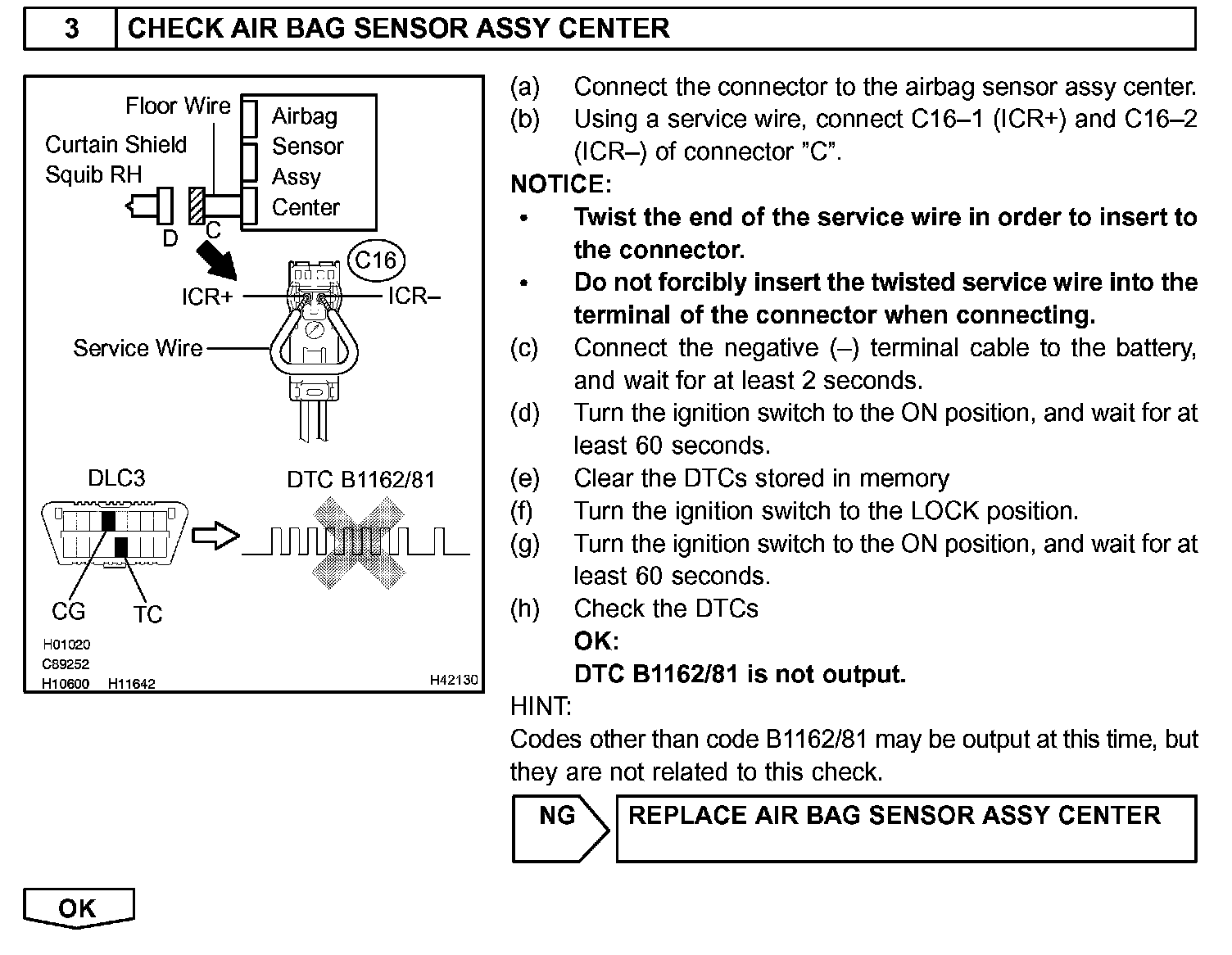

Step 3:

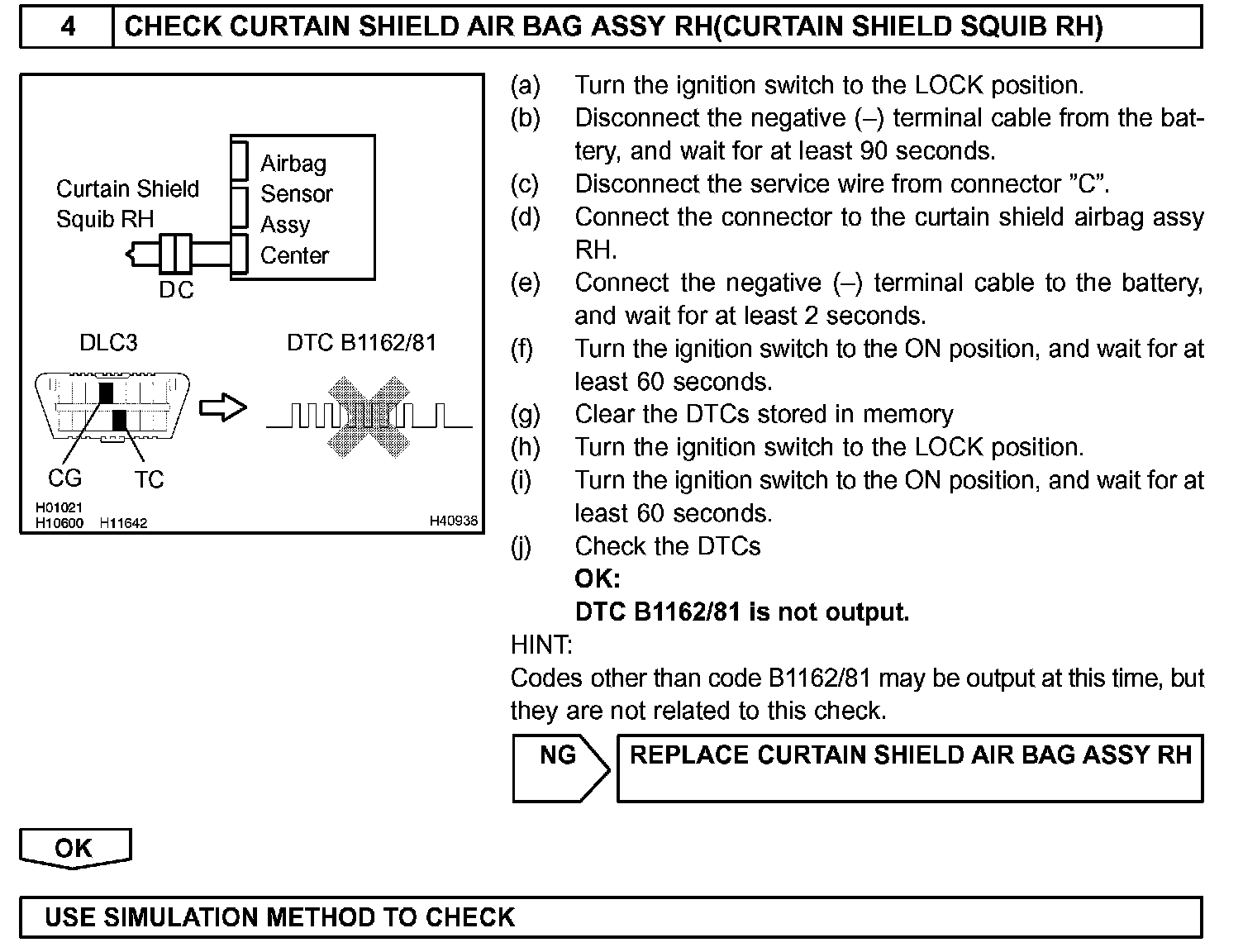

Step 4:

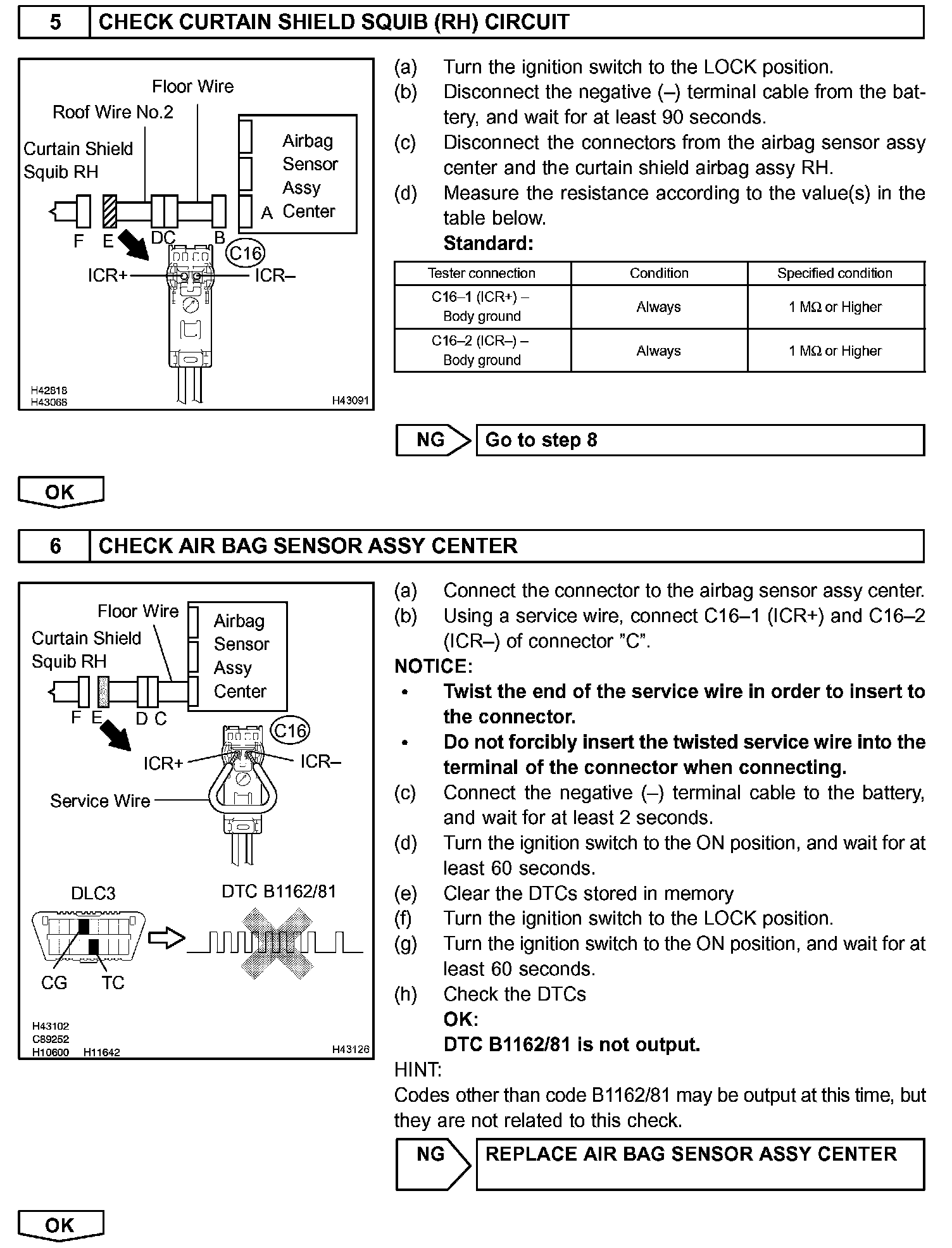

Step 5 - 6:

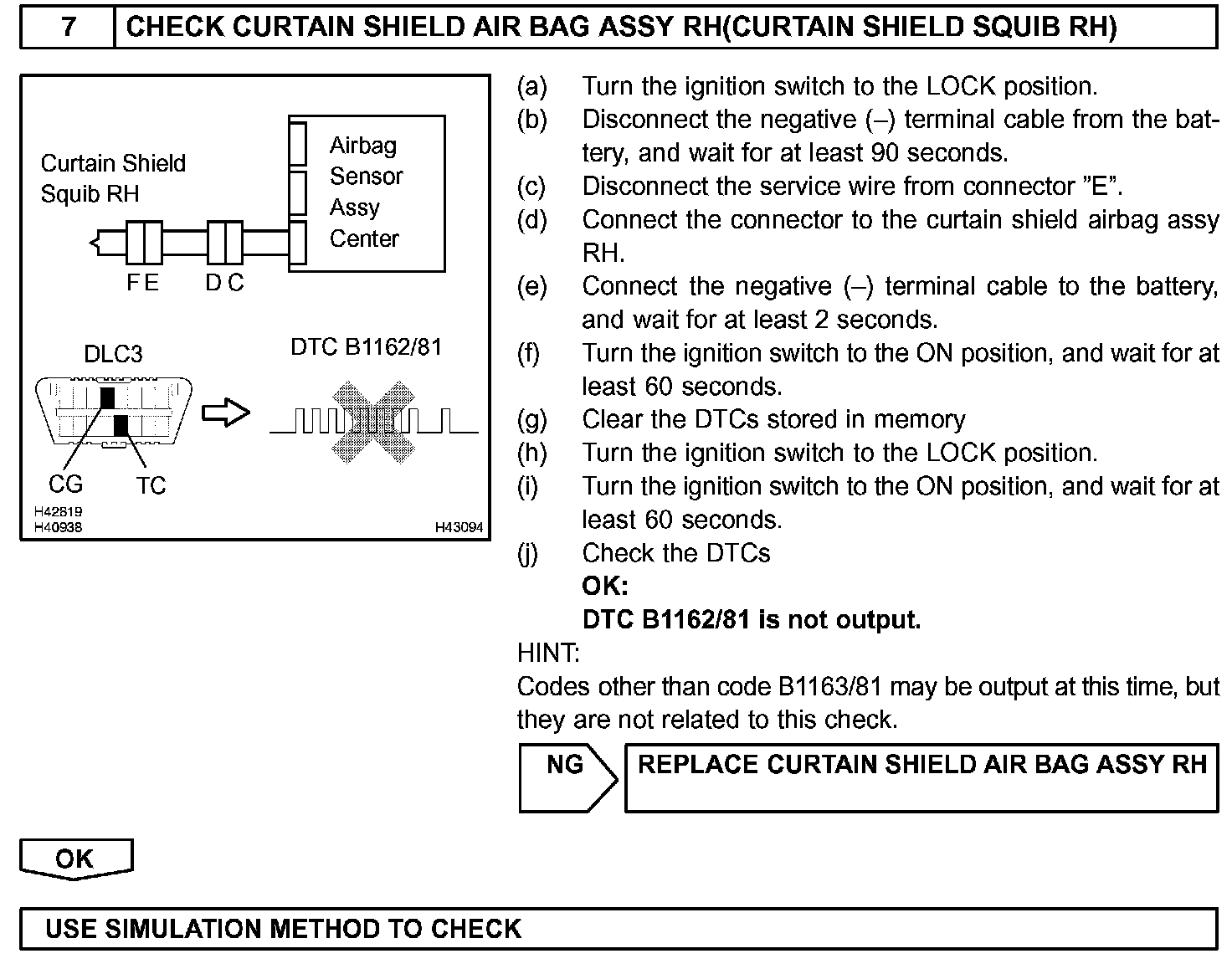

Step 7:

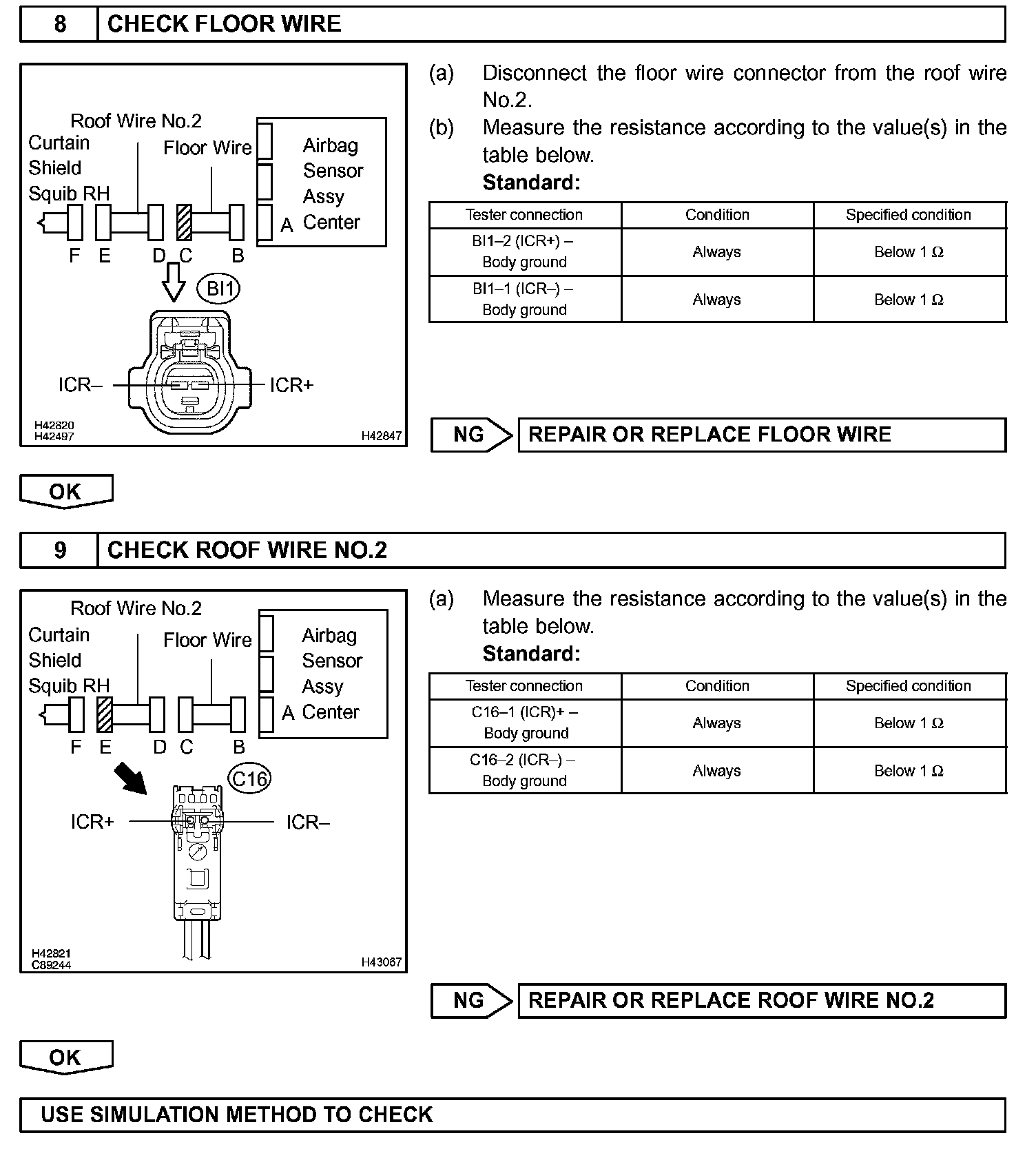

Step 8 - 9:

INSPECTION PROCEDURE
