B1168

DTC B1168 SHORT IN CURTAIN SHIELD SQUIB (LH) CIRCUIT (TO B+)

CIRCUIT DESCRIPTION

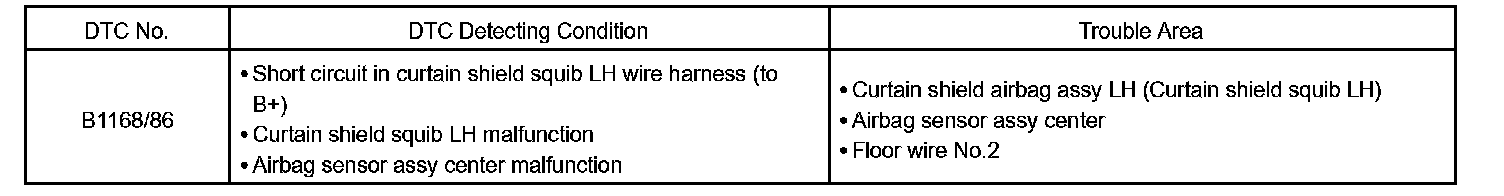

DTC Detecting Condition:

The curtain shield squib LH circuit consists of the airbag sensor assembly center and the curtain shield airbag assembly LH.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1168/86 is recorded when a short to B+ is detected in the curtain shield squib LH circuit.

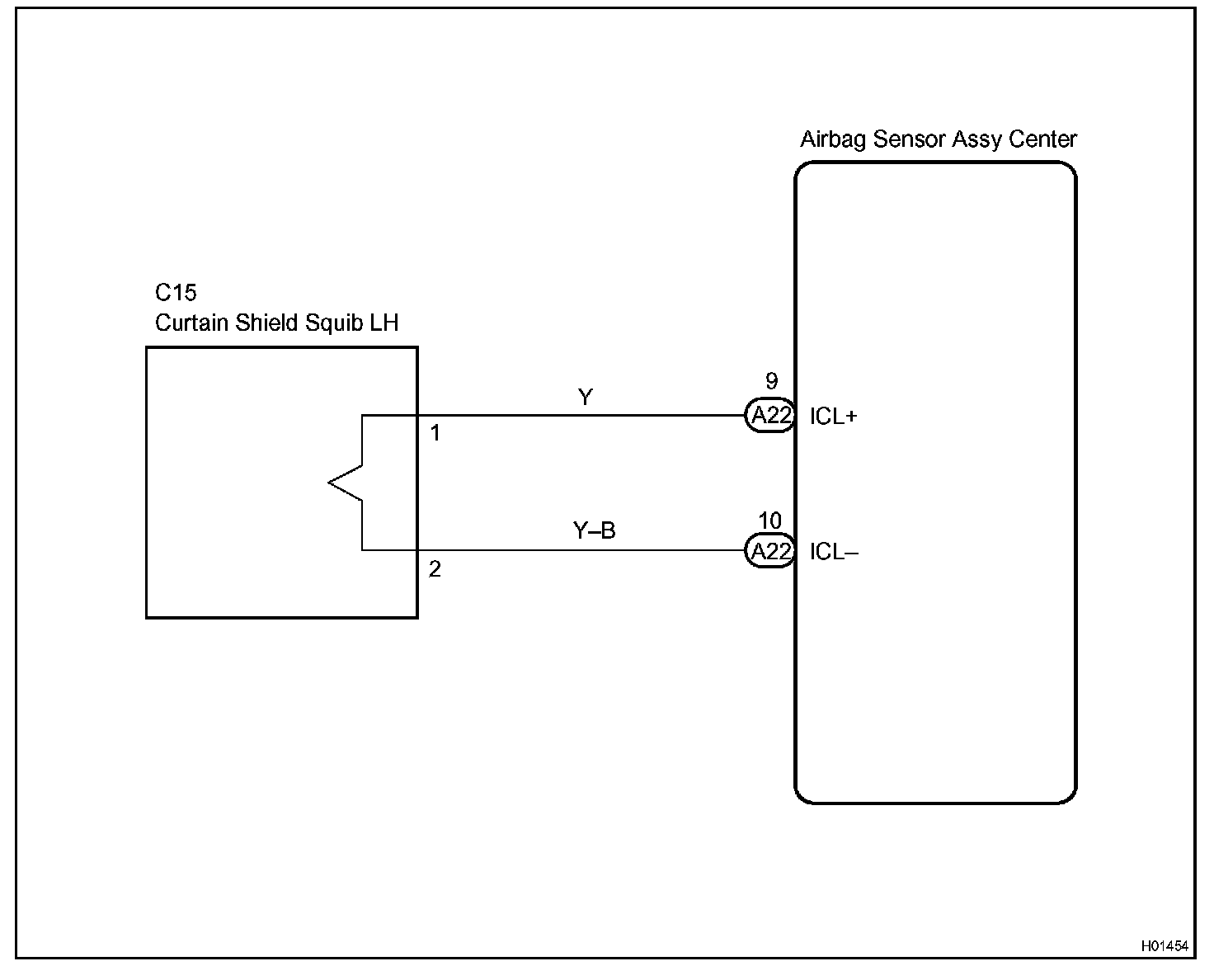

Wiring Diagram:

Step 1:

Step 2:

Step 3:

INSPECTION PROCEDURE
