B1181

DTC B1181 OPEN IN D SQUIB (2ND STEP) CIRCUIT

CIRCUIT DESCRIPTION

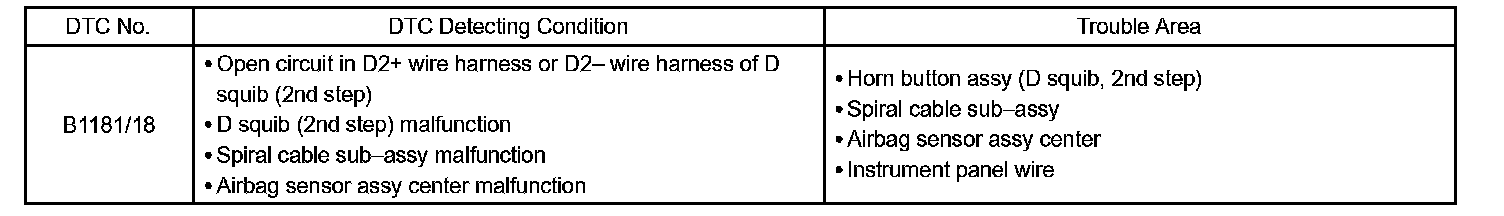

DTC Detecting Condition:

The D squib (2nd step) circuit consists of the airbag sensor assembly center, the spiral cable sub-assembly and the horn button assembly.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1181/18 is recorded when an open circuit is detected in the D squib (2nd step) circuit.

Wiring Diagram:

Step 1:

Step 2:

Step 3:

Step 4 - 5:

INSPECTION PROCEDURE
