B1185

DTC B1185 SHORT IN P SQUIB (2ND STEP) CIRCUIT

CIRCUIT DESCRIPTION

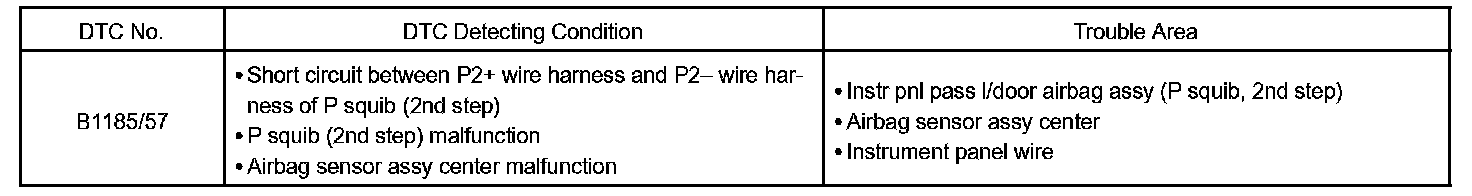

DTC Detecting Condition:

The P squib (2nd step) circuit consists of the airbag sensor assembly center and the instr pnl pass l/door airbag assembly.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1185/57 is recorded when a short circuit is detected in the P squib (2nd step) circuit.

Wiring Diagram:

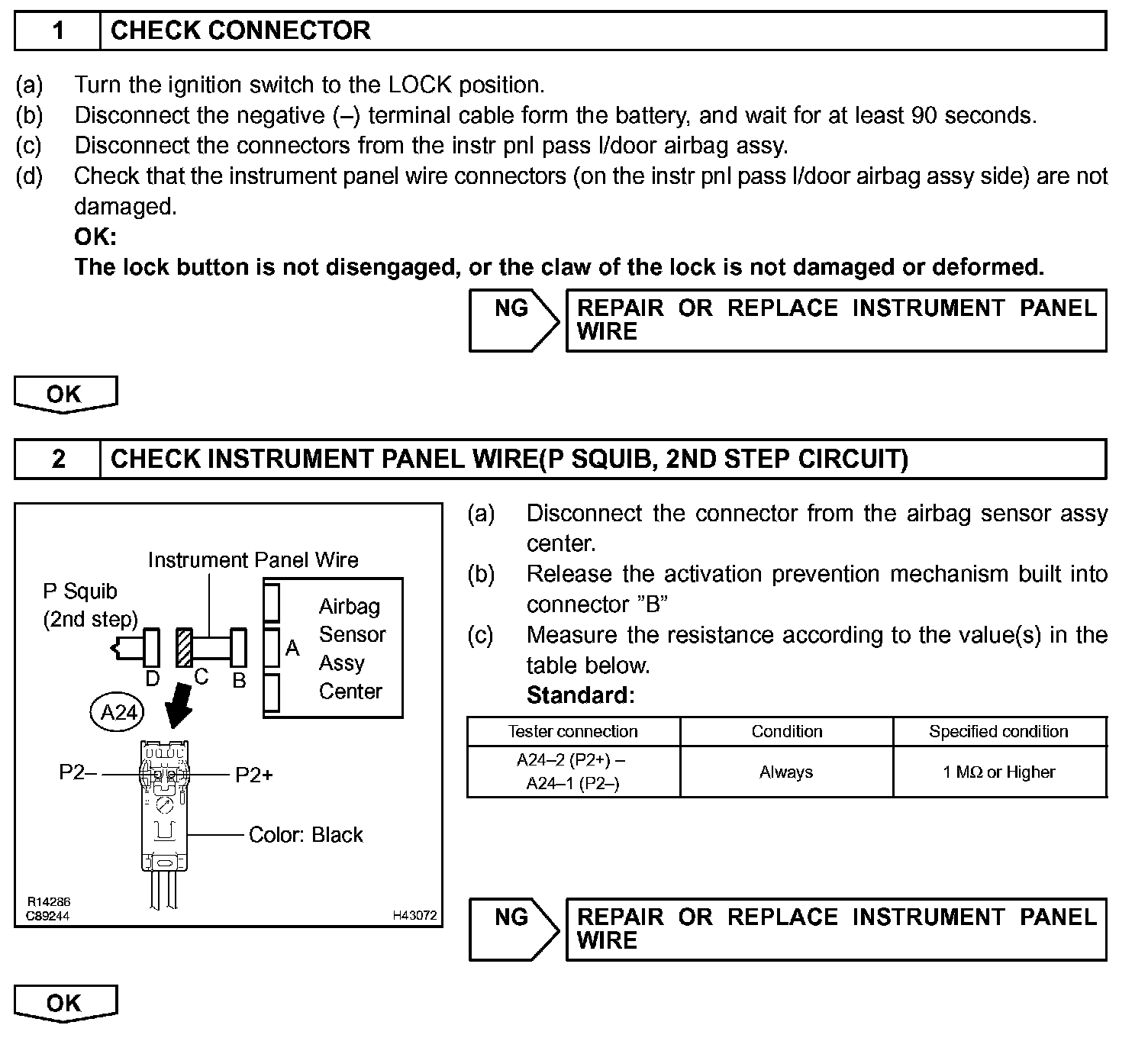

Step 1 - 2:

Step 3:

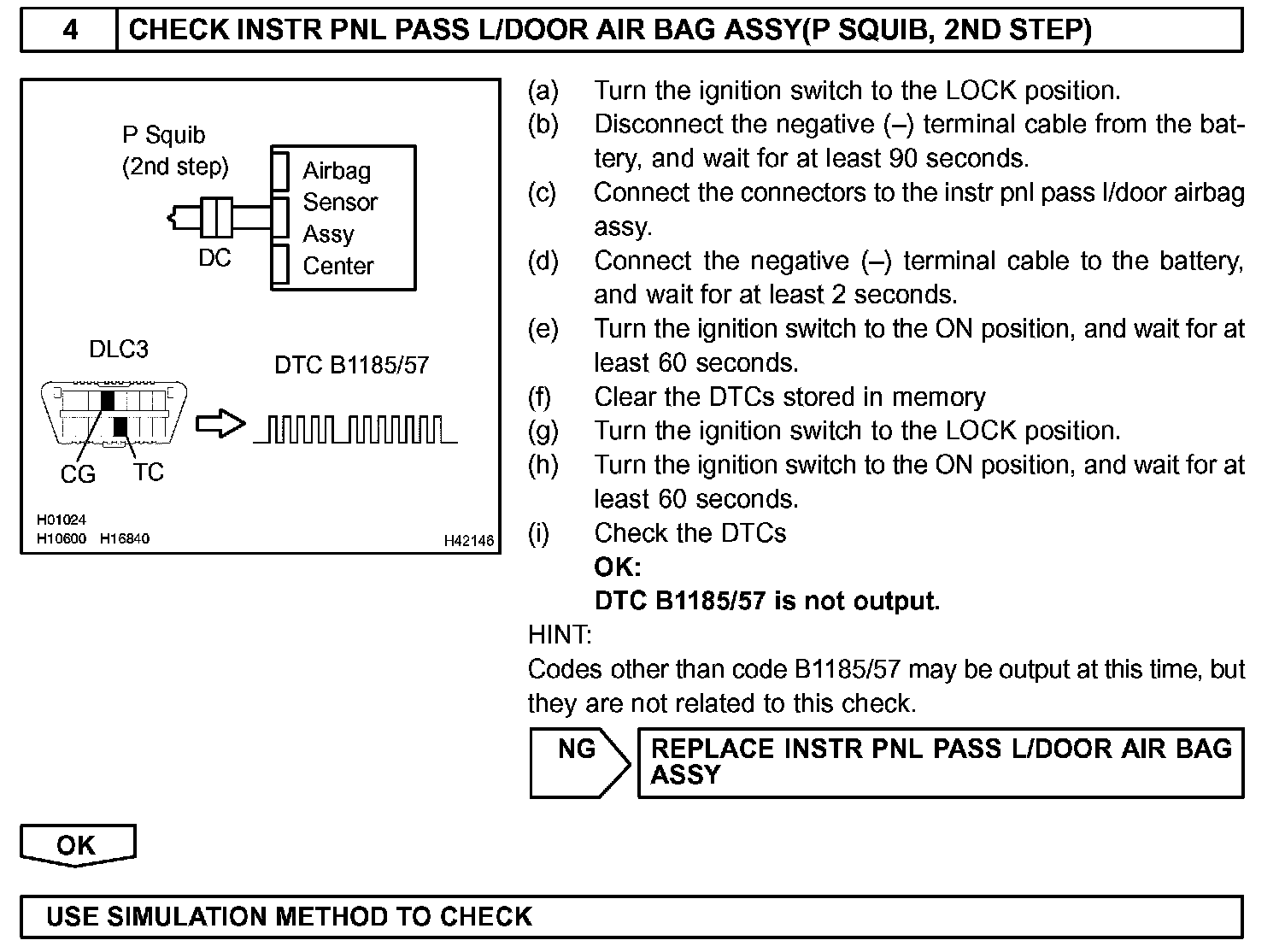

Step 4:

INSPECTION PROCEDURE
