B1186

DTC B1186 OPEN IN P SQUIB (2ND STEP) CIRCUIT

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The P squib (2nd step) circuit consists of the airbag sensor assembly center and the instr pnl pass l/door airbag assembly.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1186/58 is recorded when an open circuit is detected in the P squib (2nd step) circuit.

Wiring Diagram:

Step 1:

Step 2:

Step 3:

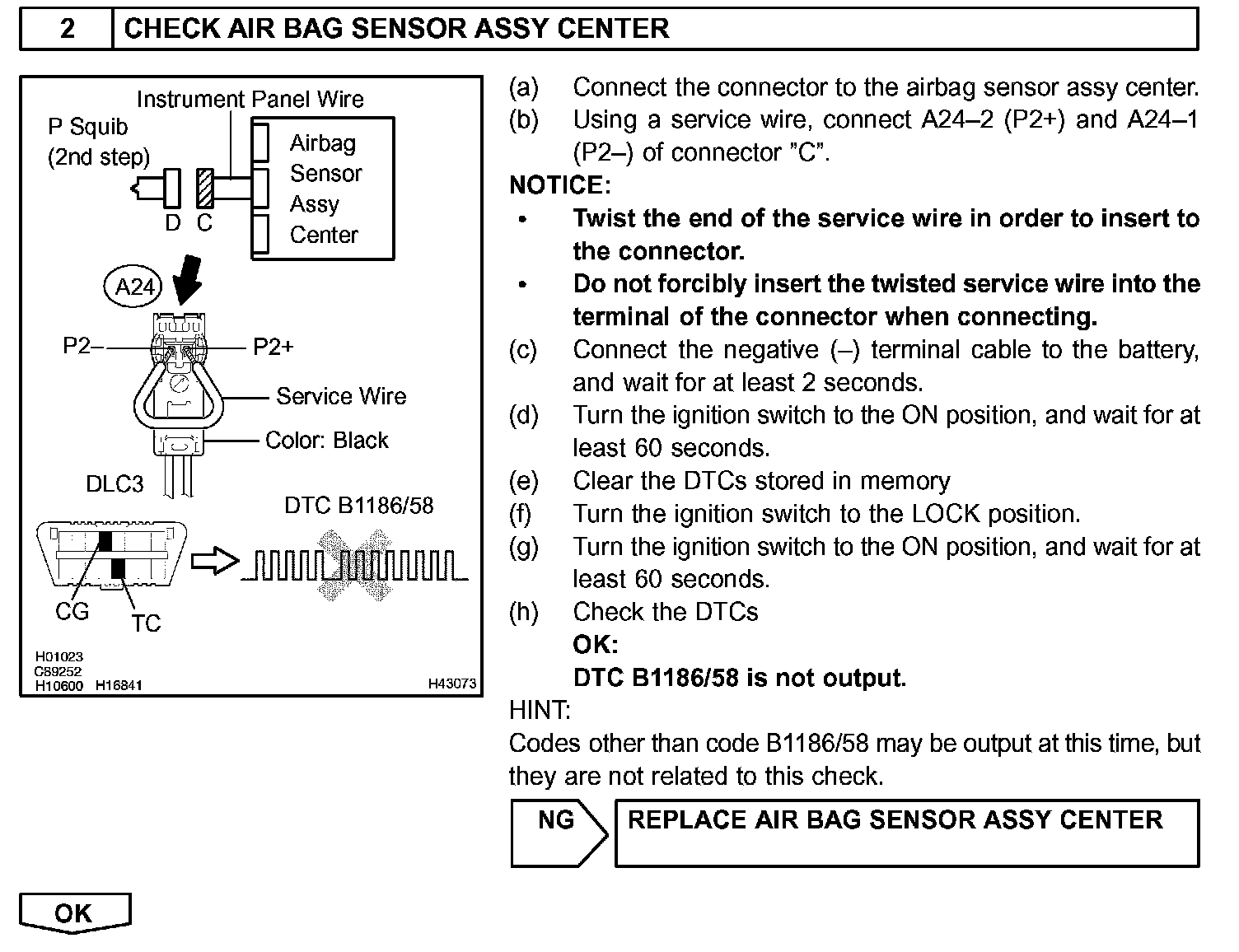

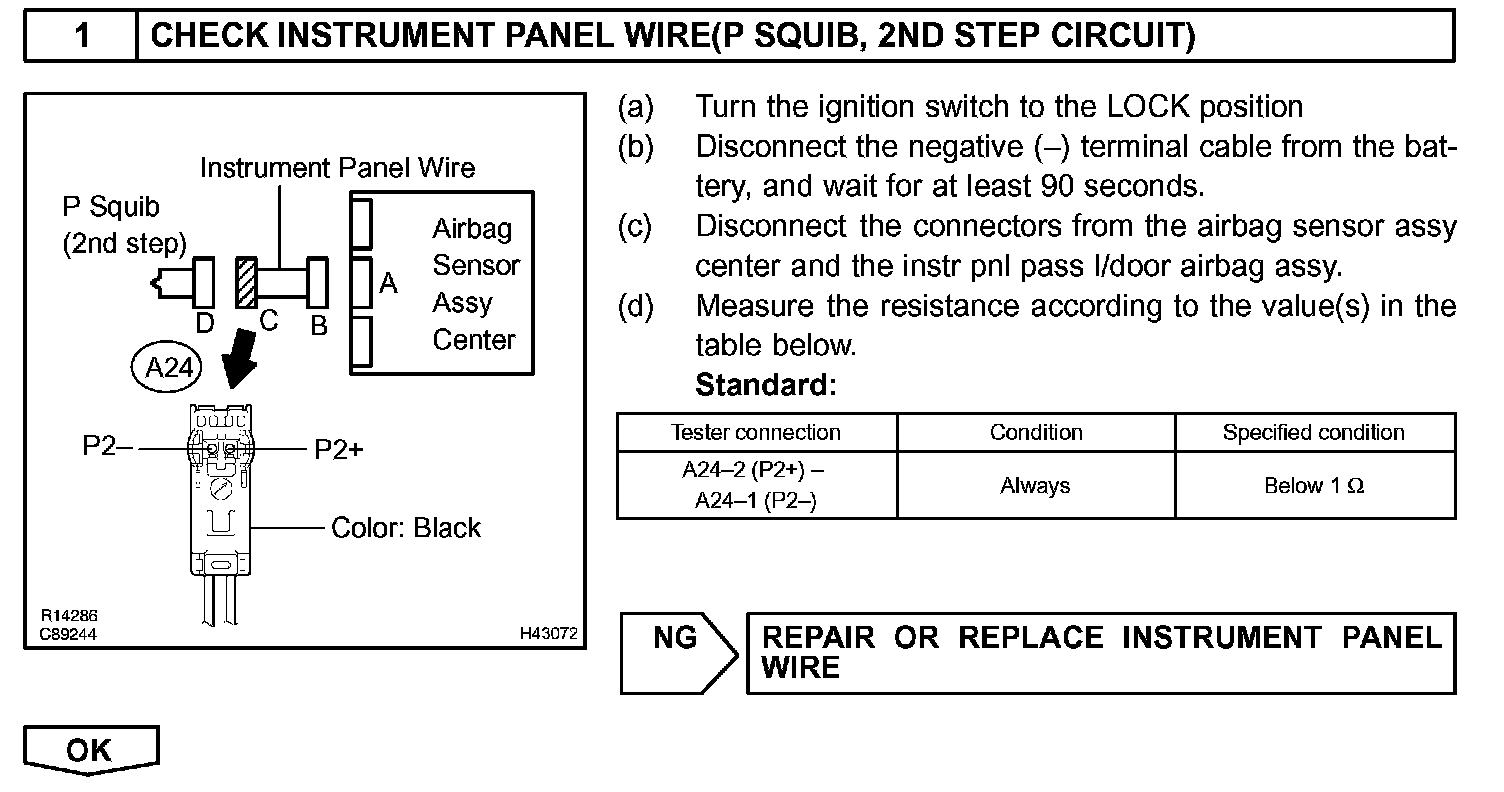

INSPECTION PROCEDURE
