B1796

DTC B1796 SLEEP OPERATION FAILURE OF OCCUPANT CLASSIFICATION ECU

CIRCUIT DESCRIPTION

DTC Detecting Condition:

During sleep mode, the occupant classification ECU reads the condition of each sensor while the ignition switch is off. In this mode, if occupant classification ECU detects an internal malfunction, DTC B1796 is output.

HINT: When DTC B1150/23 is detected as a result of troubleshooting for the supplemental restraint system, perform troubleshooting for the DTC B1796 of the occupant classification ECU.

Step 1:

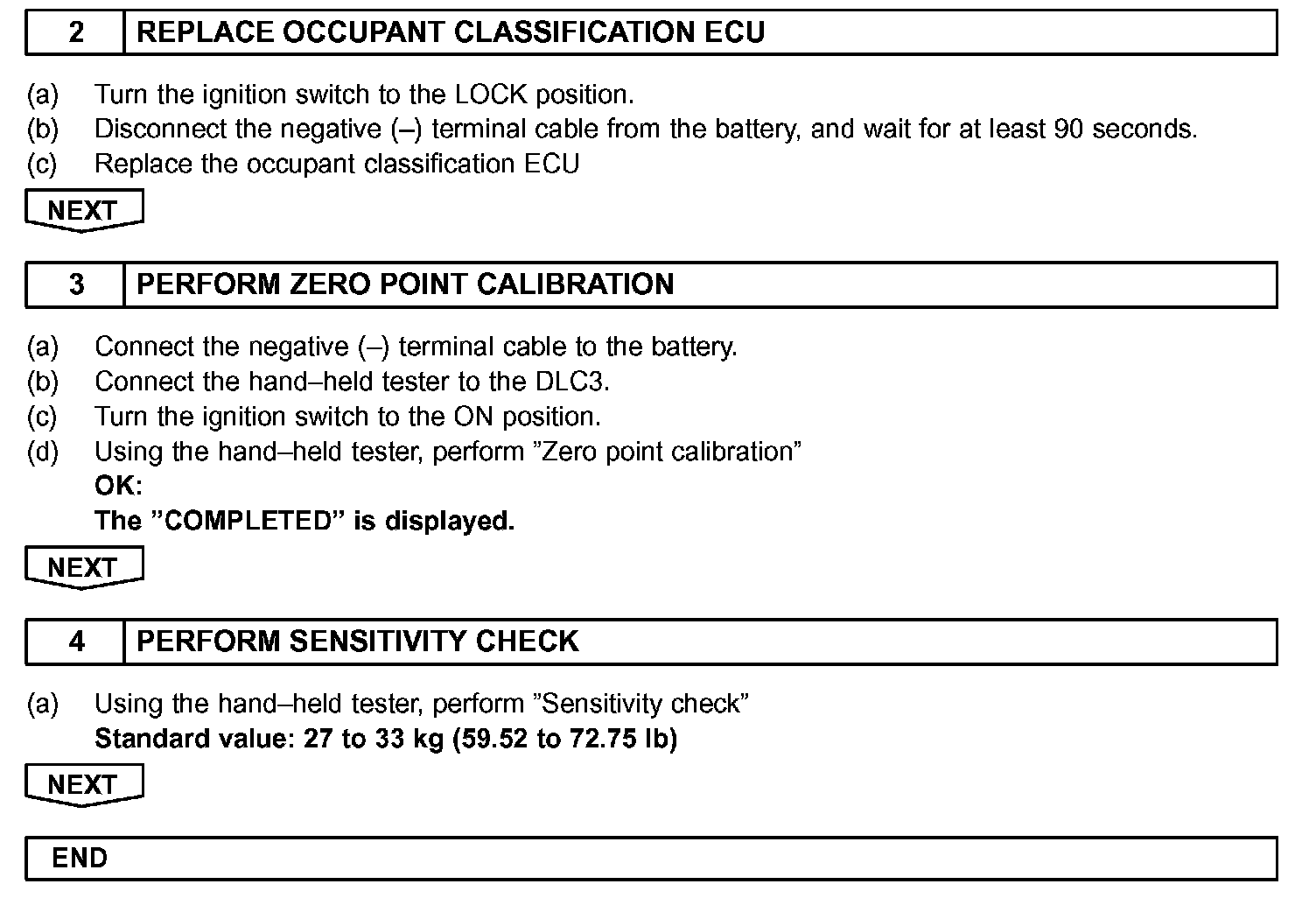

Step 2 - 4:

INSPECTION PROCEDURE
