B2215

DTC B2215 BACK DOOR CLOSER SWITCH MALFUNCTION

CIRCUIT DESCRIPTION

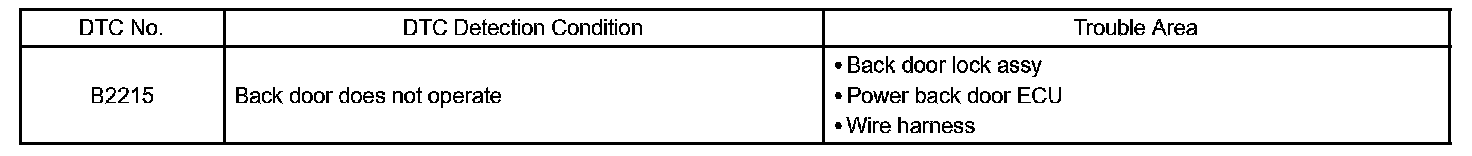

DTC Detection Condition:

This DTC is output when the position switch in the back door has a malfunction. This position switch detects if the back door is in the open/close position and sends a position signal to the power back door ECU.

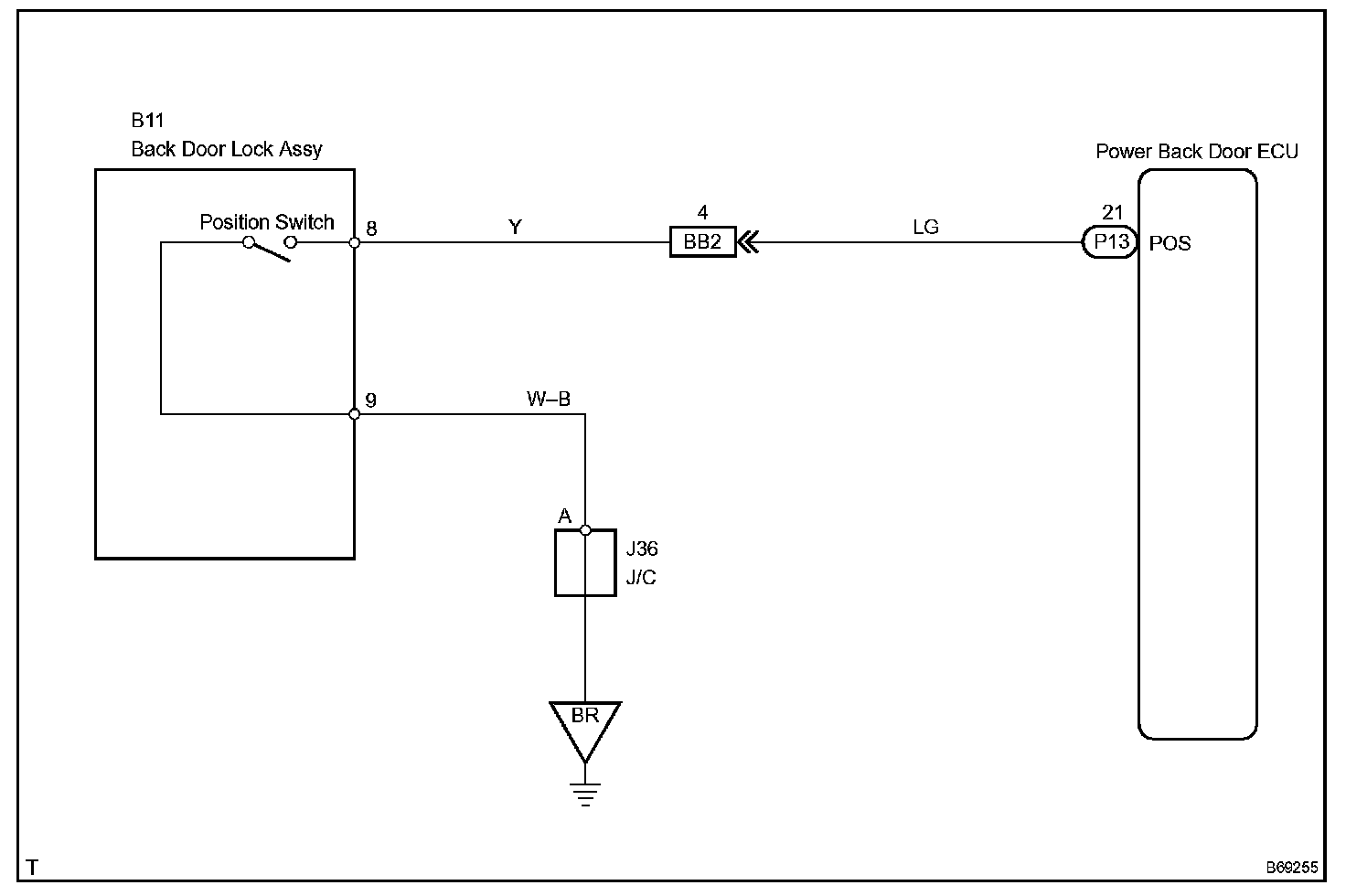

Wiring Diagram:

Step 1:

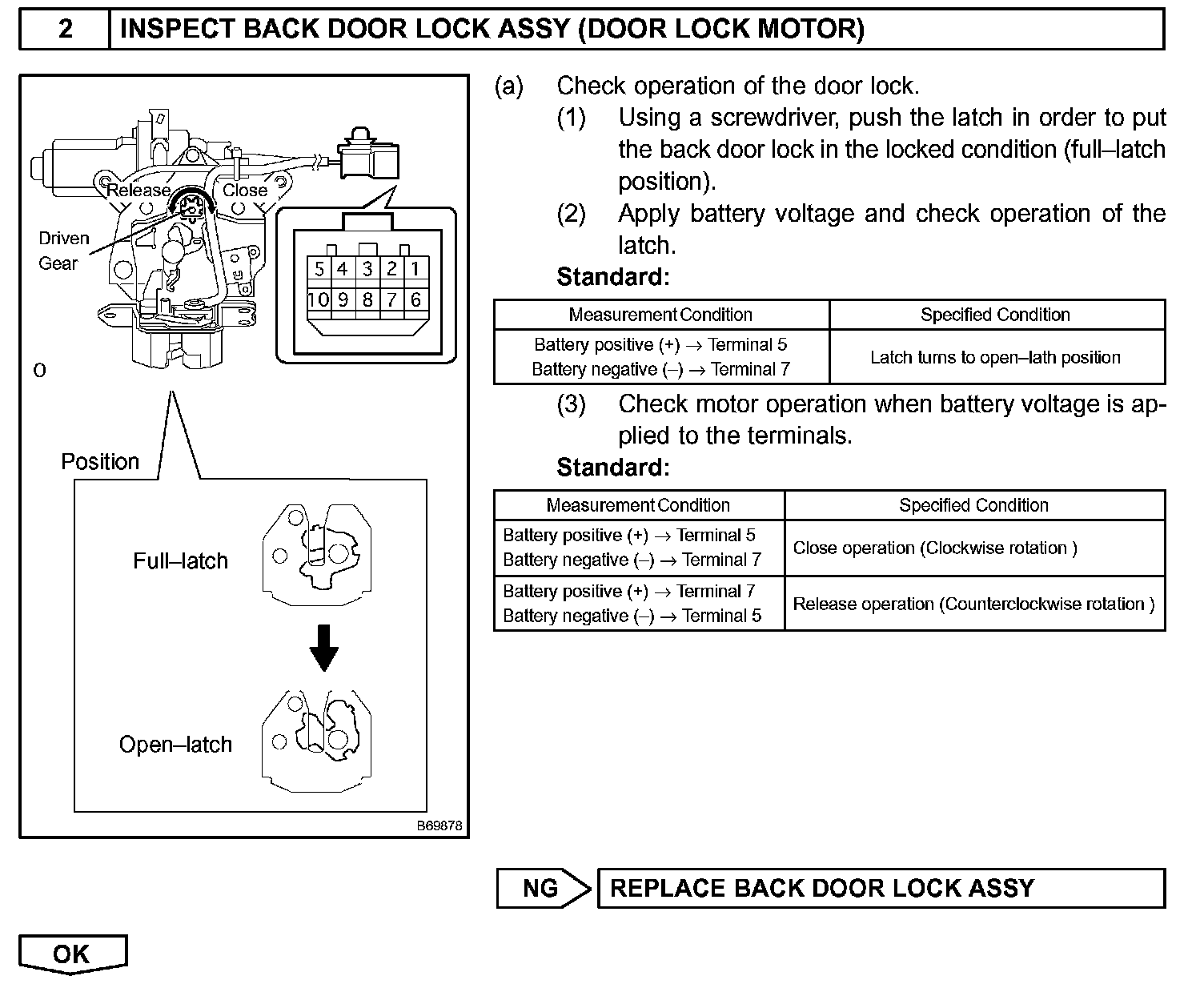

Step 2:

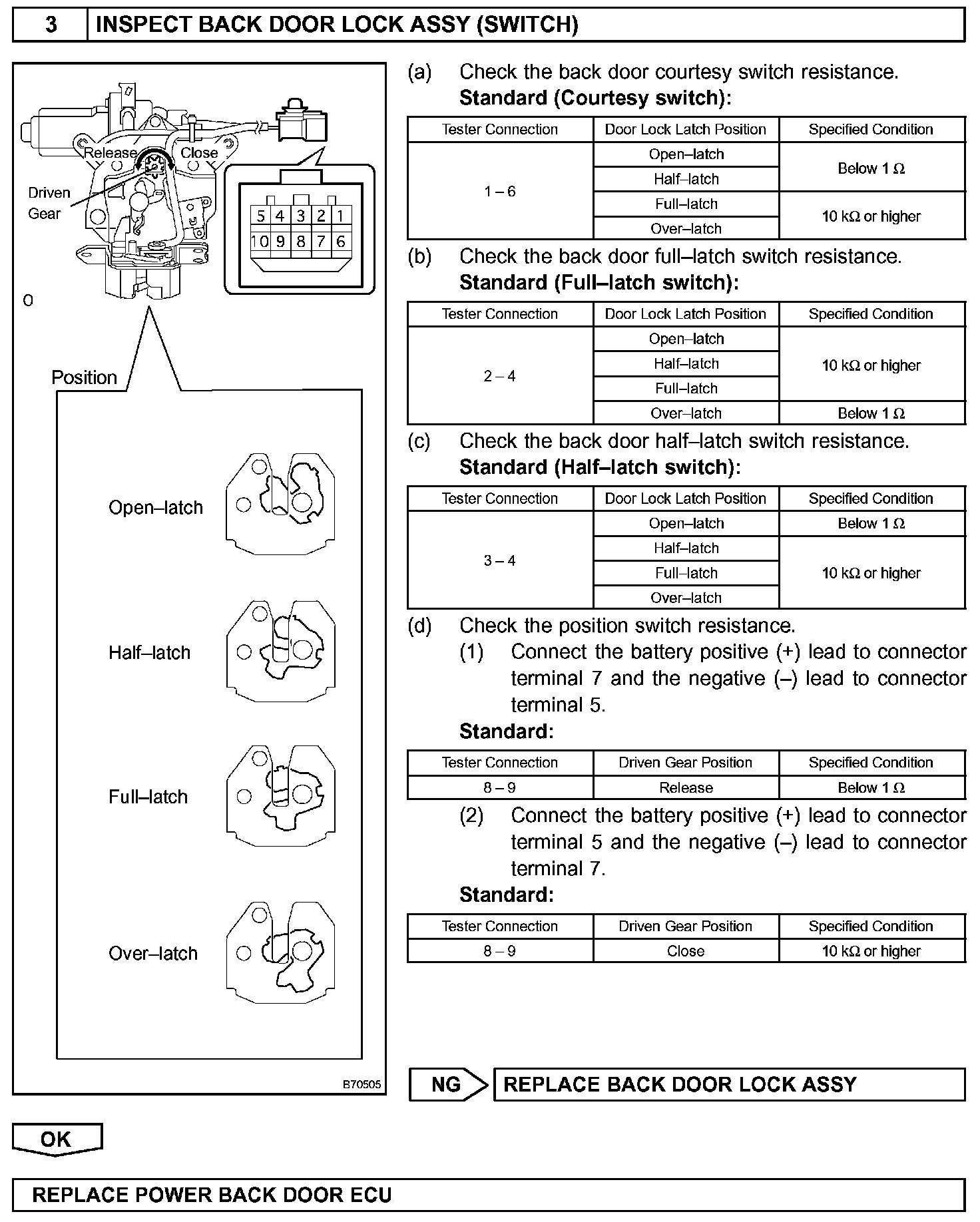

Step 3:

INSPECTION PROCEDURE
