B2620

DTC B2620 ECU POWER SOURCE CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

Detection Item:

The ECU power source circuit supplies positive voltage to the multiplex tilt & telescopic ECU.

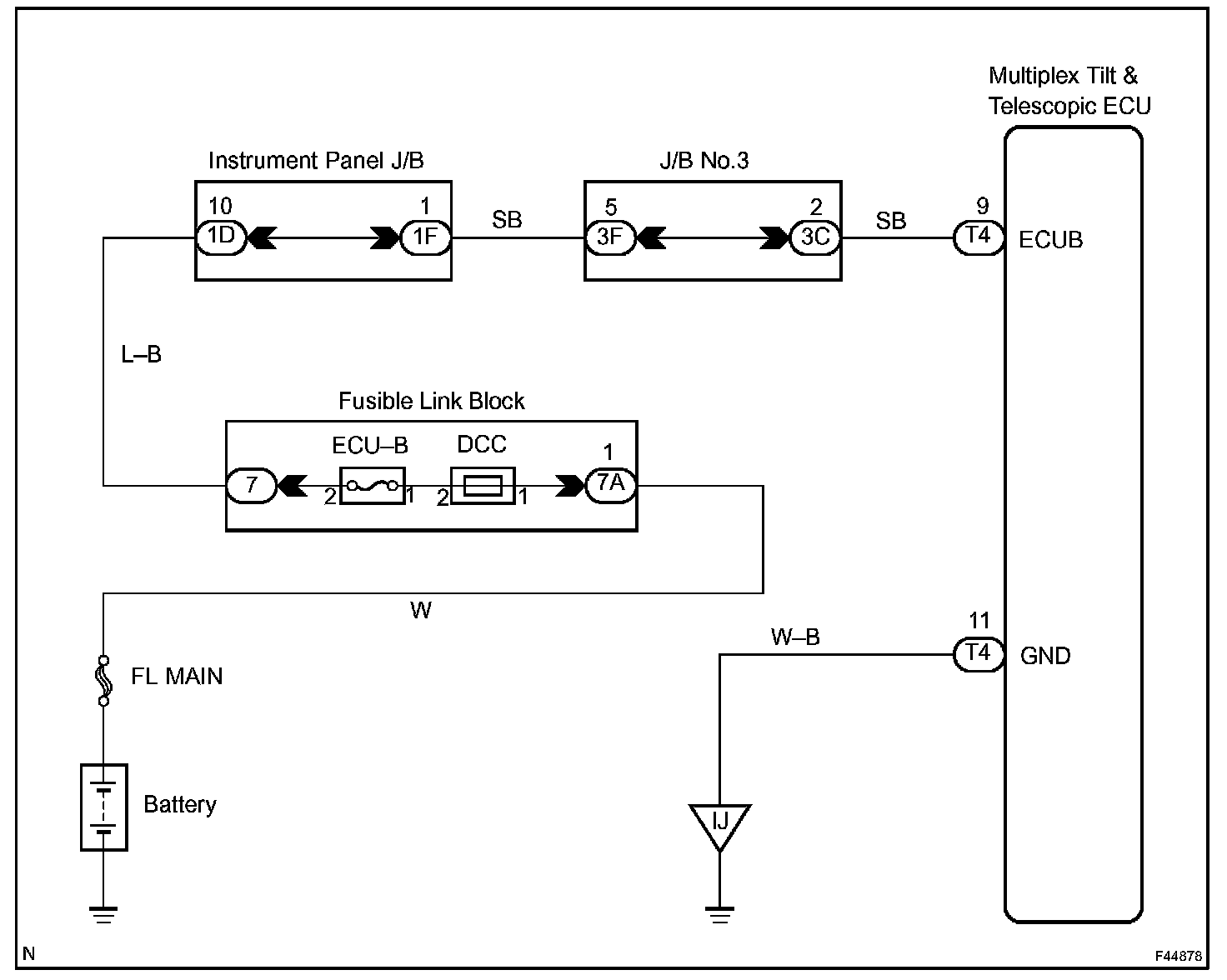

Wiring Diagram:

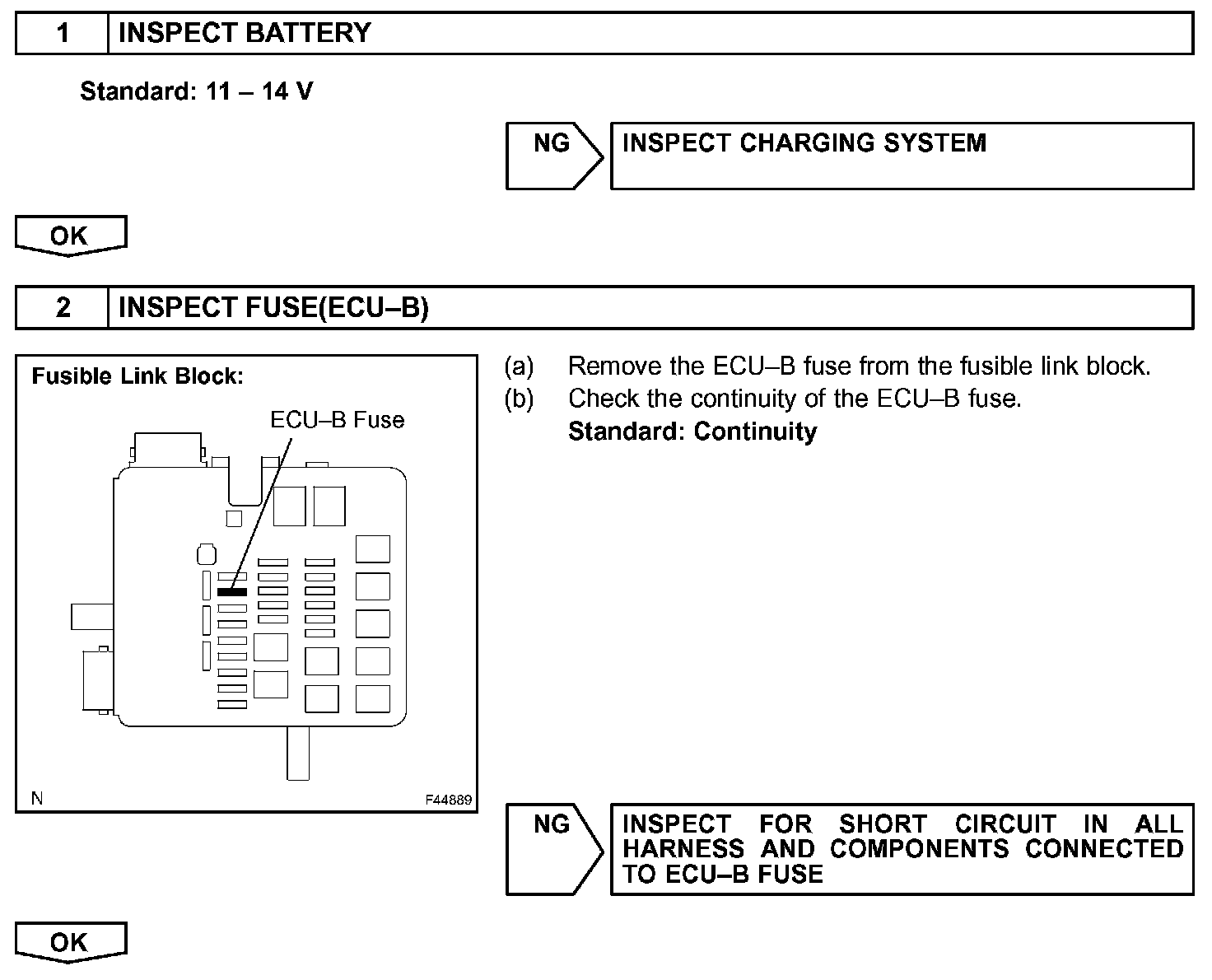

Step 1 - 2:

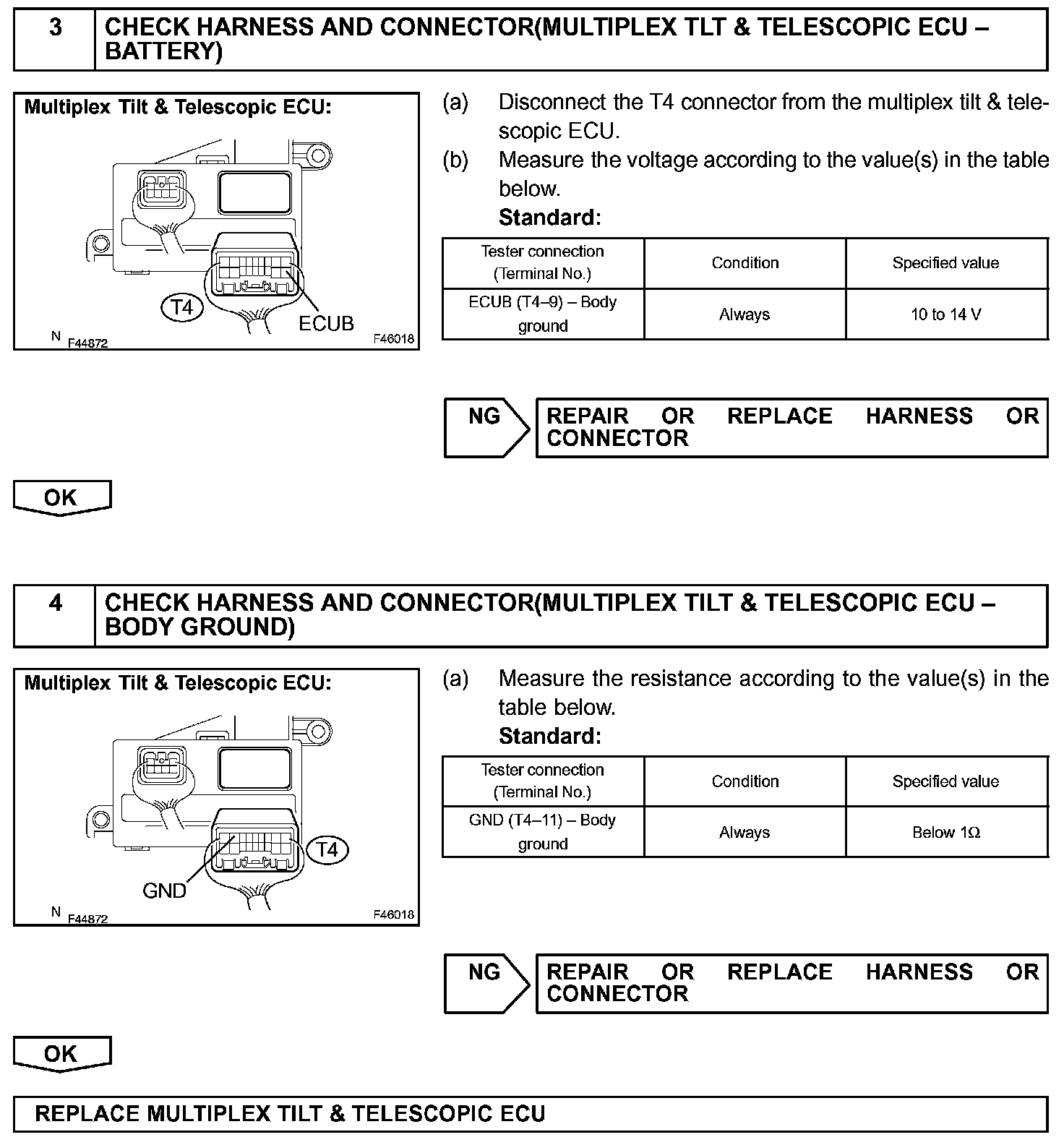

Step 3 - 4:

INSPECTION PROCEDURE
