P0617

DTC P0617 STARTER RELAY CIRCUIT HIGH

MONITOR DESCRIPTION

DTC Detecting Condition:

Monitor Strategy:

Typical Enabling Conditions:

Typical Malfunction Thresholds:

While the engine is being cranked, the battery positive voltage is applied to terminal STA of the ECM. If the ECM detects the starter control signal (STA) while the vehicle is driving, it will conclude that there is a fault in the starter control circuit. The ECM will turn on the MIL and a DTC is set.

Wiring Diagram:

INSPECTION PROCEDURE

HINT: Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.

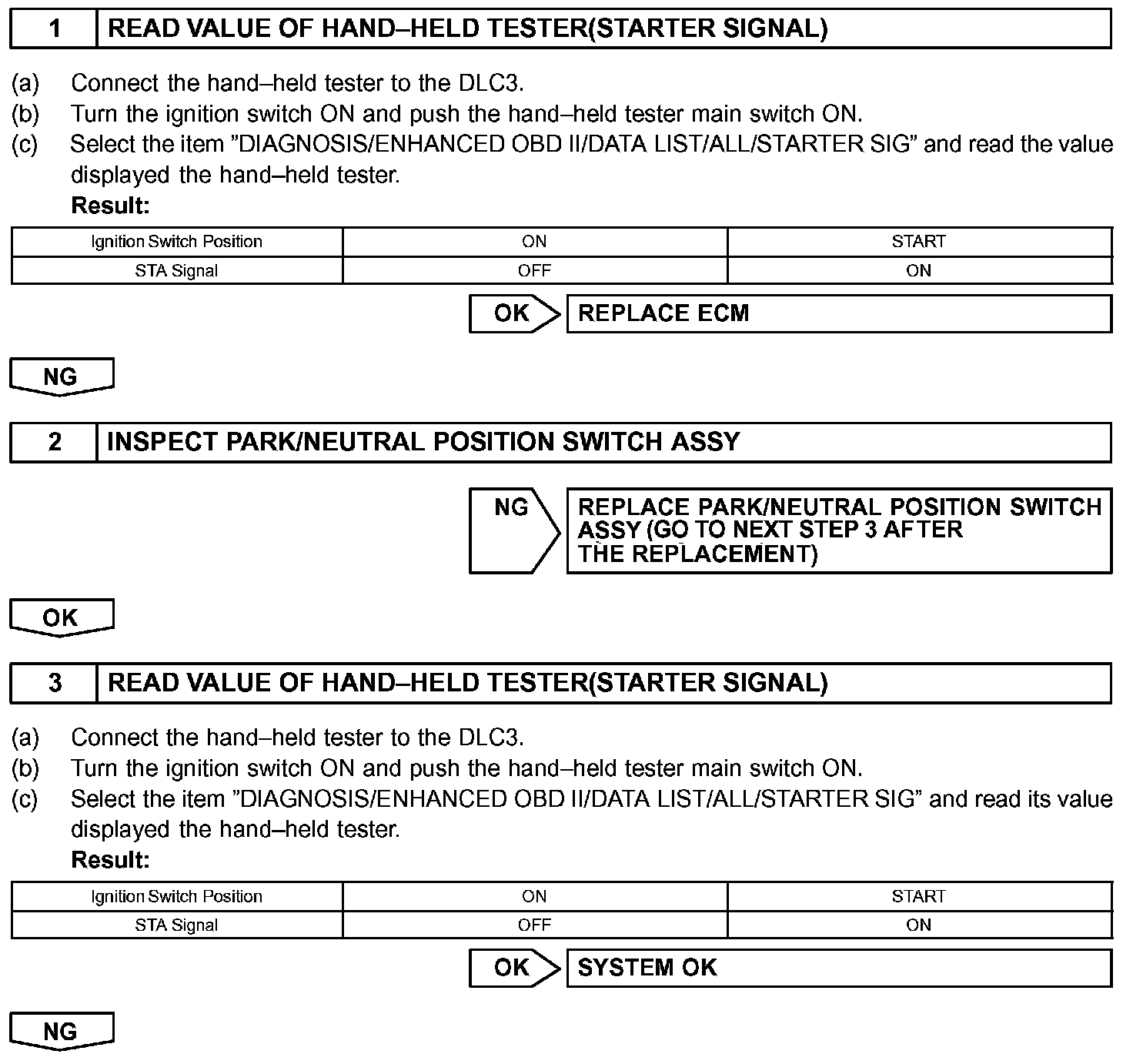

Step 1 - 3:

Step 4 - 5:

Hand-held tester

Step 1:

Step 2 - 4:

Step 5:

OBD II scan tool (excluding Hand-held Tester)
