DTC P2A00 A/F SENSOR CIRCUIT SLOW RESPONSE (BANK 1 SENSOR 1)HINT:
- DTC P2A00 means malfunction related to the bank 1 A/F sensor.
- DTC P2A03 means malfunction related to the bank 2 A/F sensor.
CIRCUIT DESCRIPTION

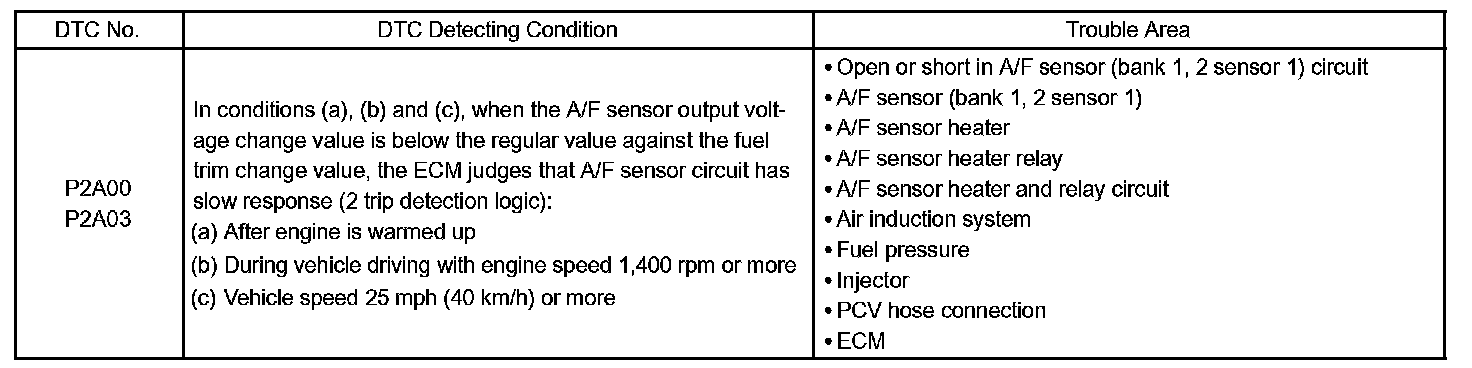

DTC Detecting Condition:
The Air Fuel ratio sensor provides output voltage* approximately equal to the existing air-fuel ratio. The A/F sensor output voltage is used to provide feedback for the ECM to control the air-fuel ratio.
With the A/F sensor output, the ECM can determine deviation from the stoichiometric air-fuel ratio and control proper injection time. If the A/F sensor is malfunctioning, the ECM is unable to accurately control air-fuel ratio.
The A/F sensor is equipped with a heater which heats the zirconia element. The heater is also controlled by the ECM. When the intake air volume is low (the temperature of the exhaust gas is low), current flows to the heater to heat the sensor to facilitate detection of accurate oxygen concentration.
The A/F sensor is a planar type. Compared to a conventional type, the sensor and heater portions are narrower. Because the heat of the heater is conducted through the alumina to zirconia (of the sensor portion), sensor activation is accelerated.
To obtain a high purification rate of the CO, HC and NOx components of the exhaust gas, a three-way catalytic converter is used. The converter is most efficient when the air-fuel ratio is maintained near the stoichiometric air-fuel ratio.
HINT: *: The voltage value changes on the inside of the ECM only.
HINT:
- Bank 1 refers to the bank that includes cylinder No. 1.
- Bank 2 refers to the bank that includes cylinder No. 2.
- Sensor 1 refers to the sensor closest to the engine assembly.
MONITOR DESCRIPTION

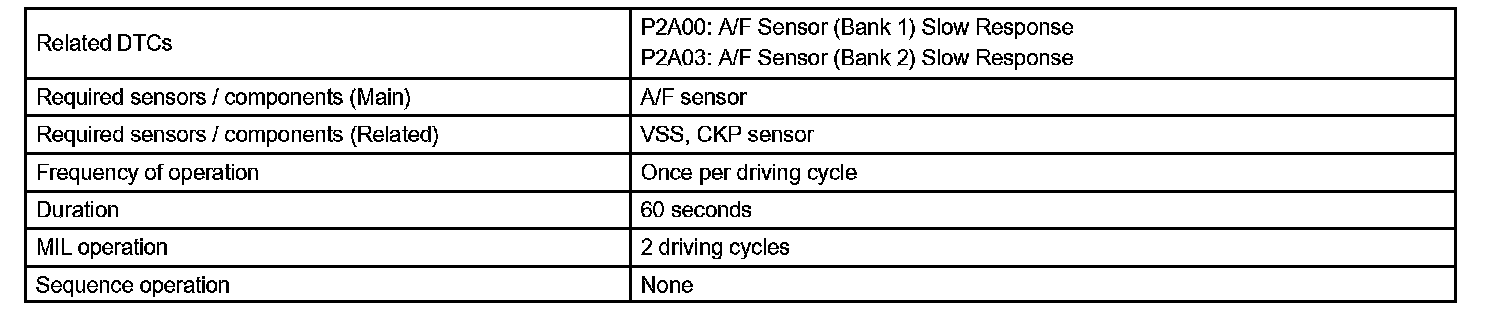

Monitor Strategy:
Typical Enabling Conditions:
Typical Malfunction Thresholds:
The air fuel ratio (A/F) sensor has a characteristic that it varies its voltage output in proportion to the air-fuel ratio. Based on the voltage output variation, the ECM judges the air-fuel ratio RICH or LEAN to adjust it close to the stoichiometric air-fuel ratio. The ECM observes variation in the A/F sensor voltage output and compares the compensation. Value of fuel injection volume (Fuel Trim) with it to detect deterioration in response of the A/F sensor itself. Normally, the voltage output of the sensor sharply fluctuates in accordance with rapid variation in the air-fuel ratio. This voltage output variation is represented as locus length. When the response rate has deteriorated, the locus length becomes shorter as the voltage output fluctuation is comparatively slow and small. The ECM concludes that there is a malfunction in the A/F sensor when the locus length is short and the response rate has deteriorated.
MONITOR RESULT
Refer to Monitors, Trips and/or Drive Cycle for detailed information.

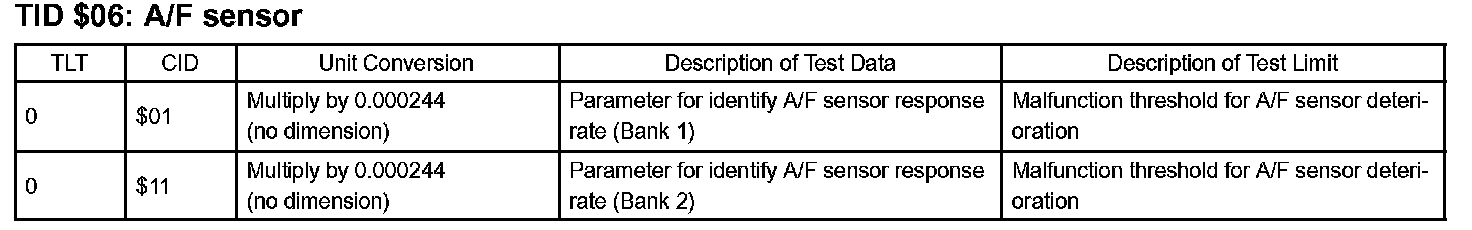

The test value and test limit information are described as shown in the following table. Check the monitor result and test values after performing the monitor drive pattern.
- TID (Test Identification Data) is assigned to each emissions-related component.
- TLT (Test Limit Type):
If TLT is 0, the component is malfunctioning when the test value is higher than the test limit.
If TLT is 1, the component is malfunctioning when the test value is lower than the test limit.
- CID (Component Identification Data) is assigned to each test value.
- Unit Conversion is used to calculate the test value indicated on generic OBD II scan tools.
Wiring Diagram:
INSPECTION PROCEDURE
HINT: Hand-held tester only:

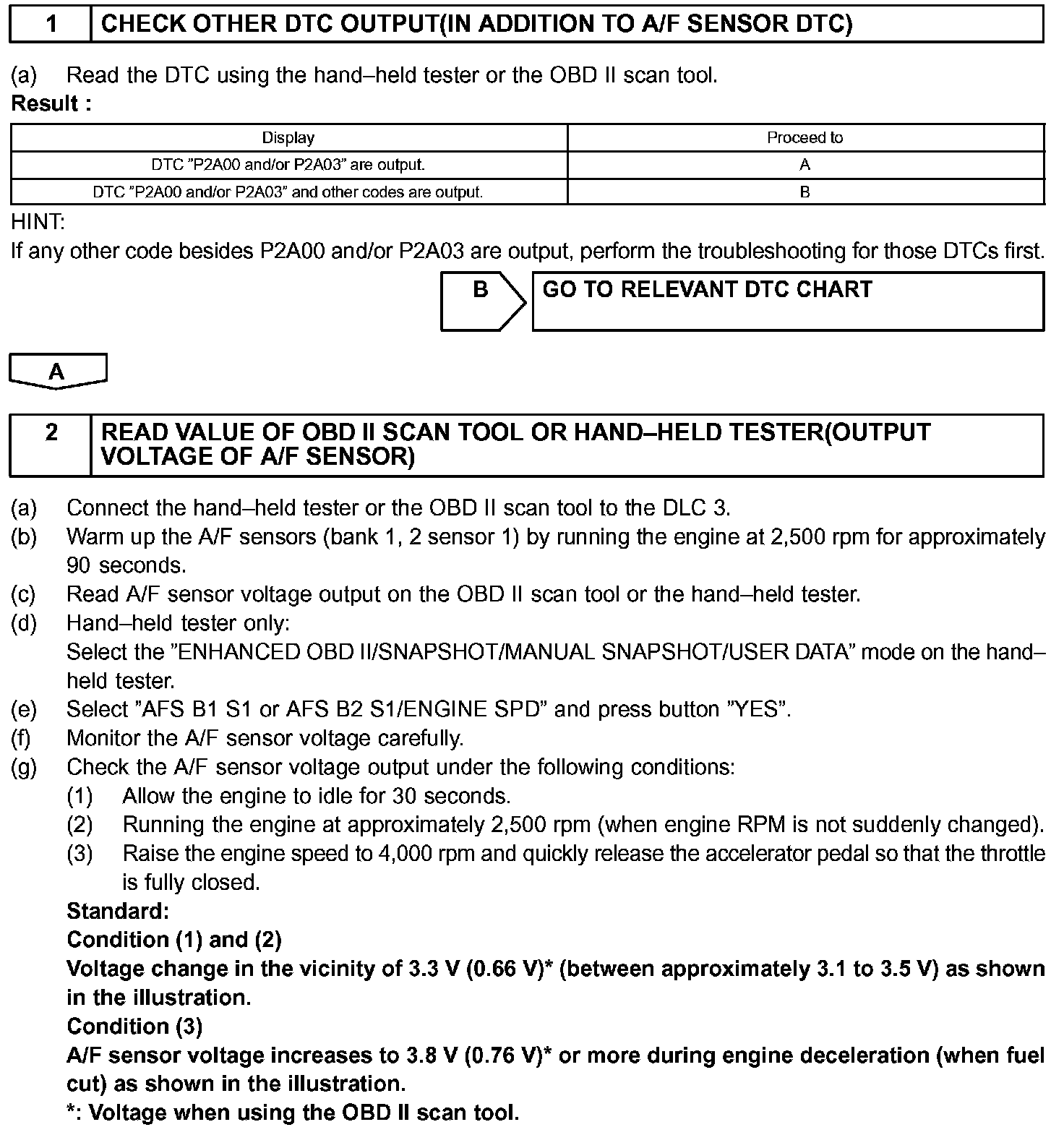

Narrowing down the trouble area is possible by performing the "A/F CONTROL" ACTIVE TEST (A/F sensor, heated oxygen sensor or other trouble areas can be distinguished).
a. Perform ACTIVE TEST using the hand-held tester (A/F CONTROL).
HINT: "A/F CONTROL" is ACTIVE TEST which changes the injection volume -12.5 % or +25 %.
1. Connect the hand-held tester to the DLC3 on the vehicle.
2. Turn the ignition switch ON.
3. Warm up the engine by running the engine at 2,500 rpm for approximately 90 seconds.
4. Select the item "DIAGNOSIS/ENHANCED OBD II/ACTIVE TEST/ A/F CONTROL".
5. Perform "A/F CONTROL" with the engine in an idle condition (press the right or left button).
Result:

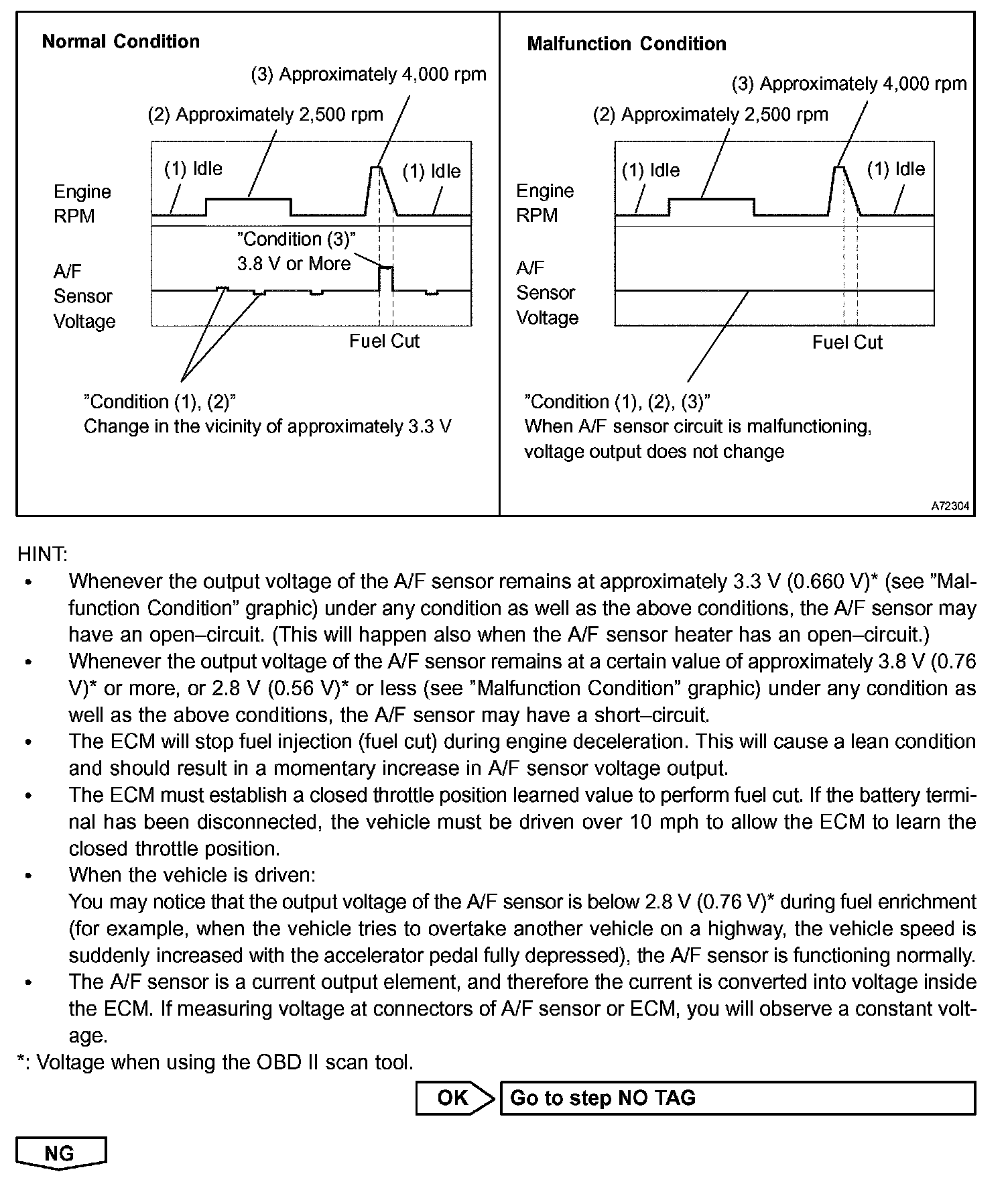

A/F sensor reacts in accordance with increase and decrease of injection volume:
+25 % -> rich output: Less than 3.0 V
-12.5 % -> lean output: More than 3.35 V
Heated oxygen sensor reacts in accordance with increase and decrease of injection volume:
+25 % -> rich output: More than 0.55 V
-12.5 % -> lean output: Less than 0.4 V
NOTE: The A/F sensor output has a few seconds of delay and the heated oxygen sensor output has about 20 seconds of delay at maximum.
The following A/F CONTROL procedure enables the technician to check and graph the voltage outputs of both the A/F sensor and the heated oxygen sensor.
For displaying the graph indication, enter "ACTIVE TEST/ A/F CONTROL/USER DATA", then select "AFS B1S1 and O2S B1S2" or "AFS B2S1 and O2S B2S2" by pressing "YES" button and push "ENTER" button before pressing "F4" button.
Step 1 - 2:
Step 2 (Continued):
Step 3 - 4:
Step 5:
Step 6 - 11:
Step 12 - 17:
Step 18 - 19:
HINT:

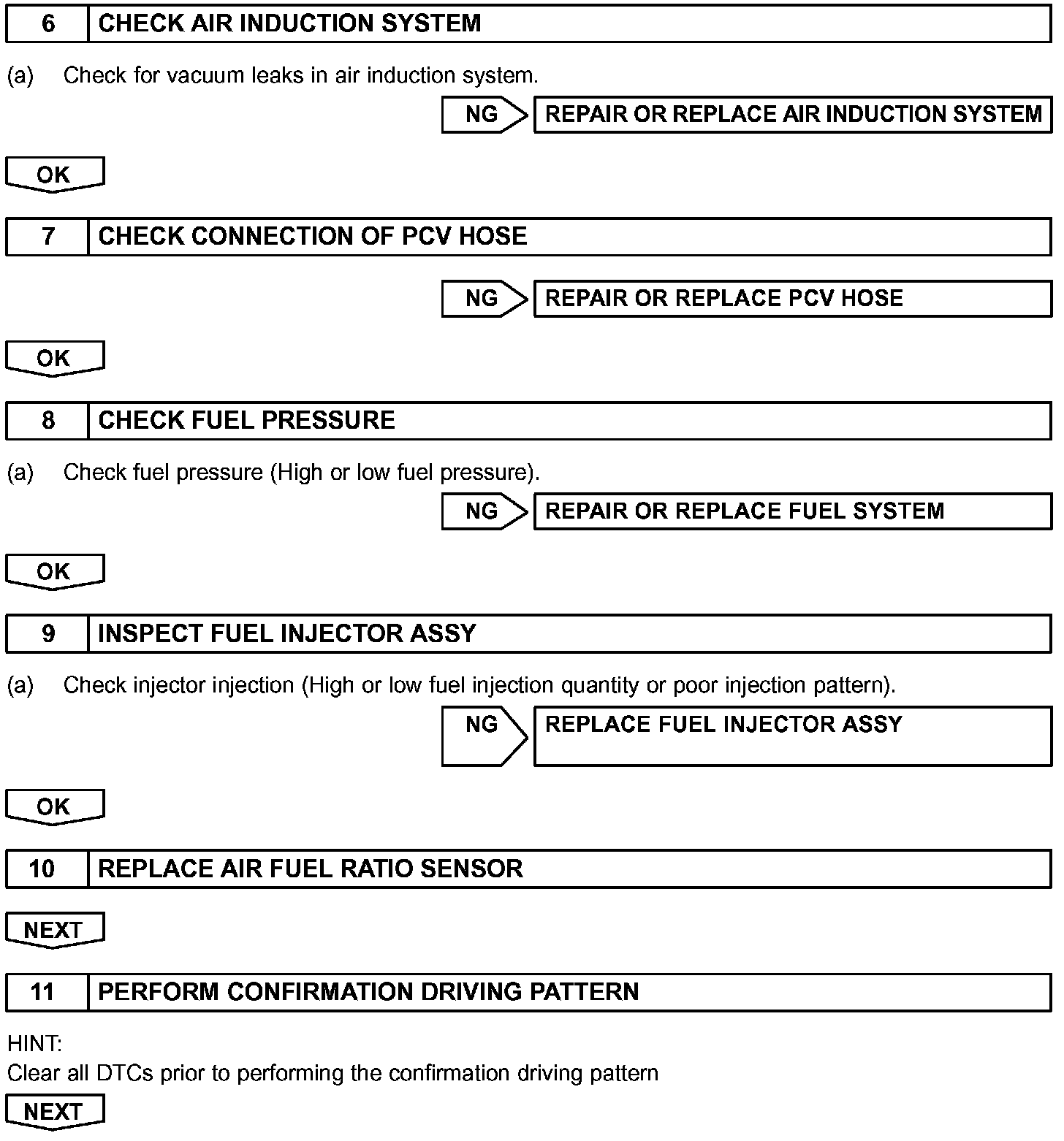

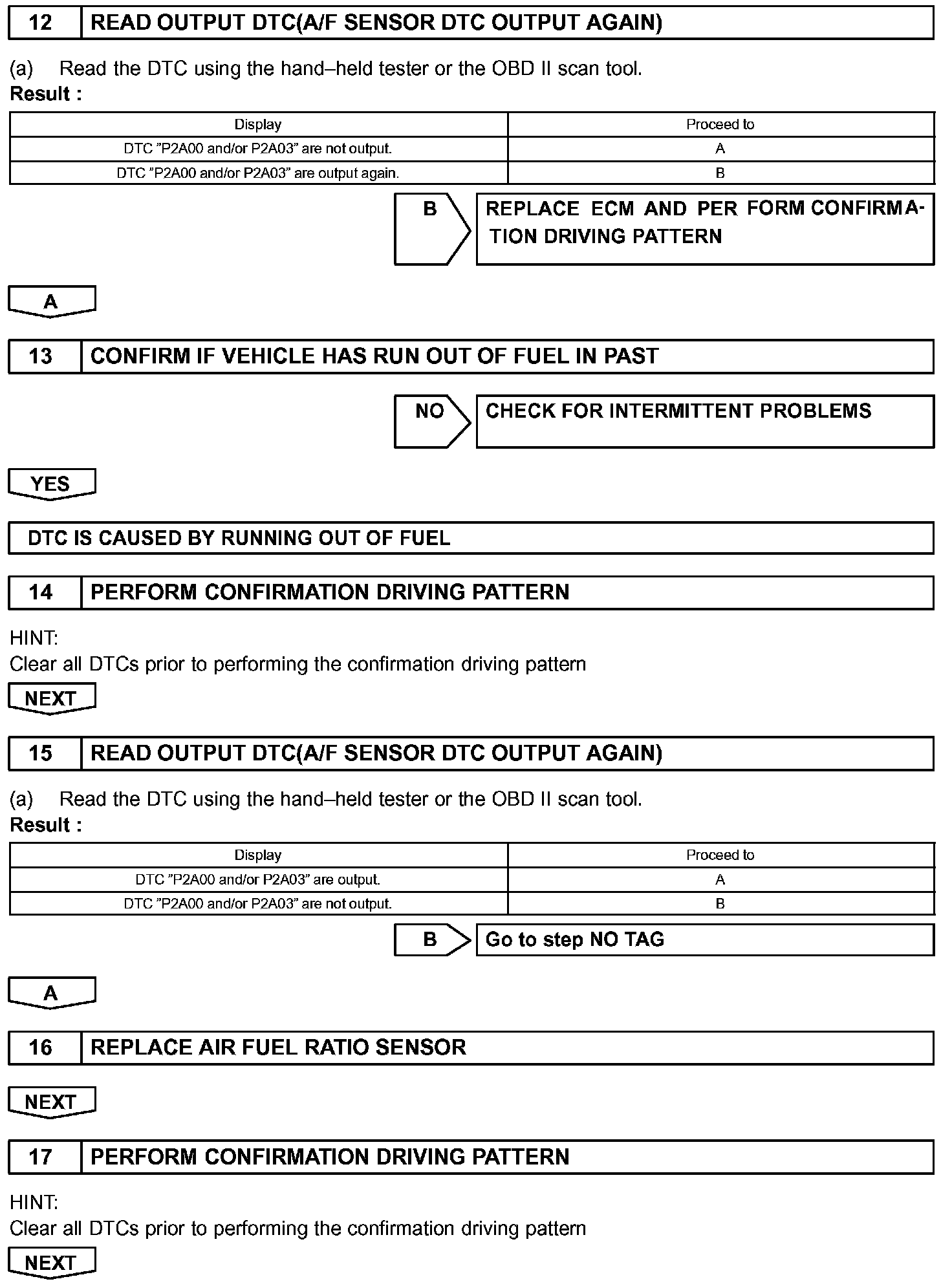

- DTC P2A00 or P2A03 may be also detected, when the air fuel ratio is stuck rich or lean.
- A low A/F sensor voltage could be caused by a rich air fuel mixture. Check for conditions that would cause the engine to run rich.
- A high A/F sensor voltage could be caused by a lean air fuel mixture. Check for conditions that would cause the engine to run lean.
- Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
CHECK FOR INTERMITTENT PROBLEMS
HINT: Hand-held tester only:
Inspect the vehicle's ECM using check mode. Intermittent problems are easier to detect when the ECM is in check mode with hand-held tester. In check mode, the ECM uses 1 trip detection logic, which has a higher sensitivity to malfunctions than normal mode (default), which uses 2 trip detection logic.
a. Clear the DTCs.
b. Set the check mode.
c. Perform a simulation test.
d. Check the connector and terminal.
e. Wiggle the harness and the connector.
