Air Bag(s) Arming and Disarming: Service and Repair

RELEASE METHOD OF ACTIVATION PREVENTION MECHANISM

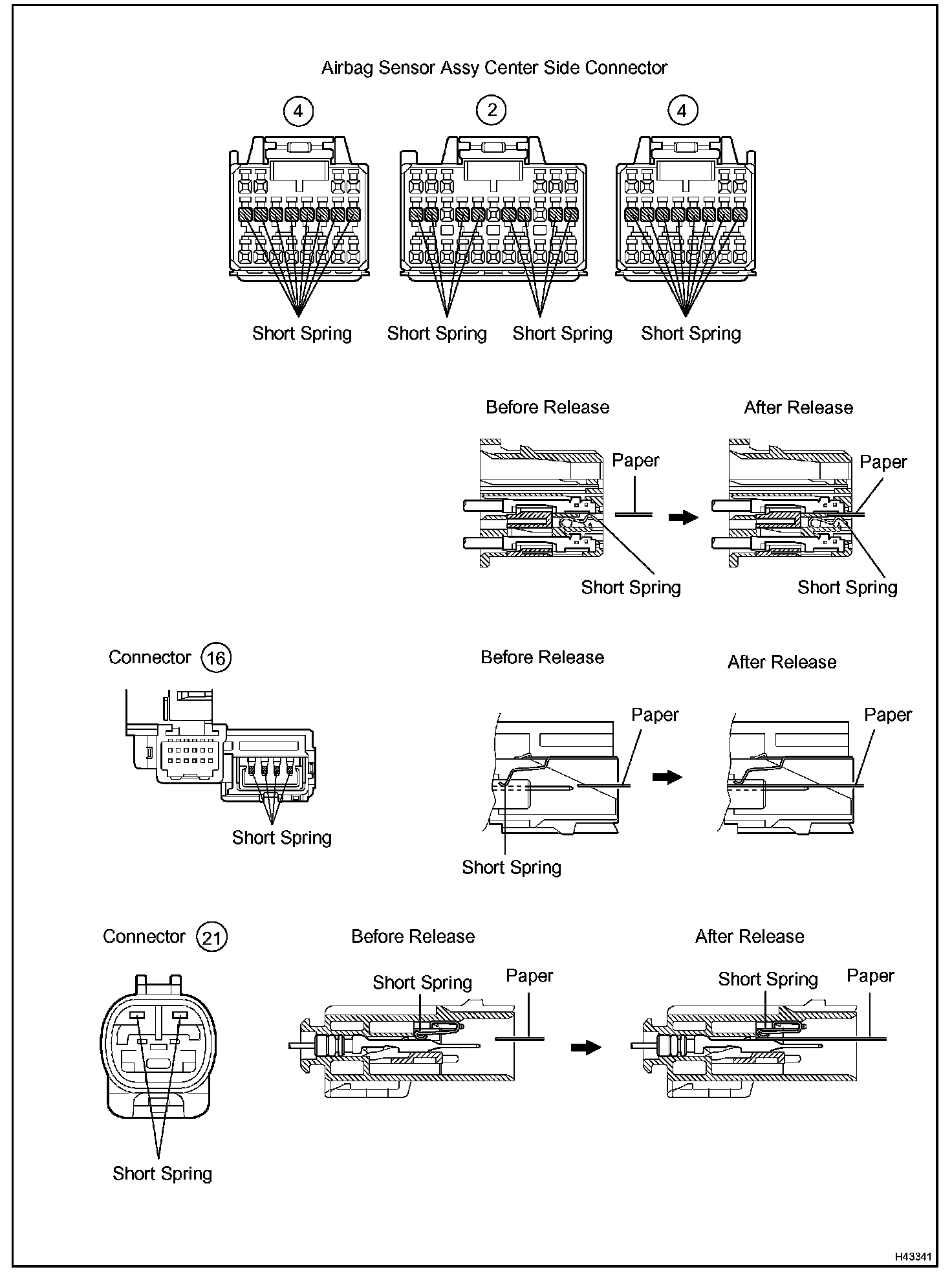

a. The activation prevention mechanism is built into the connector for the squib circuit of the SRS. As explained later, during troubleshooting, insert a piece of paper with the same thickness as the male terminal between the terminal and the short spring to release it (Refer to illustrations).

CAUTION: Never release the activation prevention mechanism on the squib connector.

NOTE:
- Do not release the activation prevention mechanism unless specially directed by the troubleshooting procedure.
- To prevent the terminal and the short spring from becoming damaged, always use a piece of paper with the same thickness as the male terminals.
