Engine Control Module
Engine Control Module

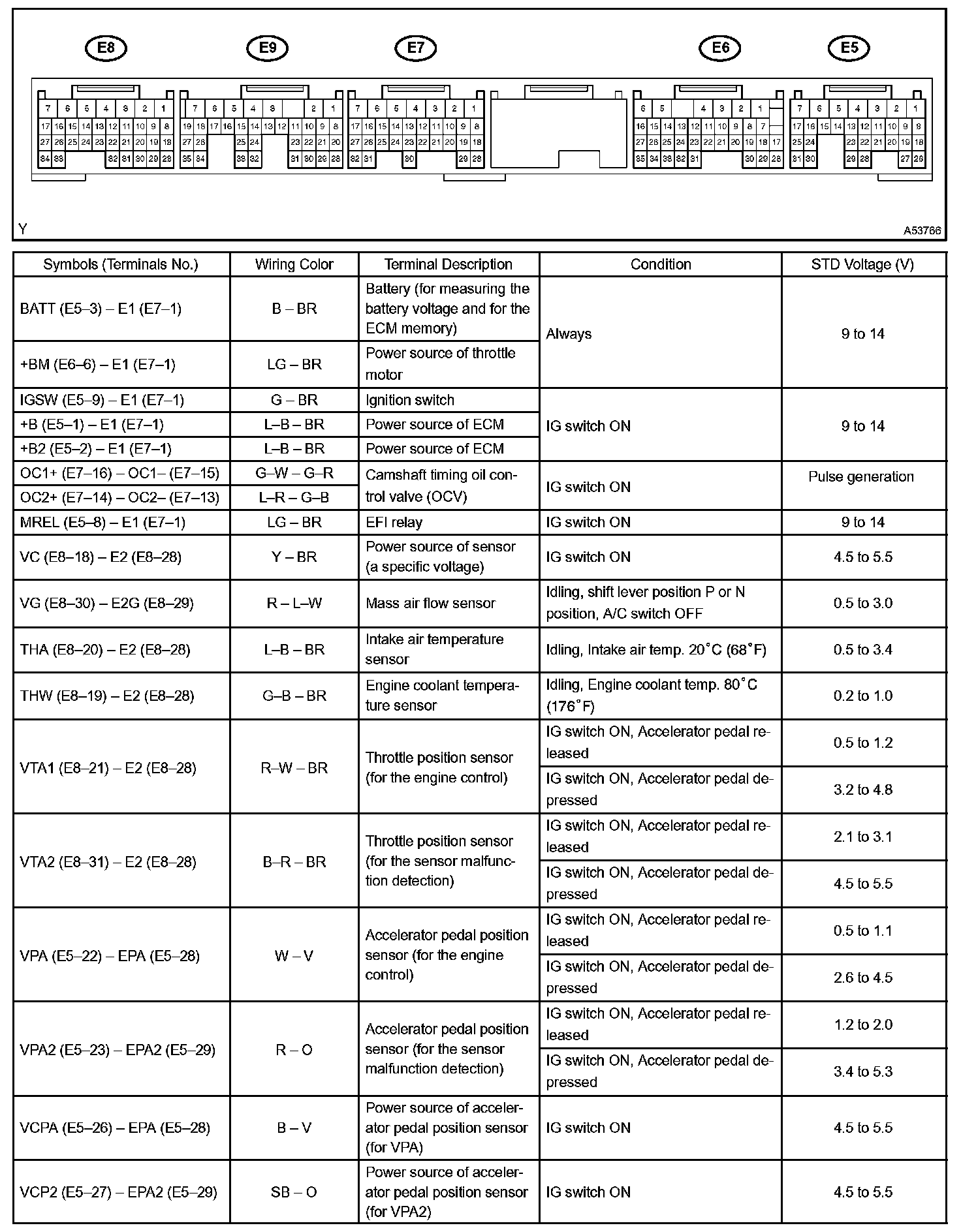

Terminals Of ECM/Pinouts Part 1:
Terminals Of ECM/Pinouts Part 2:
Terminals Of ECM/Pinouts Part 3:
