Air Bag
Air Bag

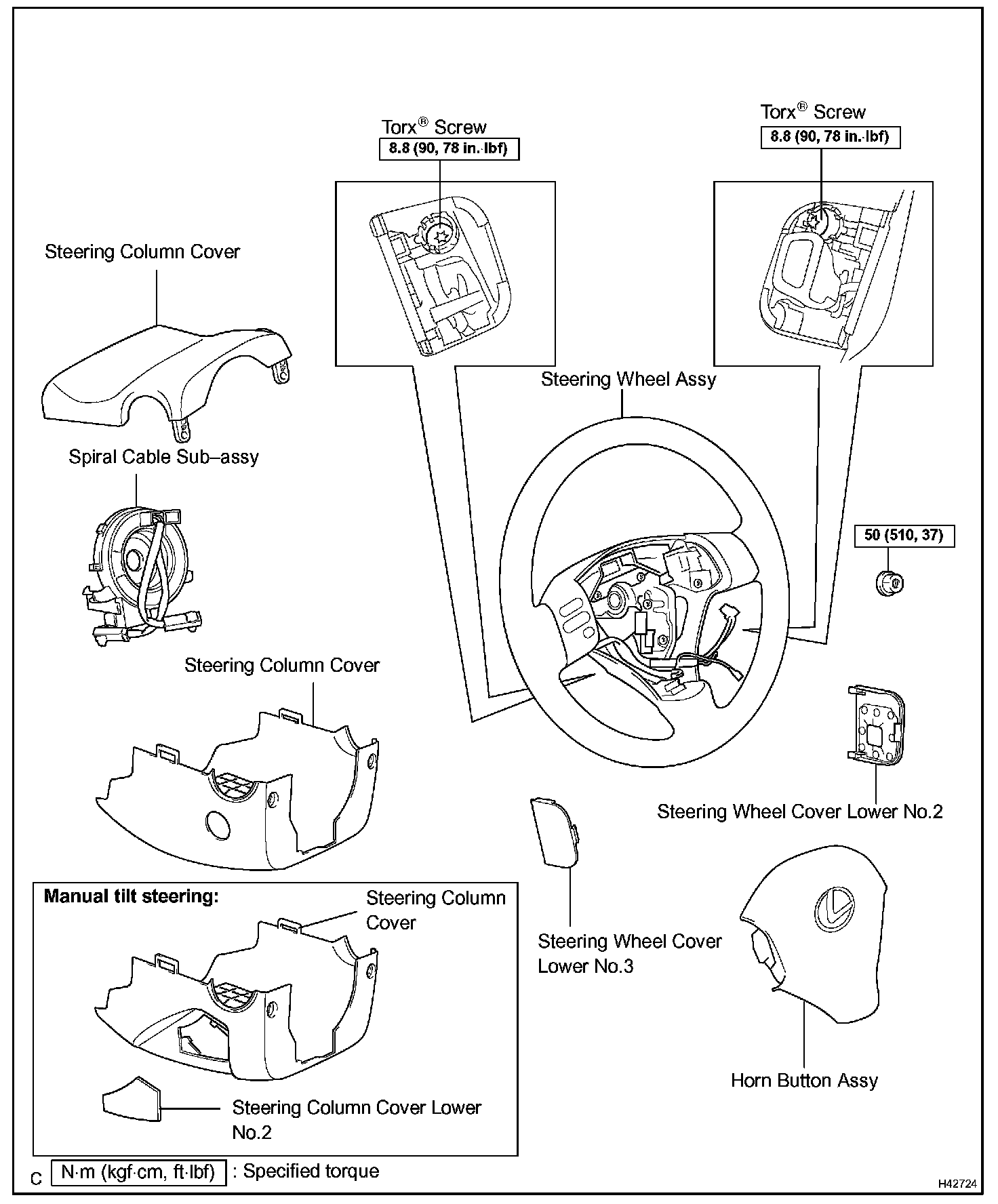

Horn Button Assy:
Instr Pnl Pass L/Door Air Bag Assy:
Curtain Shield Air Bag Assy LH:

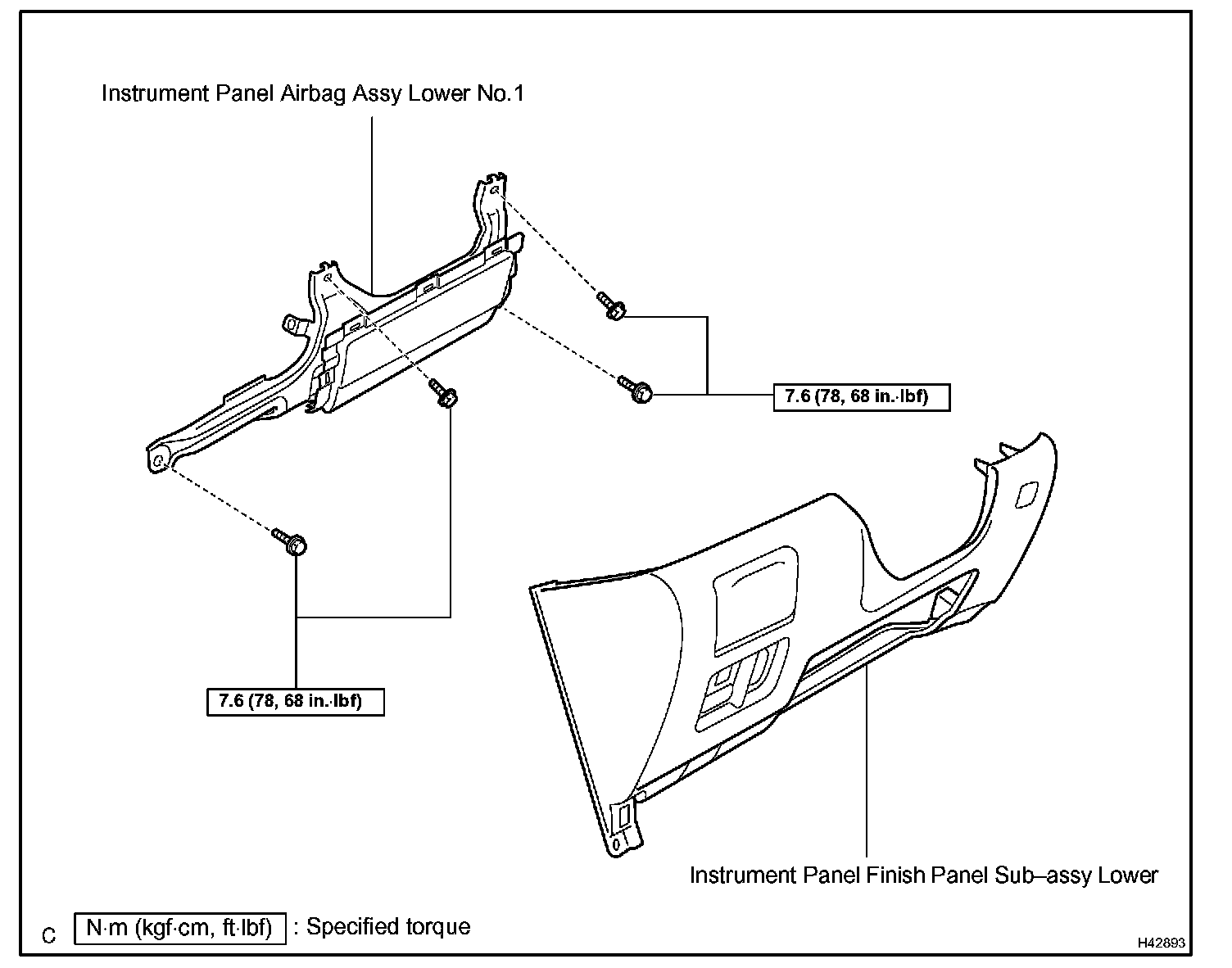

Instrument Panel Air Bag Assy Lower No.1:
