Impact Sensor
Impact Sensor

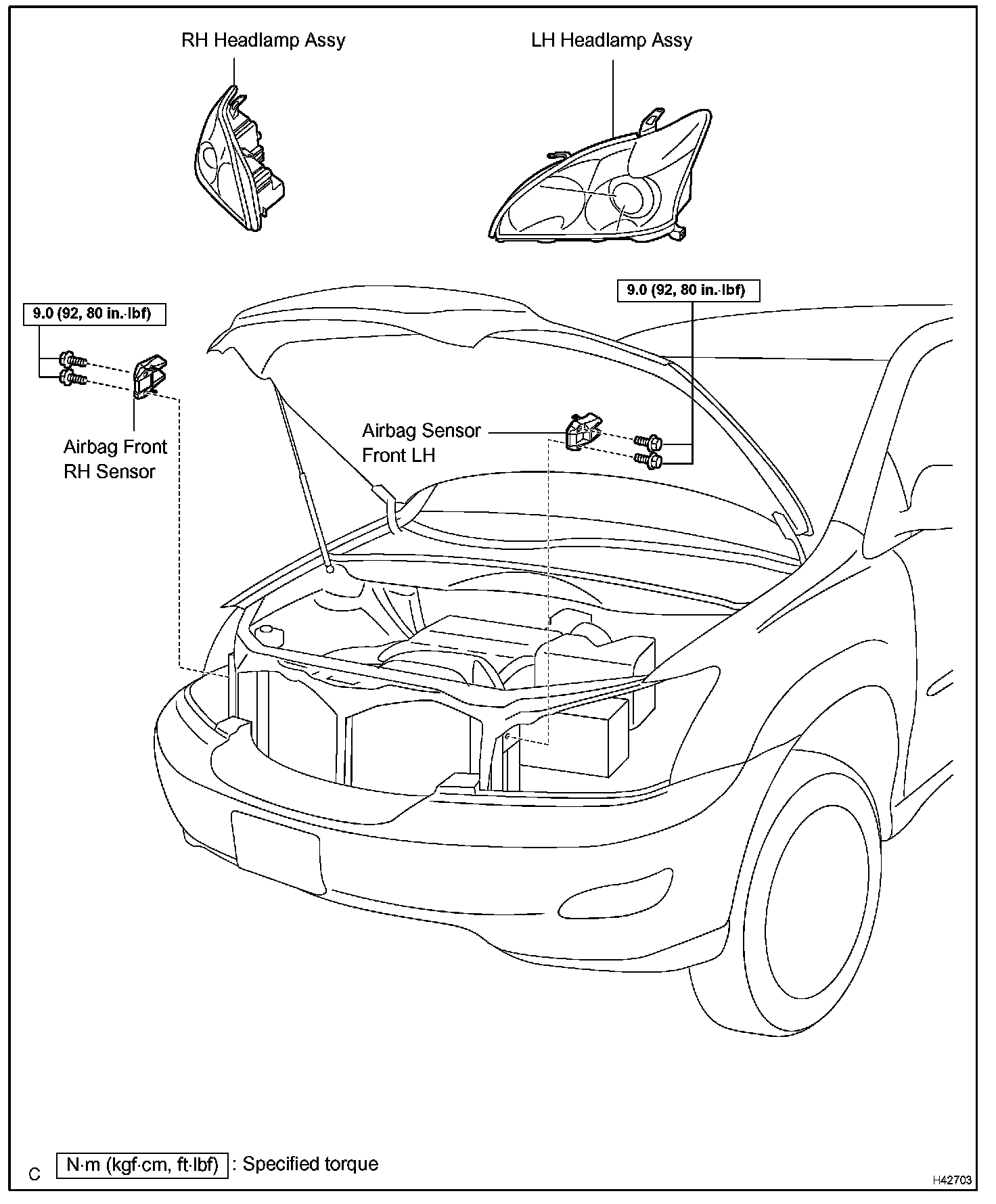

Air Bag Sensor Front LH:
Side Air Bag Sensor Assy LH:
Air Bag Sensor Rear LH:

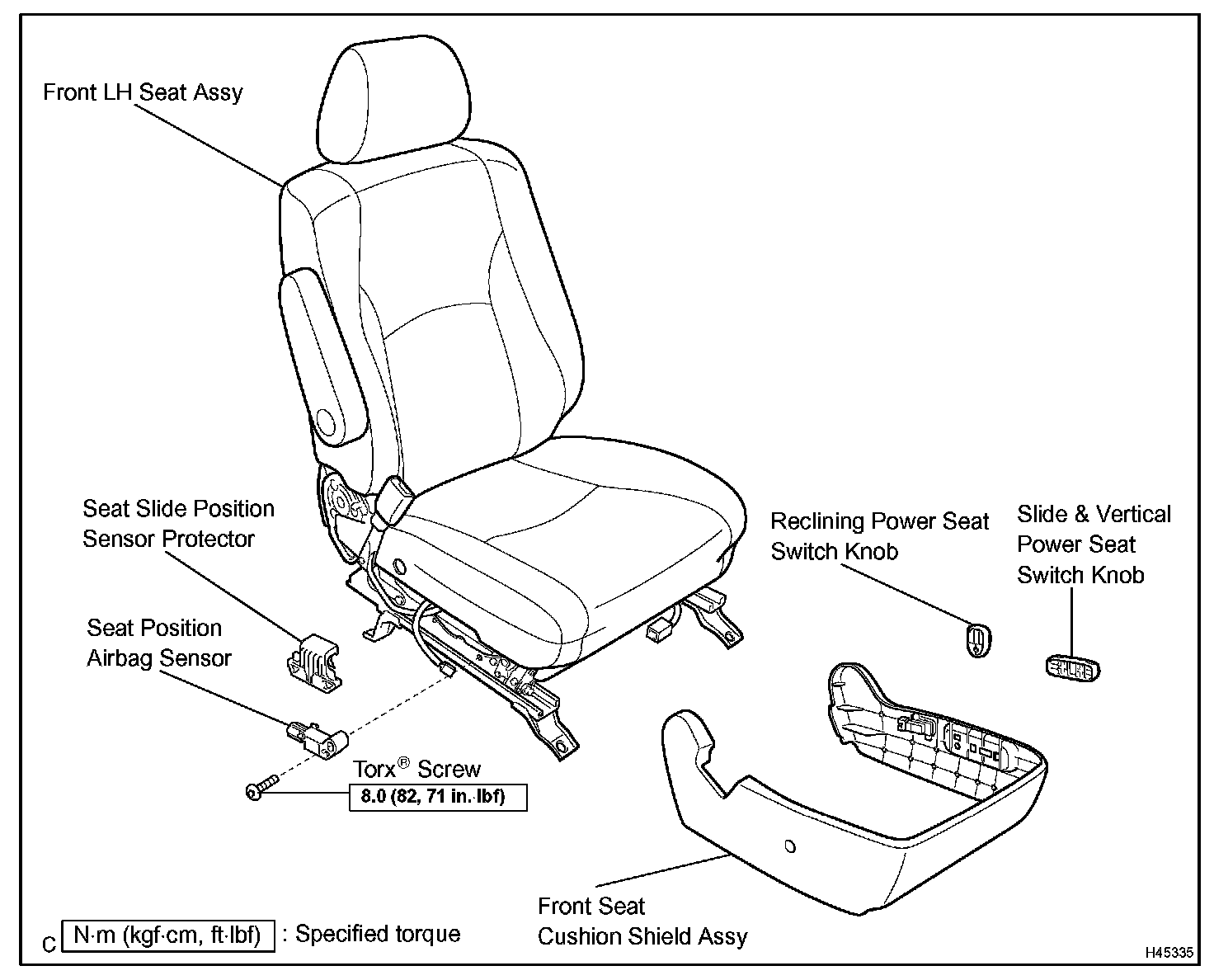

Seat Position Air Bag Sensor:
