Home
>>
Lexus Truck
>>
2005
>>
RX 330 AWD V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Starting System
Starting System

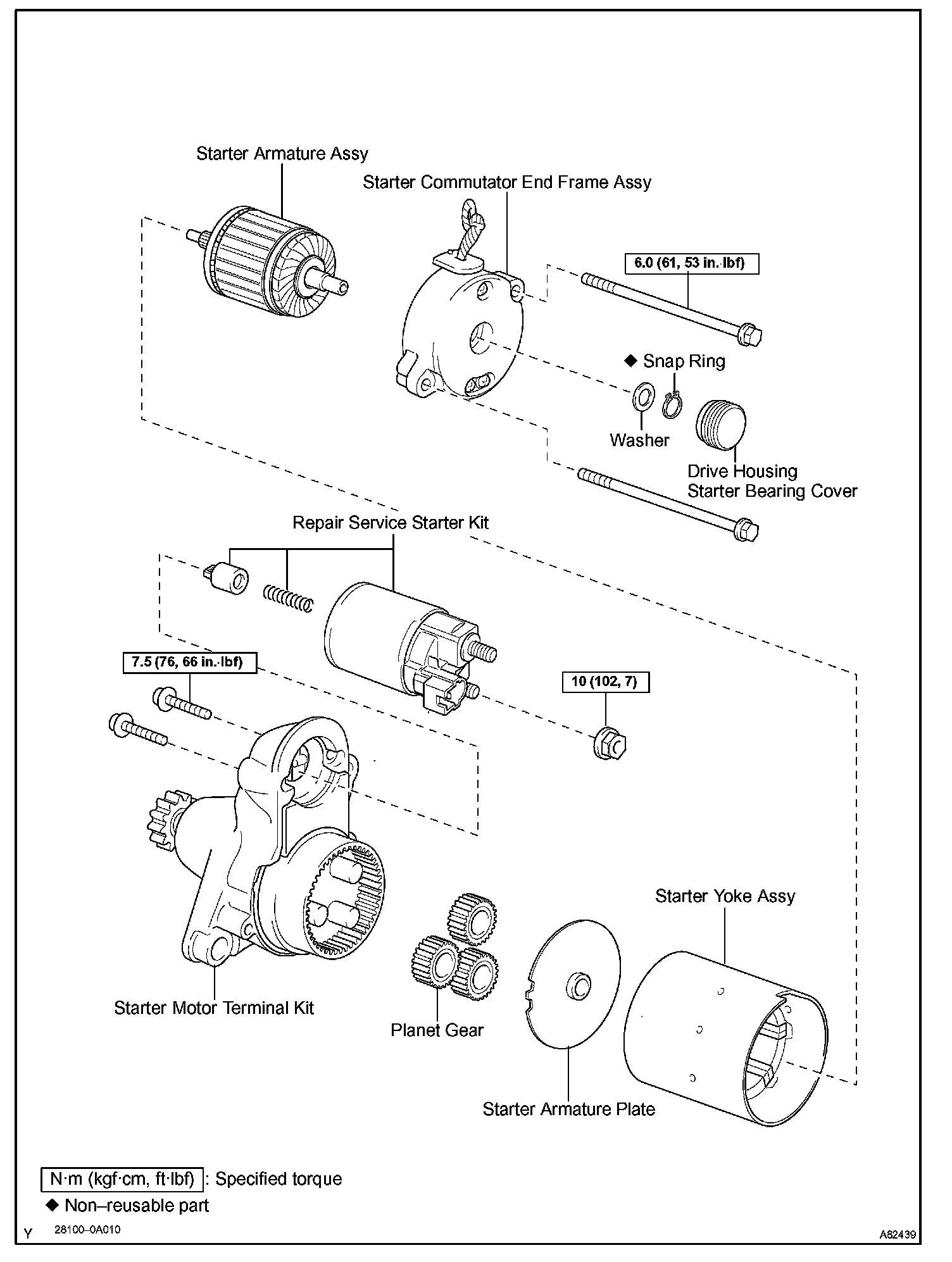

Starter Assy(3MZ-FE) - Part 1:
Starter Assy(3MZ-FE) - Part 2:
