Control Assembly: Service and Repair

CENTER CLUSTER INTEGRATION SWITCH ASSEMBLY

OVERHAUL
1. REMOVE CONSOLE PANEL UPPER FRONT
2. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
3. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET




4. REMOVE CENTER CLUSTER INTEGRATION SWITCH ASSEMBLY
a. Remove the 2 bolts.

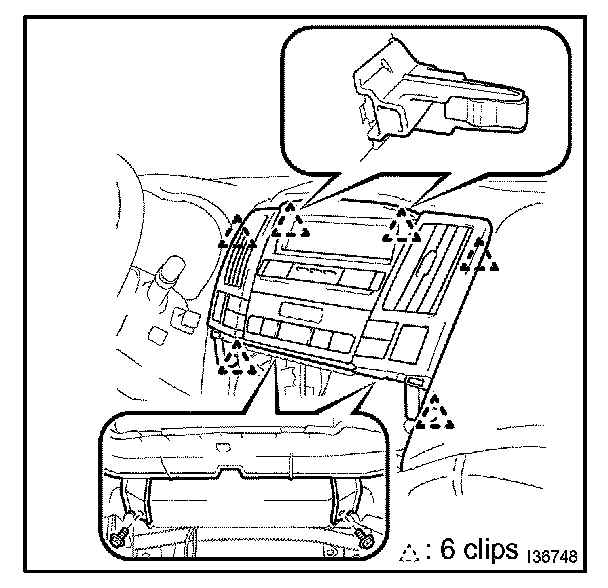

b. Release the 6 clip fittings.
c. Remove the connector and center cluster integration switch assembly.




5. REMOVE HEATER CONTROL BASE BRACKET LH
a. Remove the 2 bolts and heater control base bracket LH.




6. REMOVE HEATER CONTROL BASE BRACKET RH
a. Remove the 2 bolts and heater control base bracket RH.




7. REMOVE HEATER CONTROL HOUSING SUB-ASSEMBLY

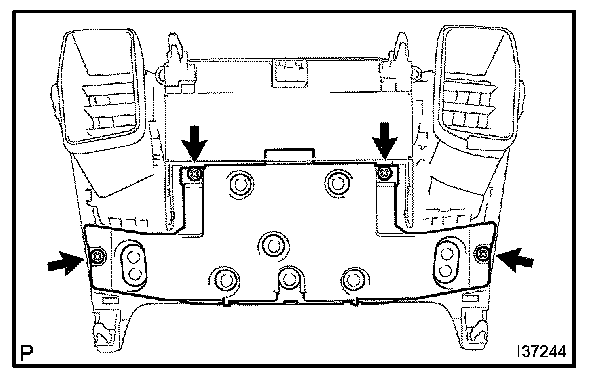

a. Remove the 4 screws and heater control housing sub-assembly.




8. REMOVE MULTI INFORMATION DISPLAY SUB-ASSEMBLY
a. Release the lock of the connector and disconnect the cable.

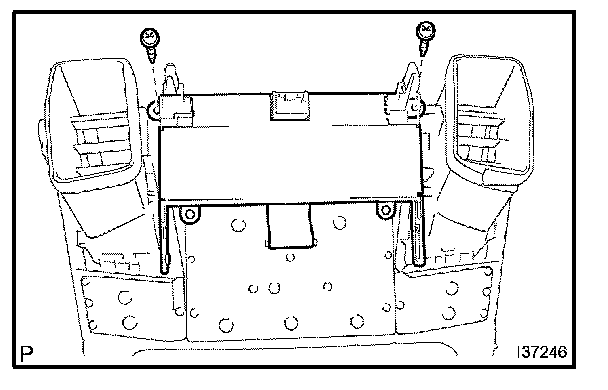

b. Remove the 2 screws and multi information display sub-assembly.
