Instrument Cluster / Carrier: Service and Repair

COMBINATION METER ASSEMBLY

OVERHAUL




1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

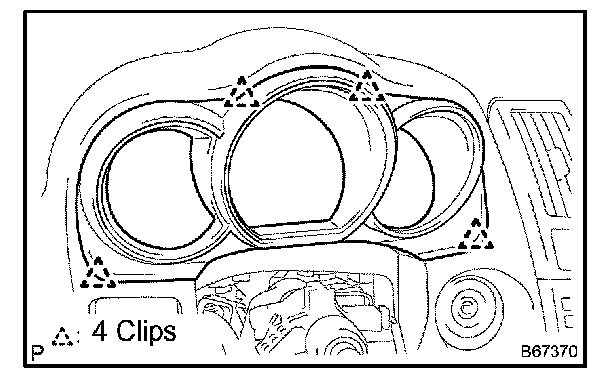

a. Disengage the 4 clips and remove the instrument cluster finish panel sub-assembly.




2. REMOVE COMBINATION METER ASSEMBLY
a. Remove the 4 screws.
b. Pull out the combination meter assembly, then disconnect the connectors.




3. REMOVE COMBINATION METER GLASS

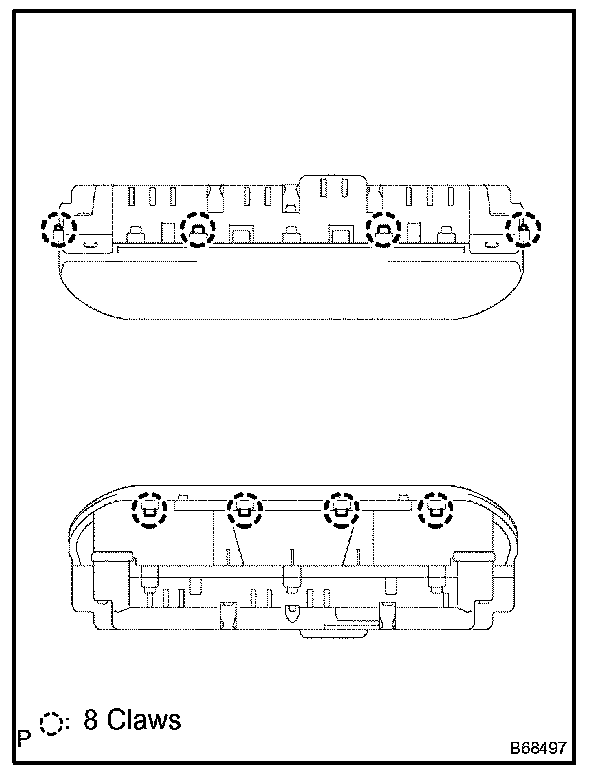

a. Disengage the 8 claws and remove the combination meter glass.
