Pinout Values and Diagnostic Parameters

Terminals Of Control Module/Pinouts - Combination Meter Assy Part 1:

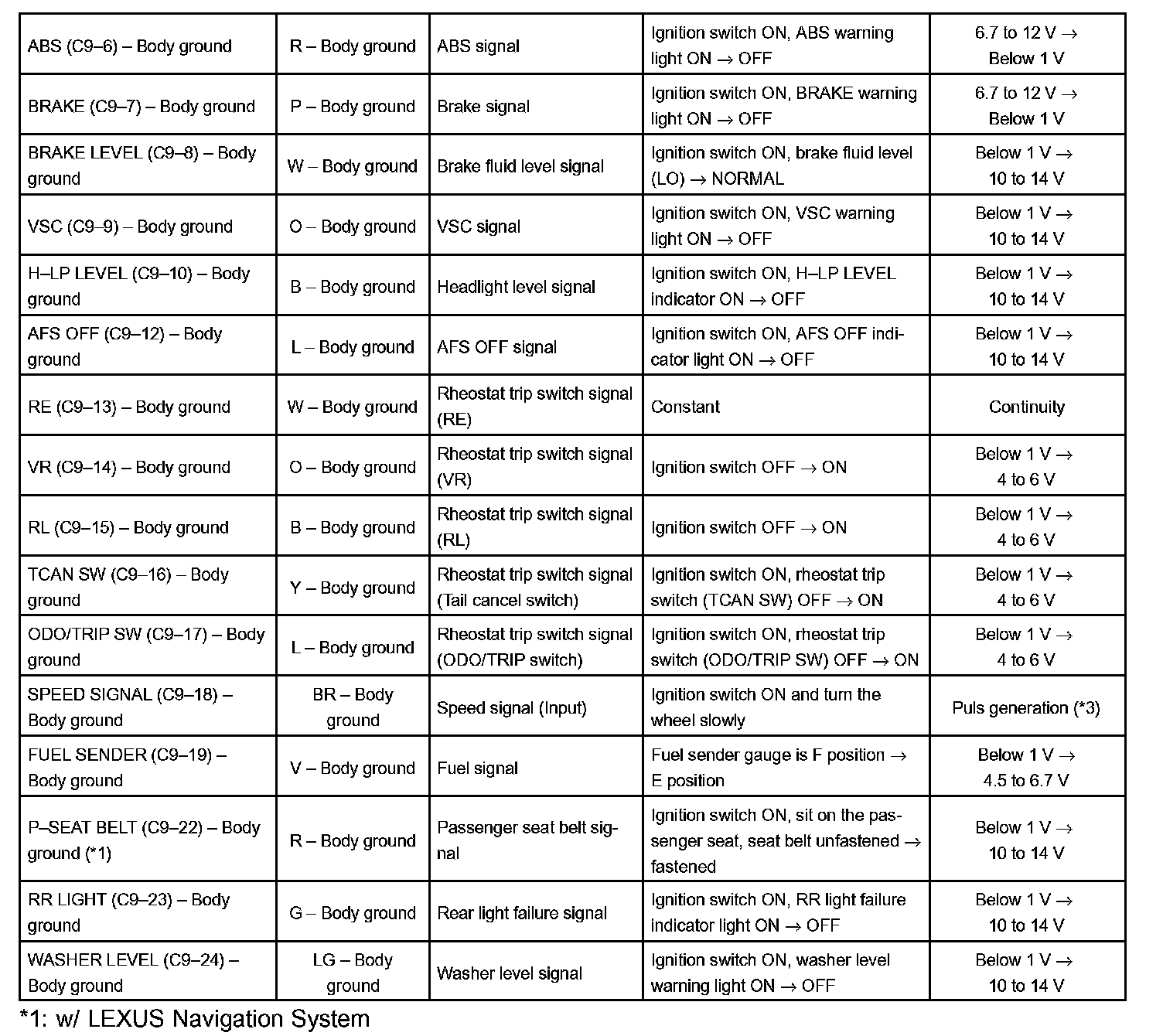

Terminals Of Control Module/Pinouts - Combination Meter Assy Part 2:

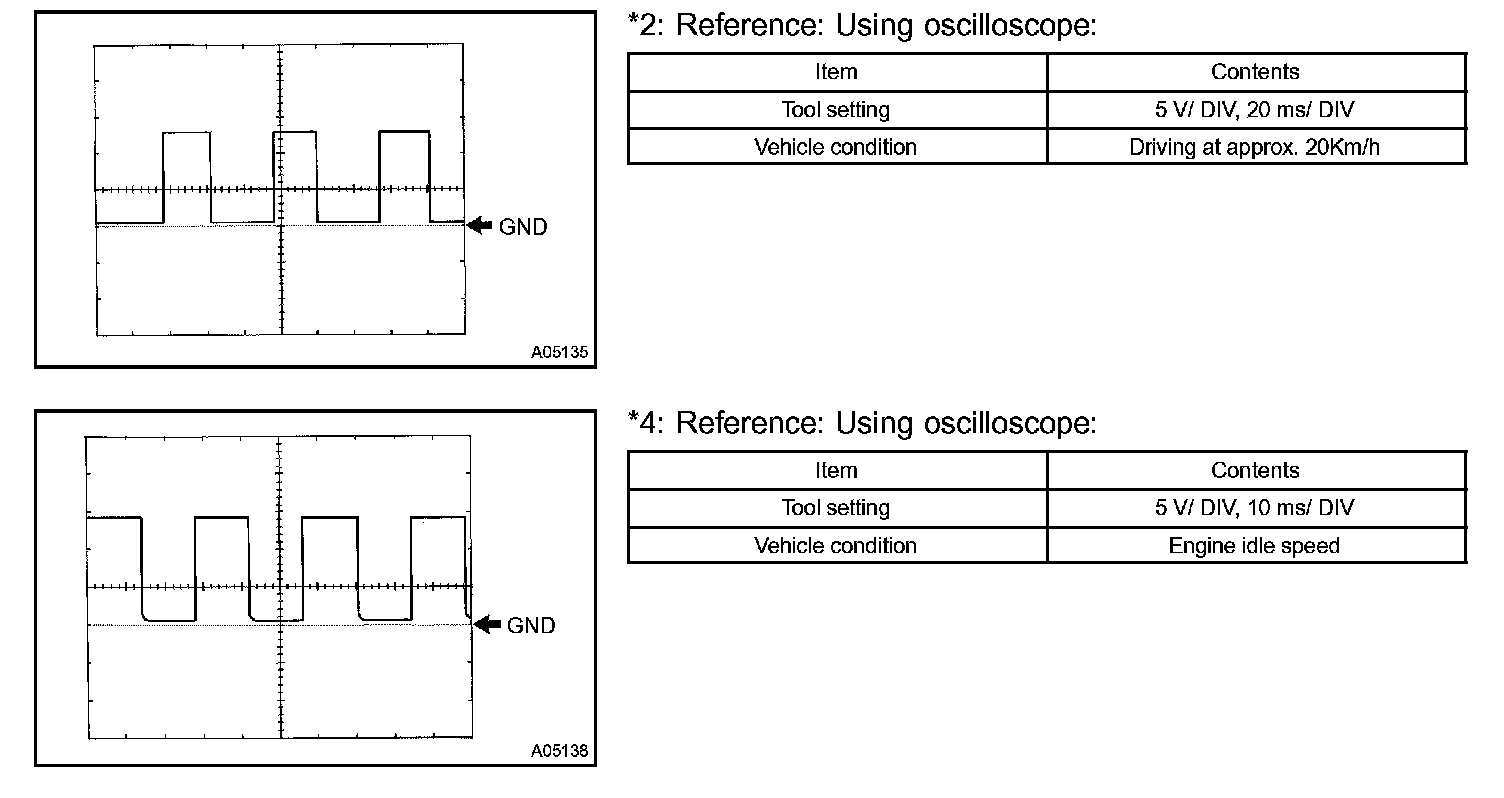

Oscilloscope Waveforms:



Oscilloscope Waveforms:

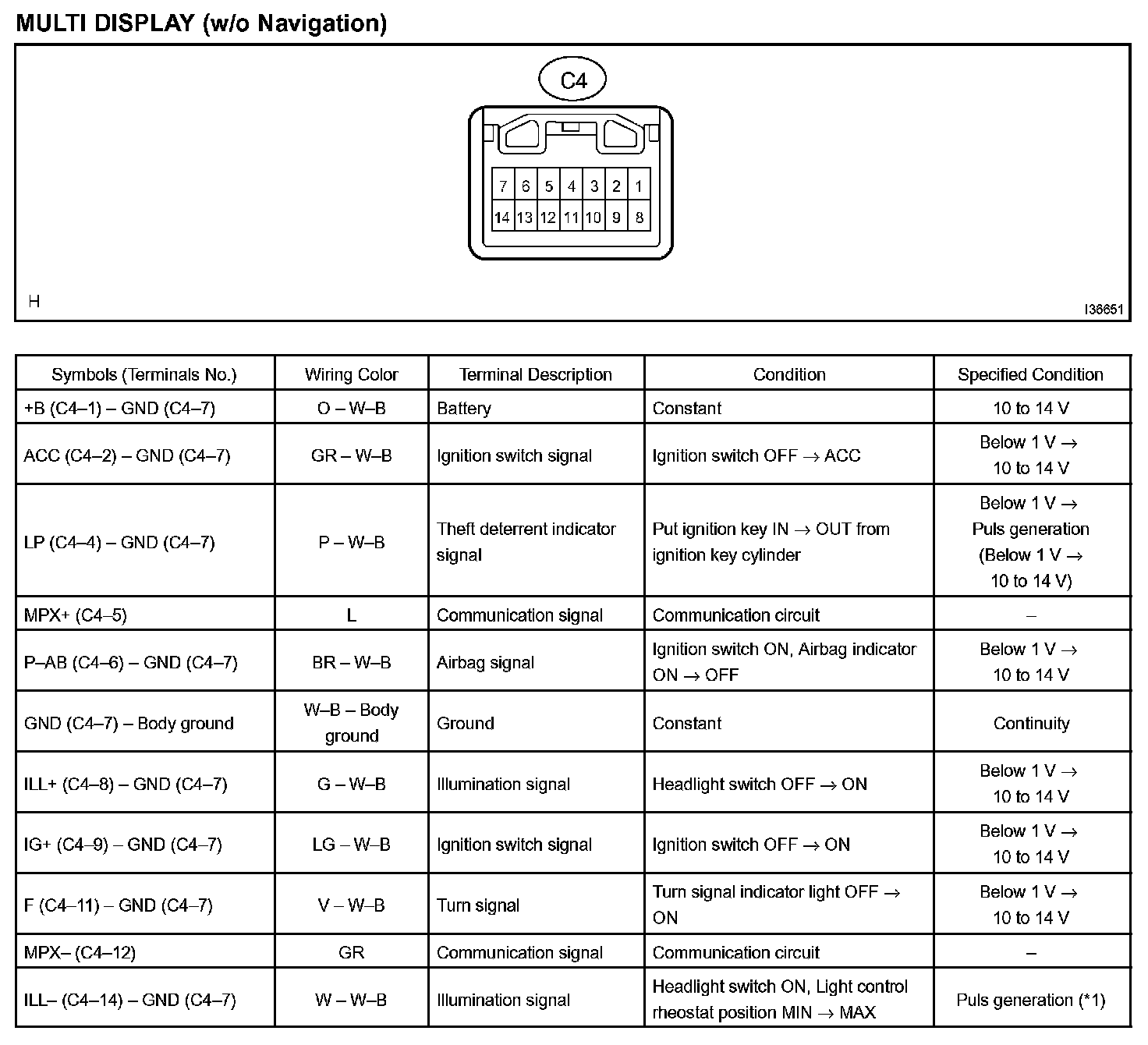

Terminals Of Control Module/Pinouts - Multi Display (w/o Navigation):



Oscilloscope Waveforms:
