Center Mounted Brake Lamp: Service and Repair
CENTER STOP LAMP ASSEMBLYREPLACEMENT
HINT:
1. REMOVE BACK DOOR TRIM BOARD LH (W/ POWER BACK DOOR)
2. REMOVE BACK WINDOW PANEL TRIM UPPER
3. REMOVE BACK DOOR TRIM COVER LH (W/ POWER BACK DOOR)
4. REMOVE BACK DOOR TRIM COVER RH (W/ POWER BACK DOOR)
5. REMOVE REAR SPOILER (W/ AIR SUSPENSION)
6. REMOVE REAR SPOILER (W/O AIR SUSPENSION)
7. REMOVE CENTER STOP LAMP ASSEMBLY

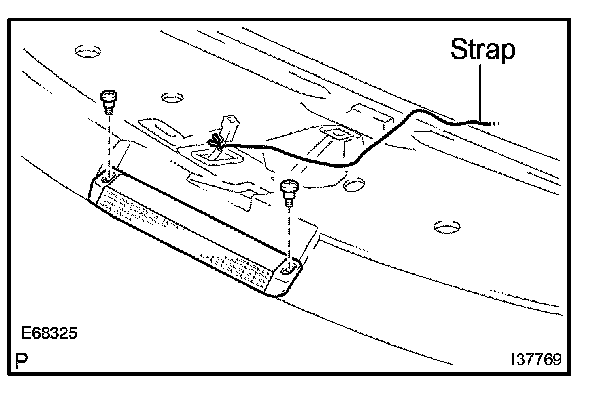

a. Install the strap to the connector of the center stop lamp assembly.
b. Remove the 2 screws.
c. Pass the connector through the inside of the rear spoiler and remove the center stop lamp assembly.
HINT: Leave the strap inside the rear spoiler.
