Lighting and Horns: Description and Operation

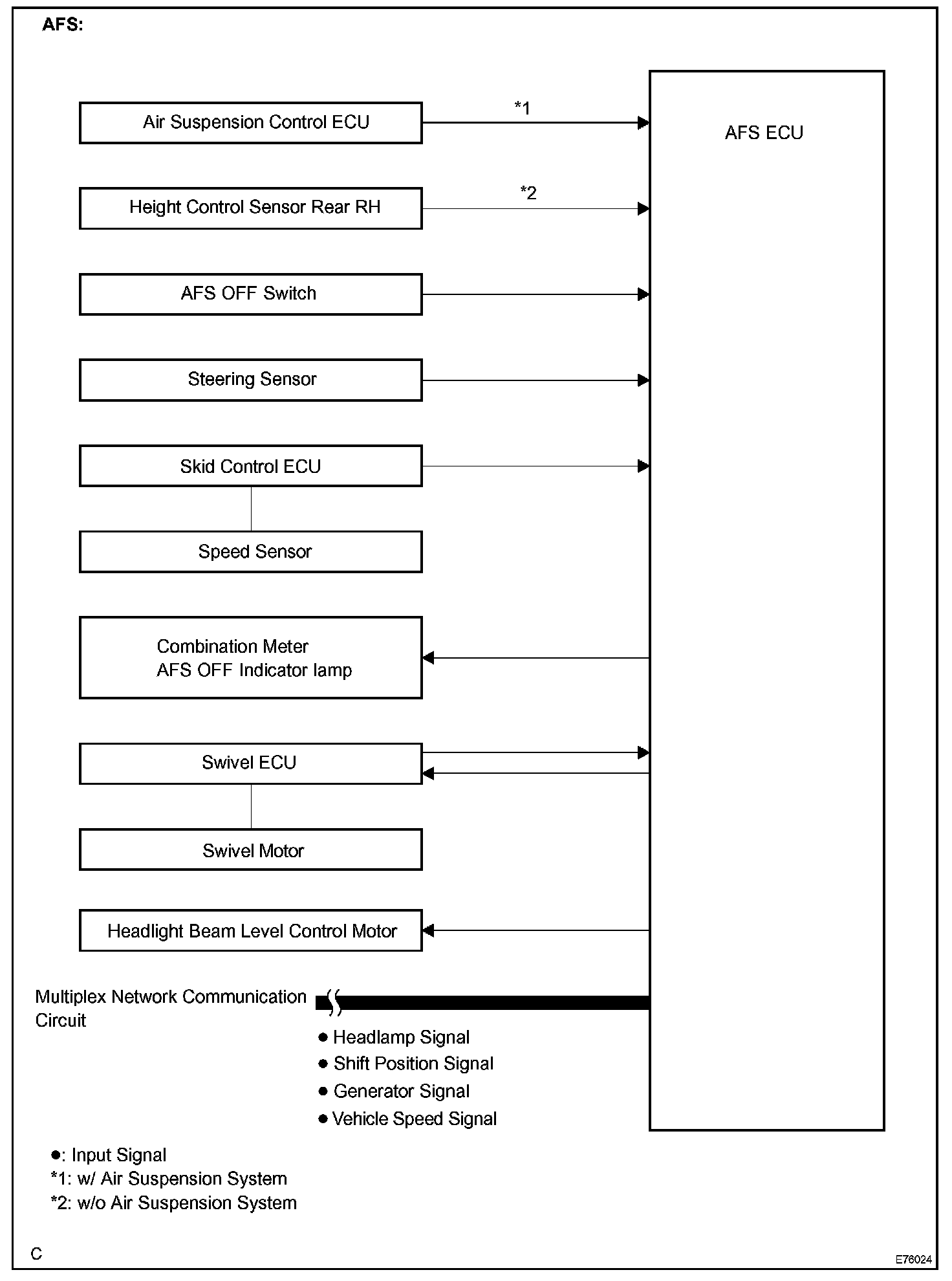

System Diagram:

SYSTEM DESCRIPTION
1. AFS (Adaptive Front-Lighting System)
a. The AFS operates to illuminate the best position for smooth driving by projecting the low beam depending on the vehicle speed and steering angle.
b. Standard Operation

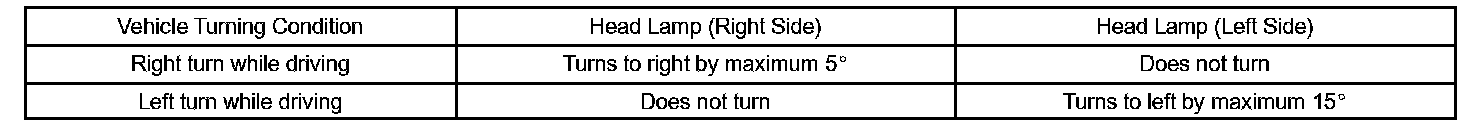

1. The AFS ECU moves the low beam in the headlamp considering the vehicle running condition, etc.

c. Start-up Conditions

1. The AFS starts operating when the following conditions are met:

HINT:
- The AFS continues operation as long as vehicle speed is kept above 6 km/h (3.6 mph) when operation has started once after vehicle speed reaches 30 km/h (19 mph) or more.
- The AFS continues operation as long as steering angle is kept at 10 or more when operation has started once after steering angle reaches 12 or more.

d. Operation Stop Condition

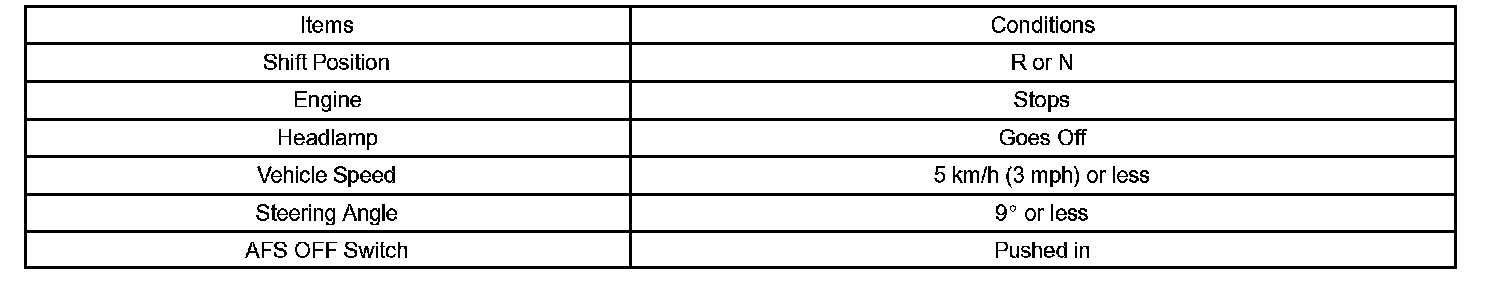

1. The AFS stops operating if any of the following condition are met:
