Map Light: Testing and Inspection







MAP LAMP ASSEMBLY
a. Inspect map lamp assembly in the overhead J/B.

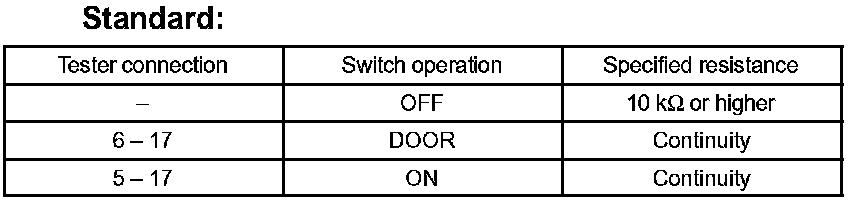

1. Measure the resistance according to the value(s) in the table.
