Pinout Values and Diagnostic Parameters

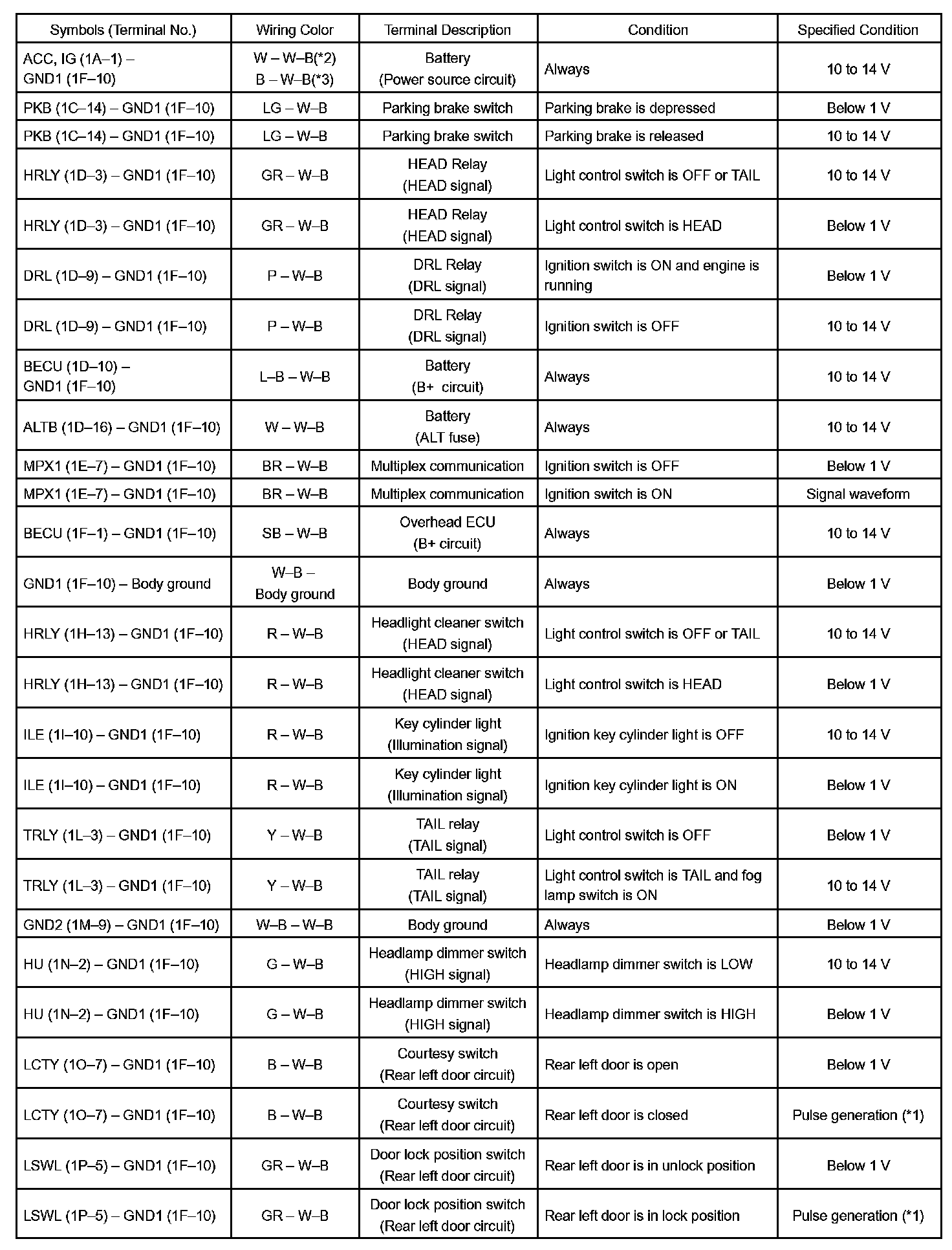

Terminals Of Control Module/Pinouts - Instrument Panel Junction Block Assy (Multiplex Network Body ECU) Part 1:

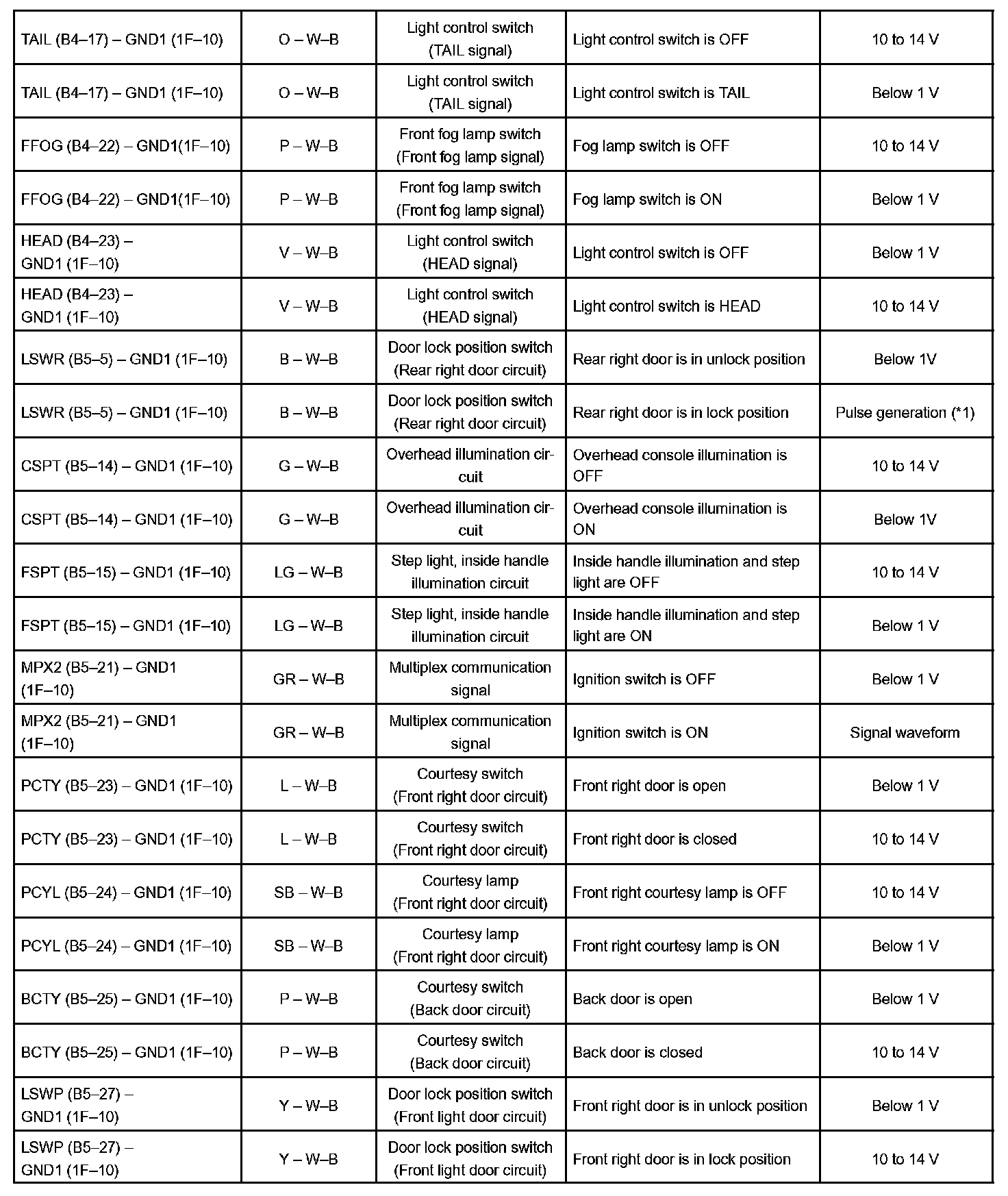

Terminals Of Control Module/Pinouts - Instrument Panel Junction Block Assy (Multiplex Network Body ECU) Part 2:

Terminals Of Control Module/Pinouts - Instrument Panel Junction Block Assy (Multiplex Network Body ECU) Part 3:

Terminals Of Control Module/Pinouts - Instrument Panel Junction Block Assy (Multiplex Network Body ECU) Part 4:

Oscilloscope Waveforms:

Terminals Of Control Module/Pinouts - Headlight Beam Level Control ECU Part 1:

Terminals Of Control Module/Pinouts - Headlight Beam Level Control ECU Part 2:

Oscilloscope Waveforms:

Terminals Of Control Module/Pinouts - AFS ECU Part 1:

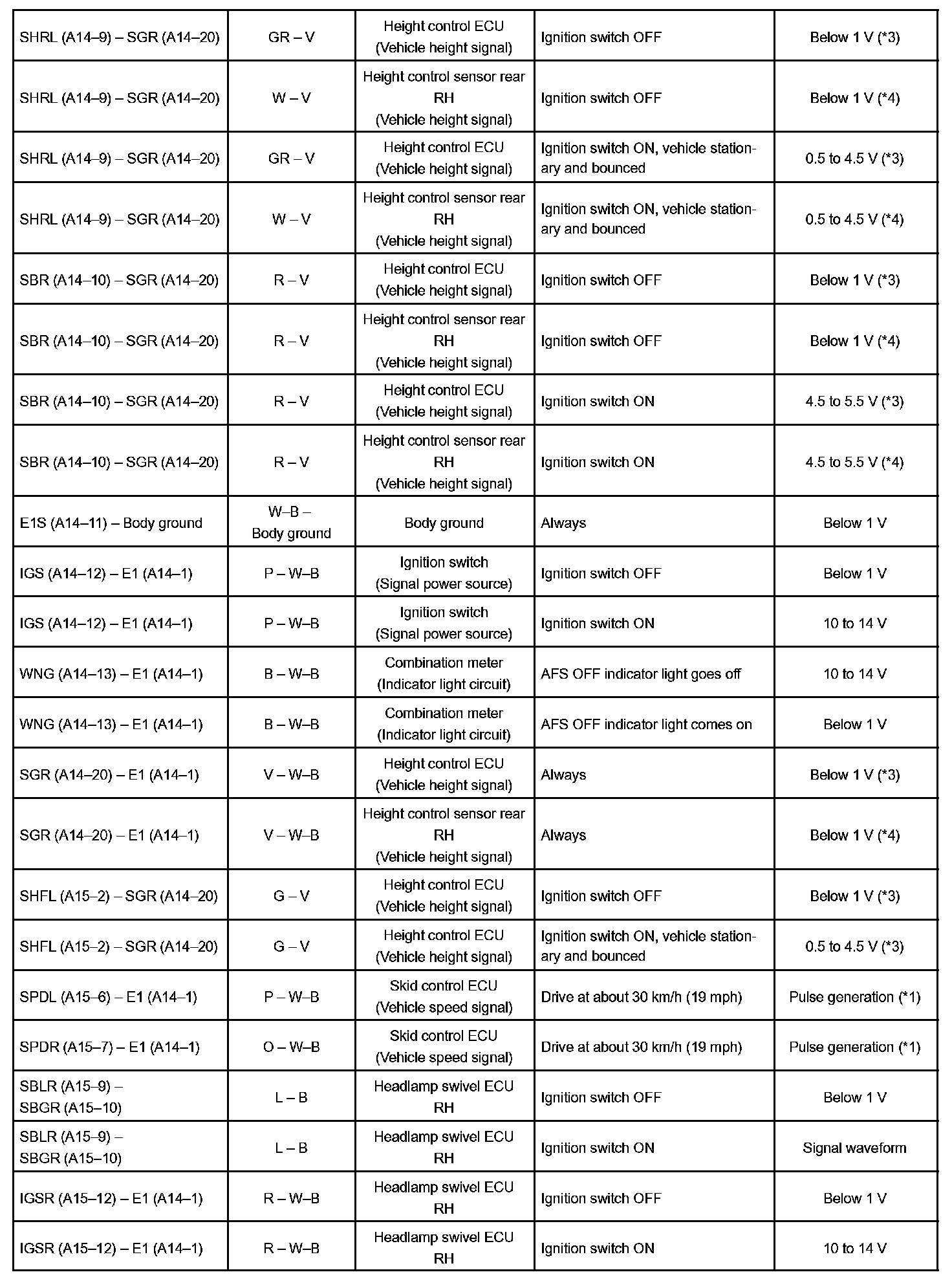

Terminals Of Control Module/Pinouts - AFS ECU Part 2:

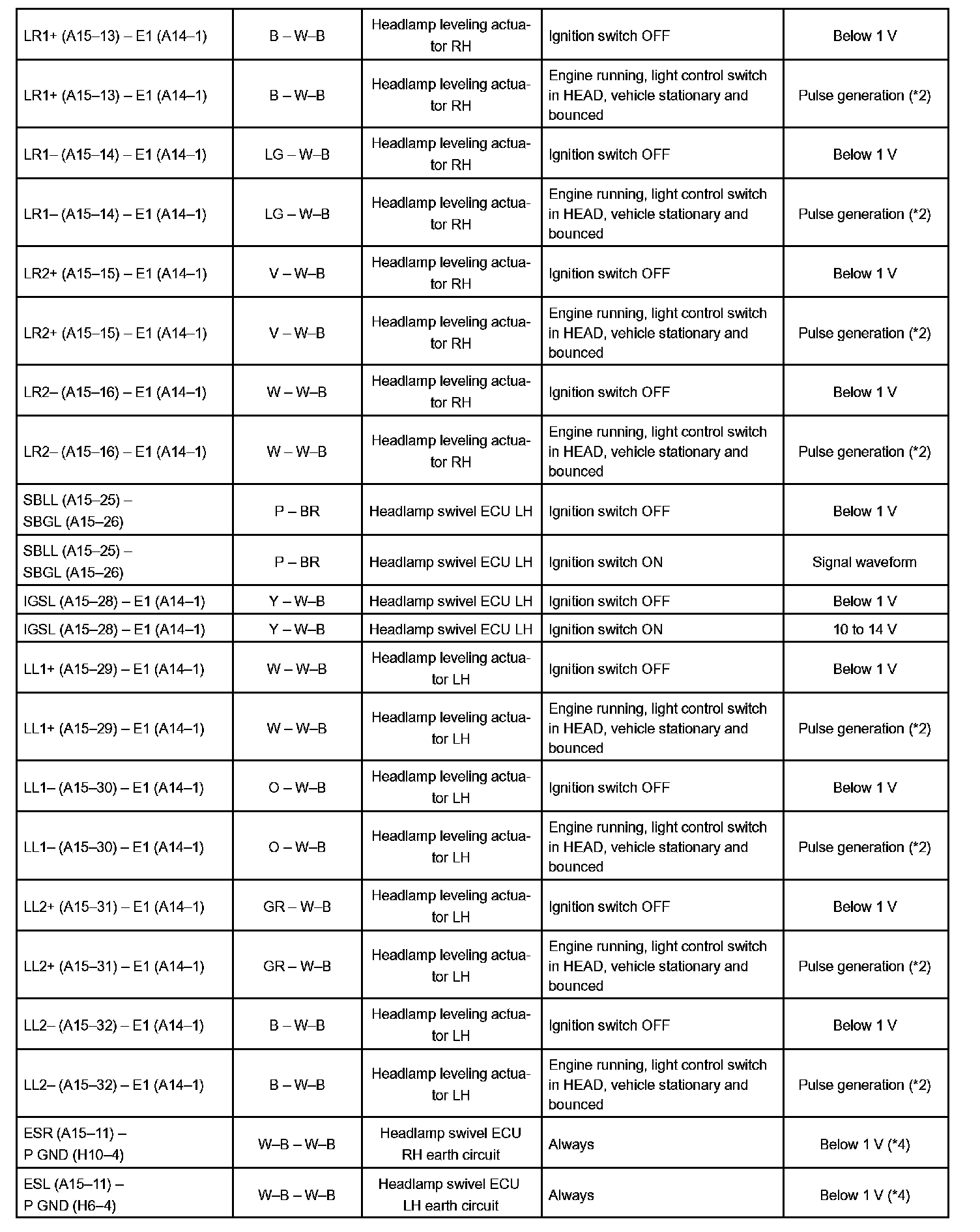

Terminals Of Control Module/Pinouts - AFS ECU Part 3:

Oscilloscope Waveforms:
