Fuse: Application and ID

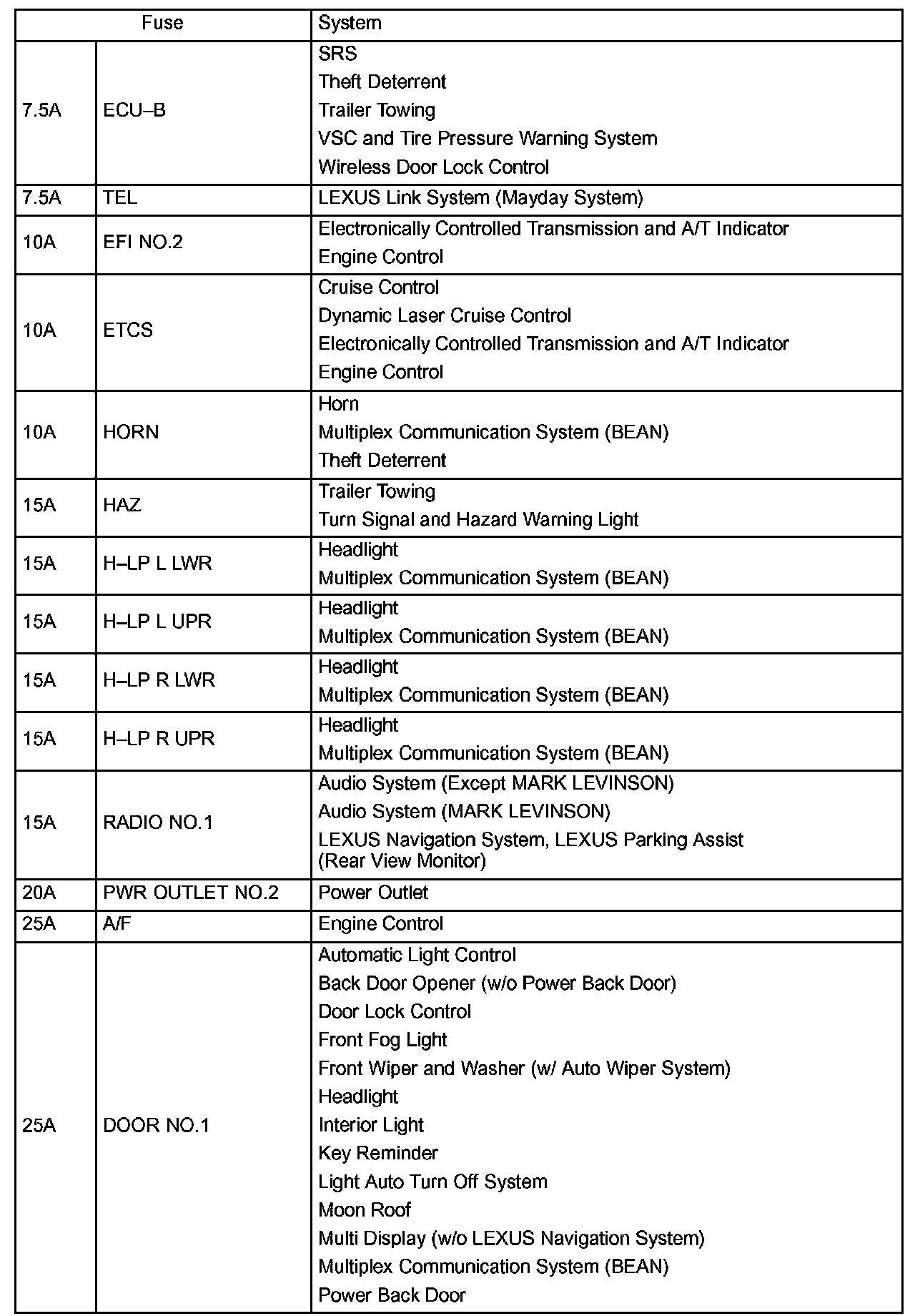

Instrument Panel J/B Part 1:

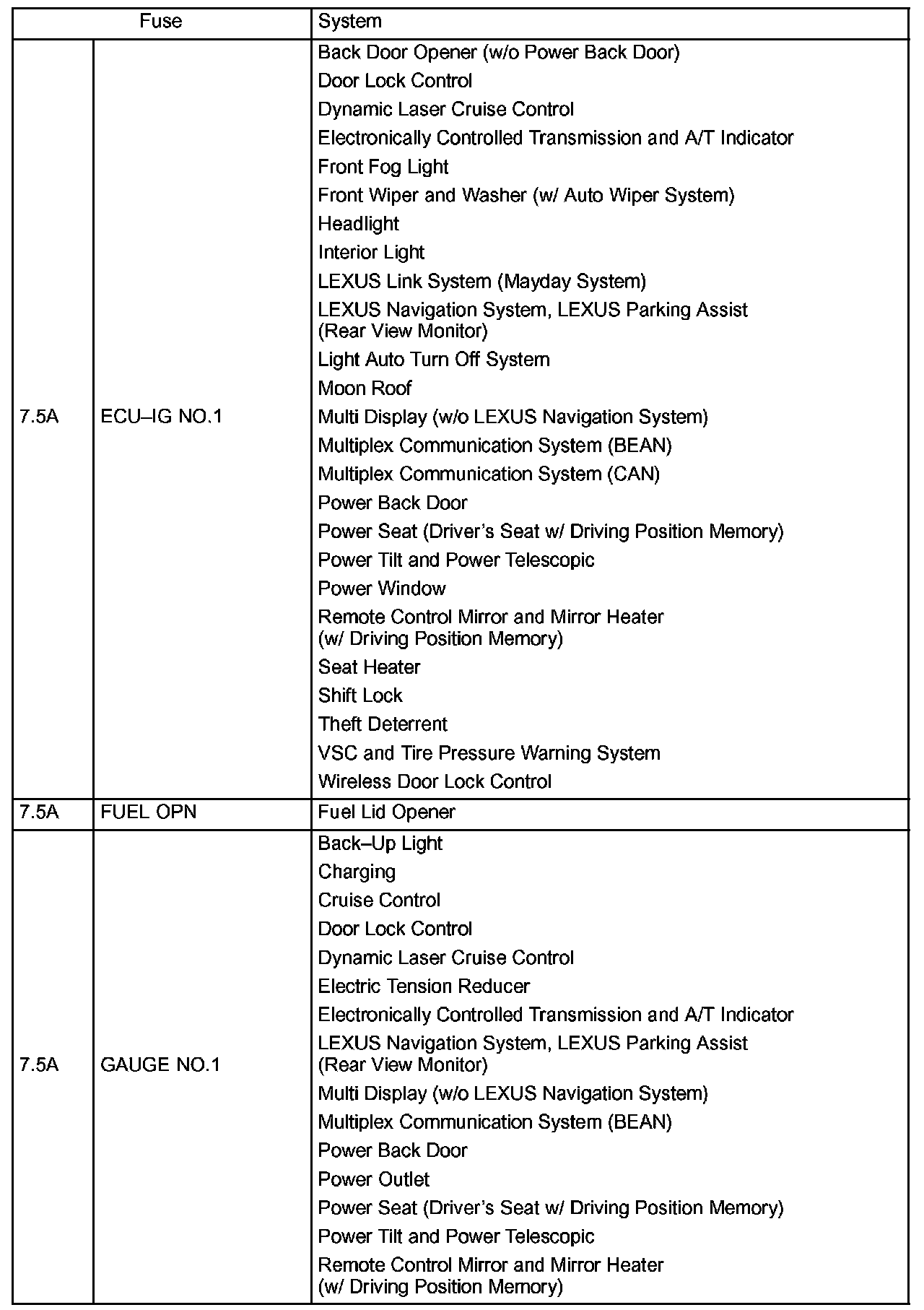

Instrument Panel J/B Part 2:

Instrument Panel J/B Part 3:

Instrument Panel J/B Part 4:

Instrument Panel J/B Part 5:

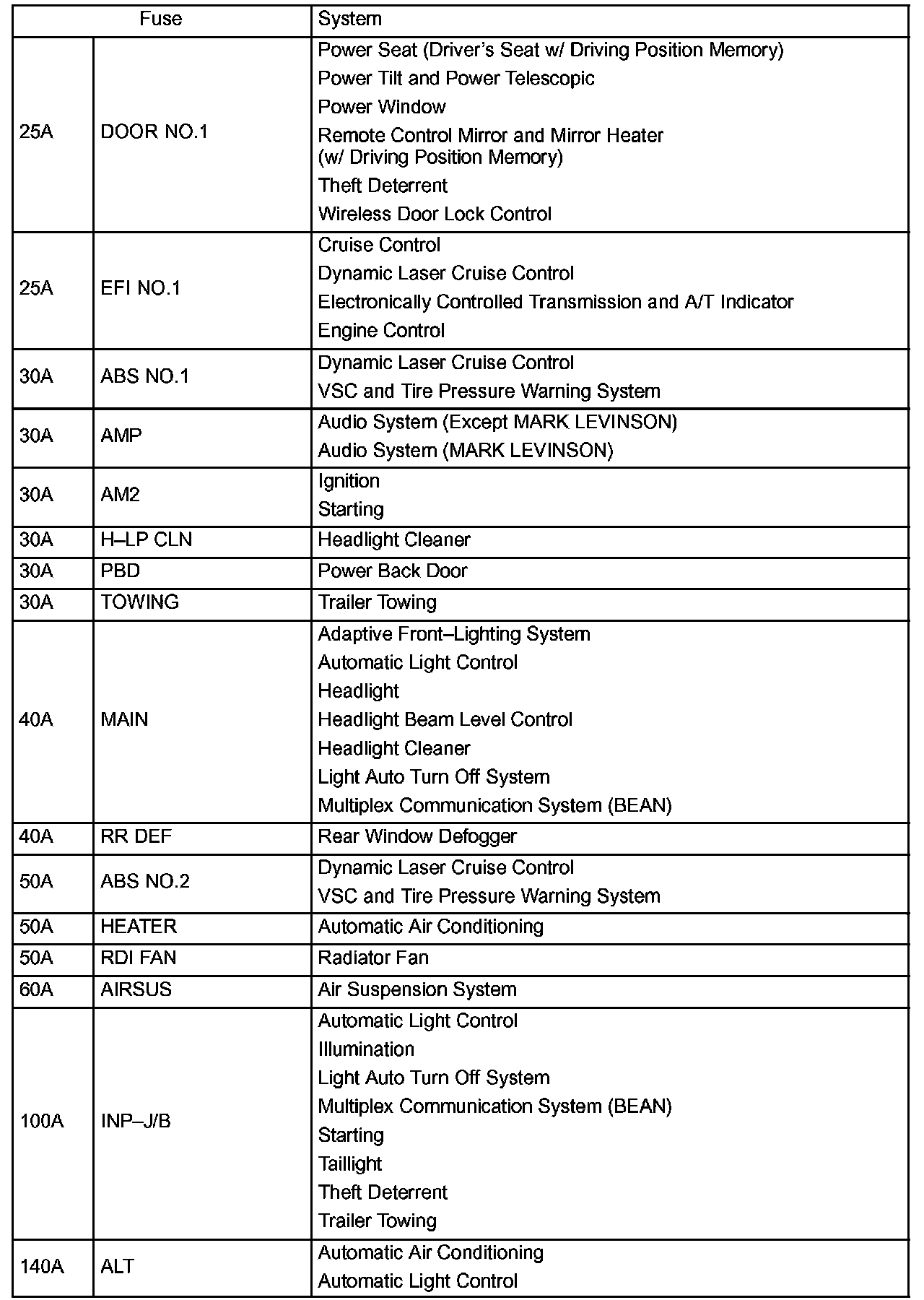

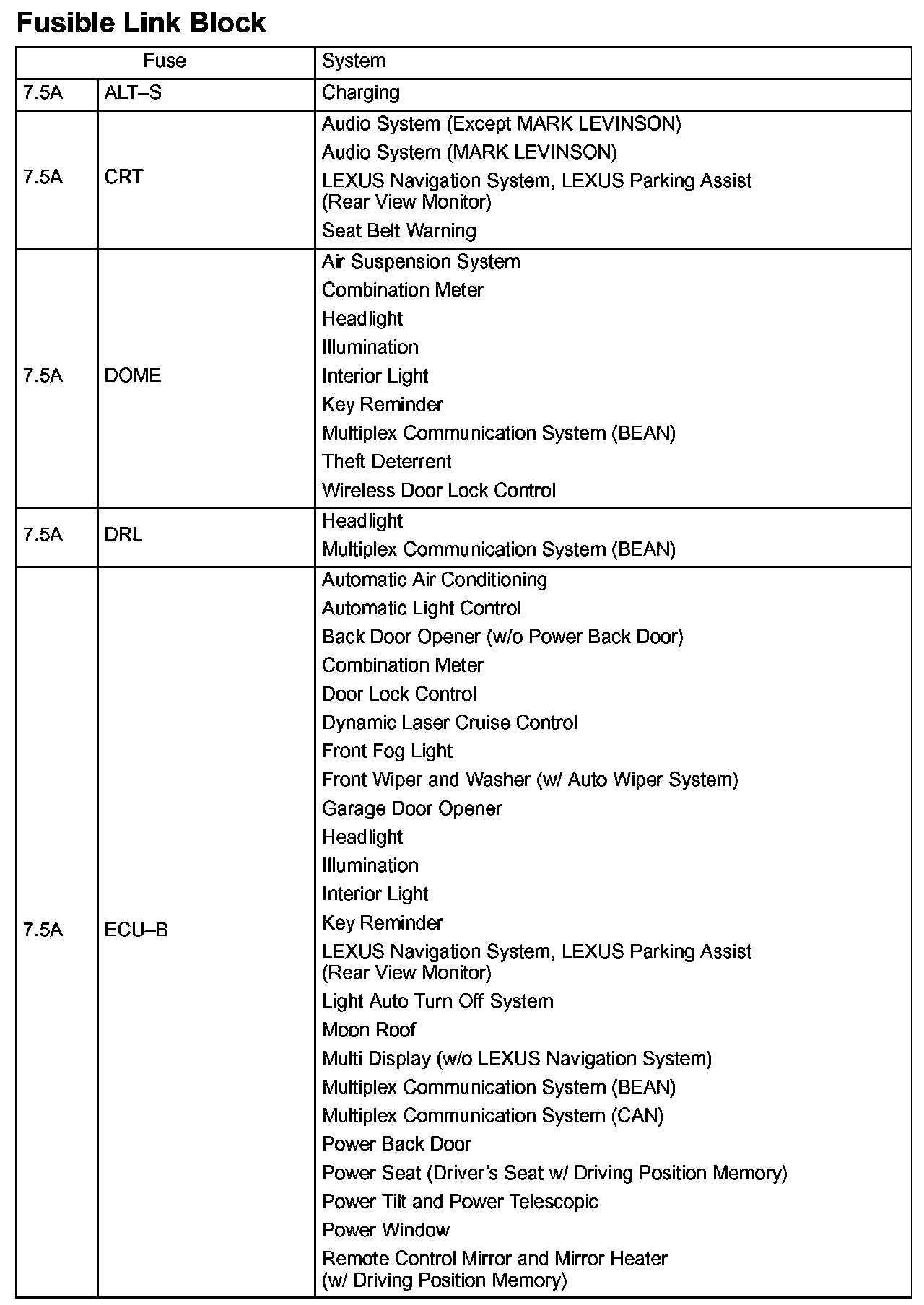

Fusible Link Block Part 1:

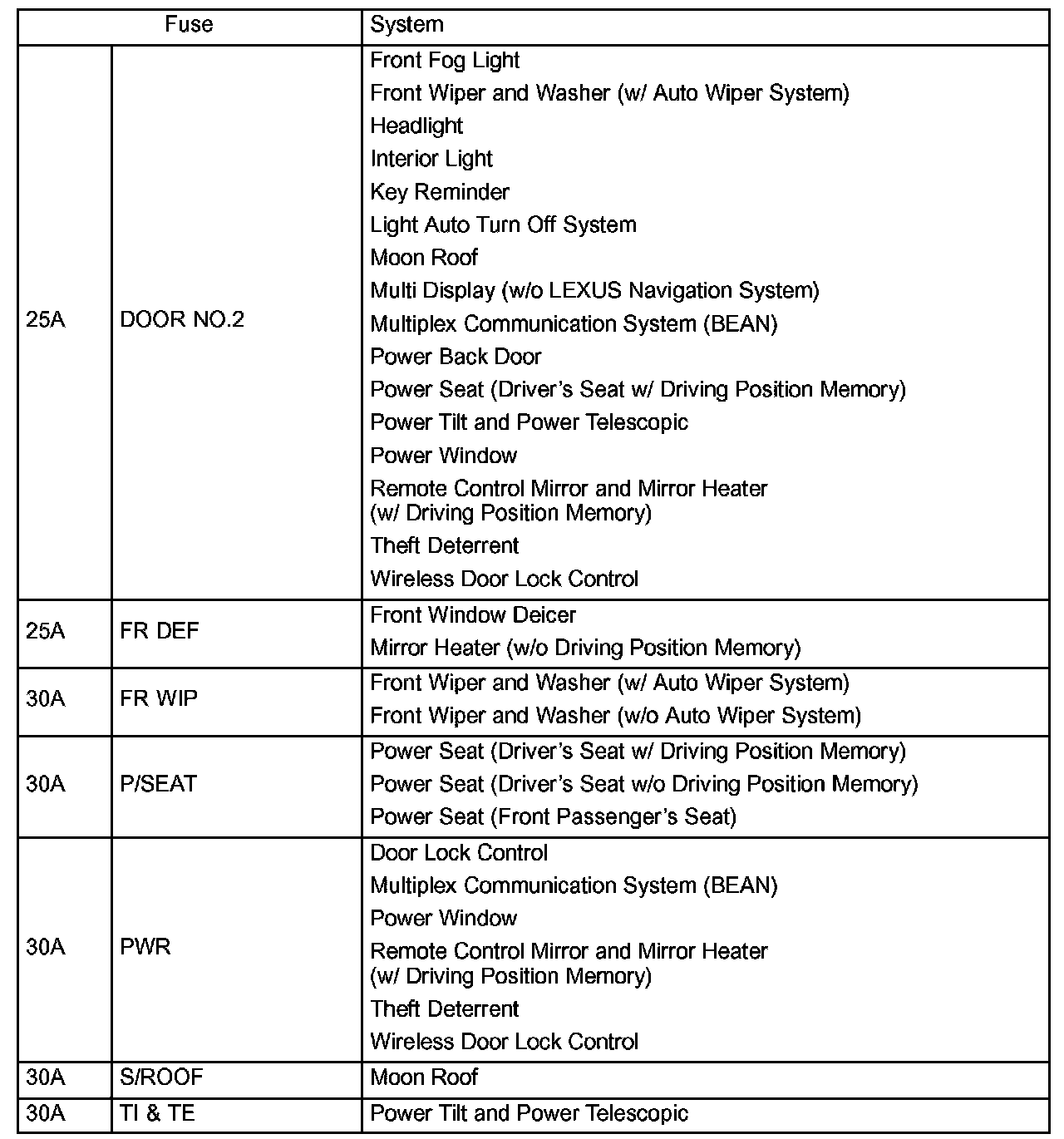

Fusible Link Block Part 2:

Fusible Link Block Part 3:

Fusible Link Block Part 4:
