Charging System: Service Precautions
CHARGING SYSTEM (3MZ FE)PRECAUTION

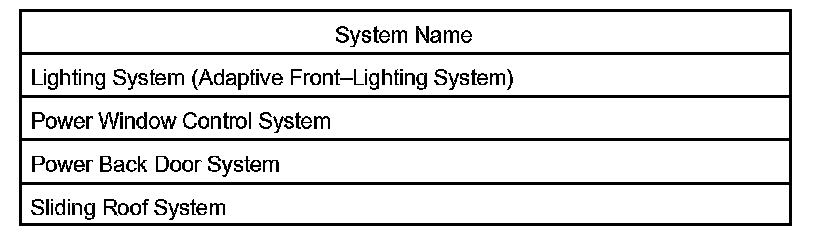

NOTE: When disconnecting the negative (-) battery terminal, initialize the systems shown in the table after the terminal is reconnected.
1. Check that the battery cables are connected to the correct terminals.
2. Disconnect the battery cables when the battery is given a quick charge.
3. Do not perform tests with a high voltage insulation resistance tester.
4. Never disconnect the battery while the engine is running.
5. Check that the charging cable is tightened on terminal B of the generator and the fuse box.
