Accessories - Tow Hitch Weld Stud Torque

ACCESSORIES
AX001-05

Title:
TOWING RECEIVER HITCH WELD STUD

Models:
'04 - '05 RX 330

January 12, 2005

Introduction

The weld stud on the 2004 and 2005 model year RX 330 towing receiver hitch accessory bracket torque specification has changed.

Applicable Vehicles

^ 2004 - 2005 model year RX 330 vehicles equipped with Accessory Towing Receiver Hitch.

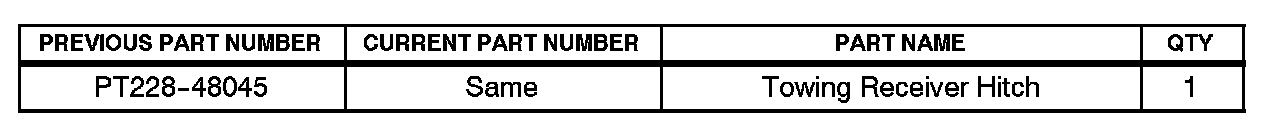

Parts Information

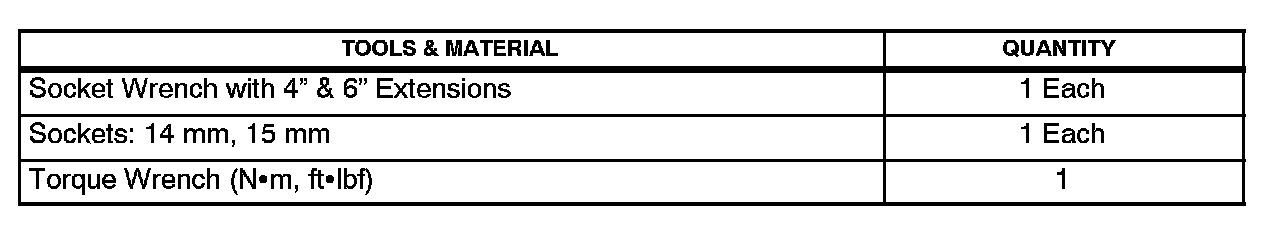

Required Tools & Material

Repair Procedure

Install nut to the following torque specification.

Torque: 6 N.m (27 ft.lbf)





Please use the revised torque specification (36 N.m [27 ft.lbf]) for this fastener (see illustration). Please refer to the installation instructions for the remaining fastener torque values.

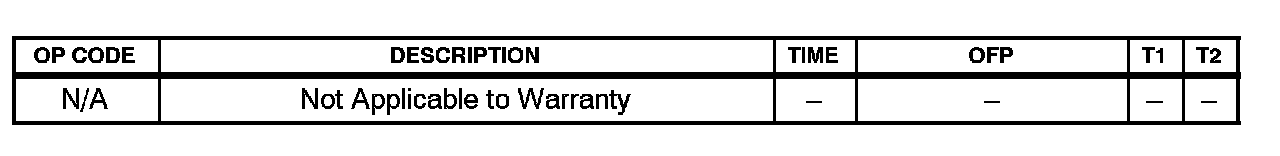

Warranty Information
