Canada - Towing System - Updated Receiver Hitch Weld Stud

Bulletin
TSB2071

Issue Date
January 07, 2005

Title
TOWING RECEIVER HITCH WELD STUD

Component
BODY COMPONENT

Models
'04 - '05 RX330

INTRODUCTION:
The weld stud on the 2004 and 2005 model year RX330 towing receiver hitch accessory bracket torque specification has changed.

APPLICABLE VEHICLES:
- 2004 - 2005 model year RX330 vehicles equipped with Accessory Towing Receiver Hitch.






PARTS INFORMATION:

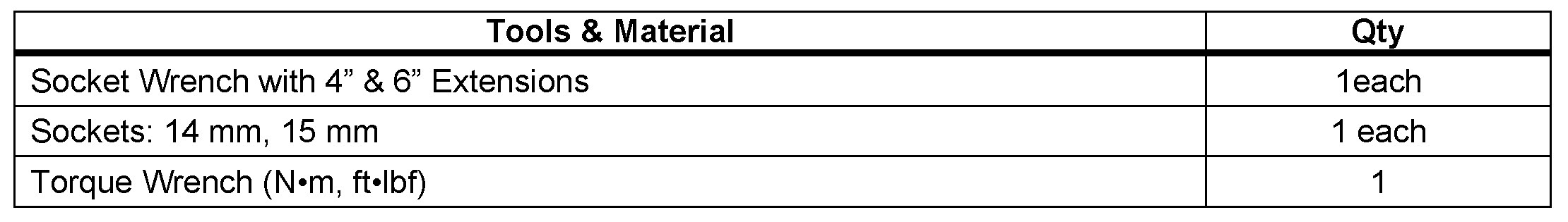

REQUIRED TOOLS & EQUIPMENT:

REPAIR PROCEDURE:






Install nut to the following torque specification.

Torque: 36 N-m (27 ft-lbf)

Please use the revised torque specification (36 N-m [27 ft-lbf]) for this fastener (see illustration). Please refer to the installation instructions for the remaining fastener torque values.

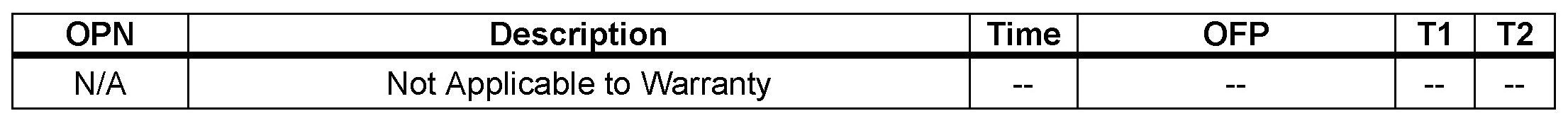

WARRANTY INFORMATION:
