Windshield Washer Spray Nozzle: Testing and Inspection
WASHER NOZZLE SUB-ASSEMBLYINSPECTION
1. INSPECT WASHER NOZZLE SUB-ASSEMBLY

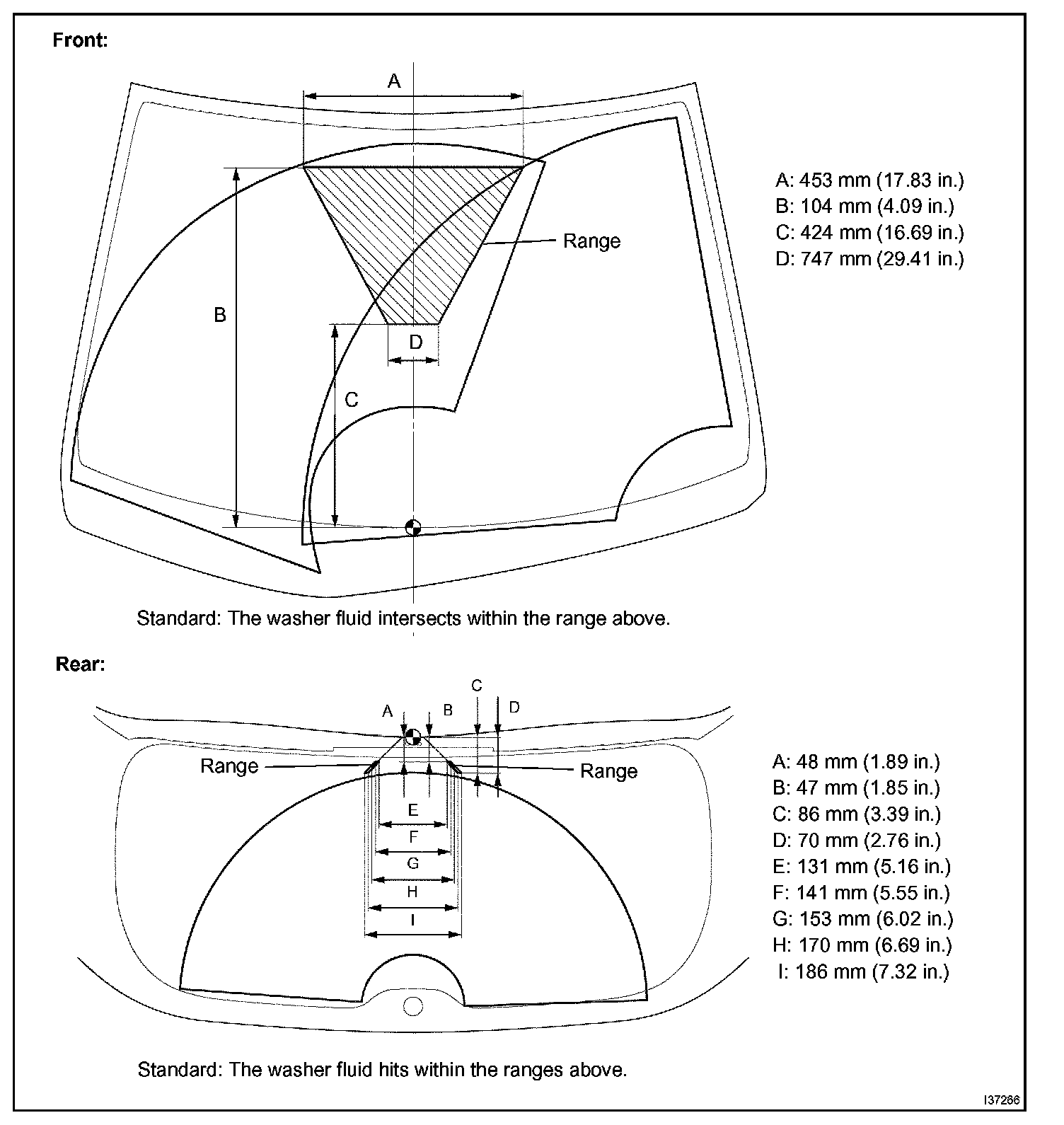

a. With the engine running, check that the washer fluid hits in the range indicated by the hatched lines on the windshield and the rear window.
HINT: This washer nozzle does not have an adjustment function because this nozzle has a spray style.
