Wiper Switch: Service and Repair
WINDSHIELD WIPER SWITCH ASSEMBLYREPLACEMENT
1. PRECAUTION
2. SEPARATE BATTERY NEGATIVE TERMINAL
3. REMOVE STEERING COLUMN COVER LWR
4. REMOVE STEERING COLUMN COVER UPR
5. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY
a. Disconnect the connector.

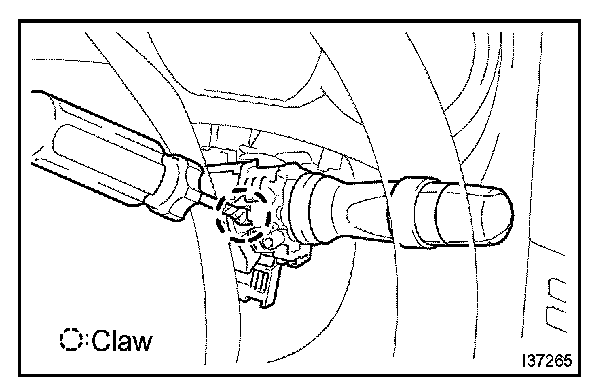

b. Using a screwdriver, disengage the claw and pull out the windshield wiper switch assembly.
NOTE: The claw will be broken if pressed to a hard.
HINT: Tape up the screwdriver tip before use.
