B0101

DTC B0101/14 Open in Driver Side Squib Circuit

DESCRIPTION

DTC Detecting Condition:

The driver side squib circuit consists of the center airbag sensor assembly, the spiral cable and the steering pad.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0101/14 is recorded when an open circuit is detected in the driver side squib circuit.

Wiring Diagram:

Step 1:

Step 1(continued)-3:

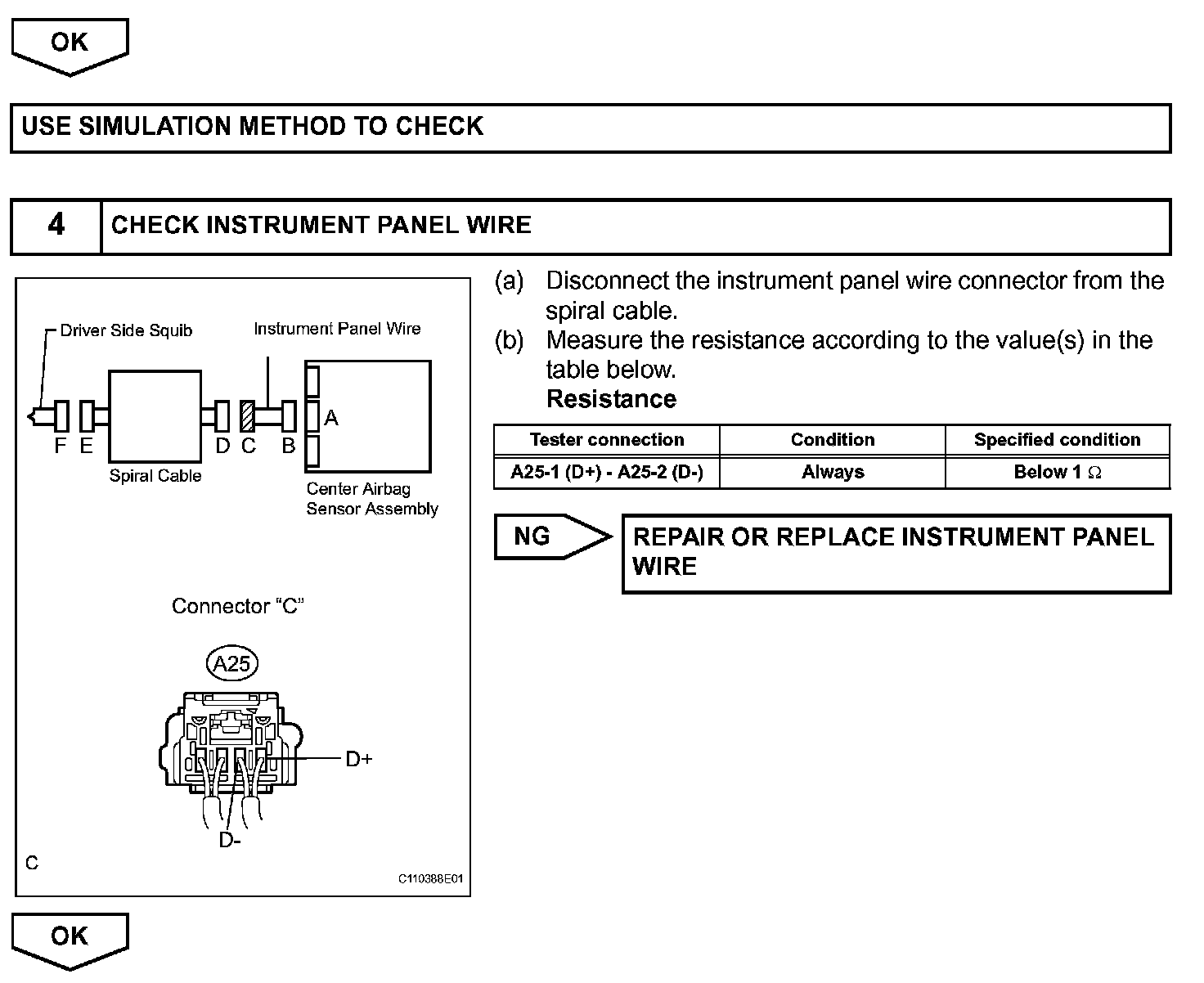

Step 3(continued)-4:

Step 5:

INSPECTION PROCEDURE
