DTC B0113/42 Short to B+ in Side Squib RH Circuit

DESCRIPTION

DTC Detecting Condition:

The side squib RH circuit consists of the center airbag sensor assembly and the front seat side airbag assembly RH (side squib RH).

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0113/42 is recorded when a short to B+ is detected in the side squib RH circuit.

Wiring Diagram:

Step 1:

Step 1(continued)-3:

Step 3(continued):

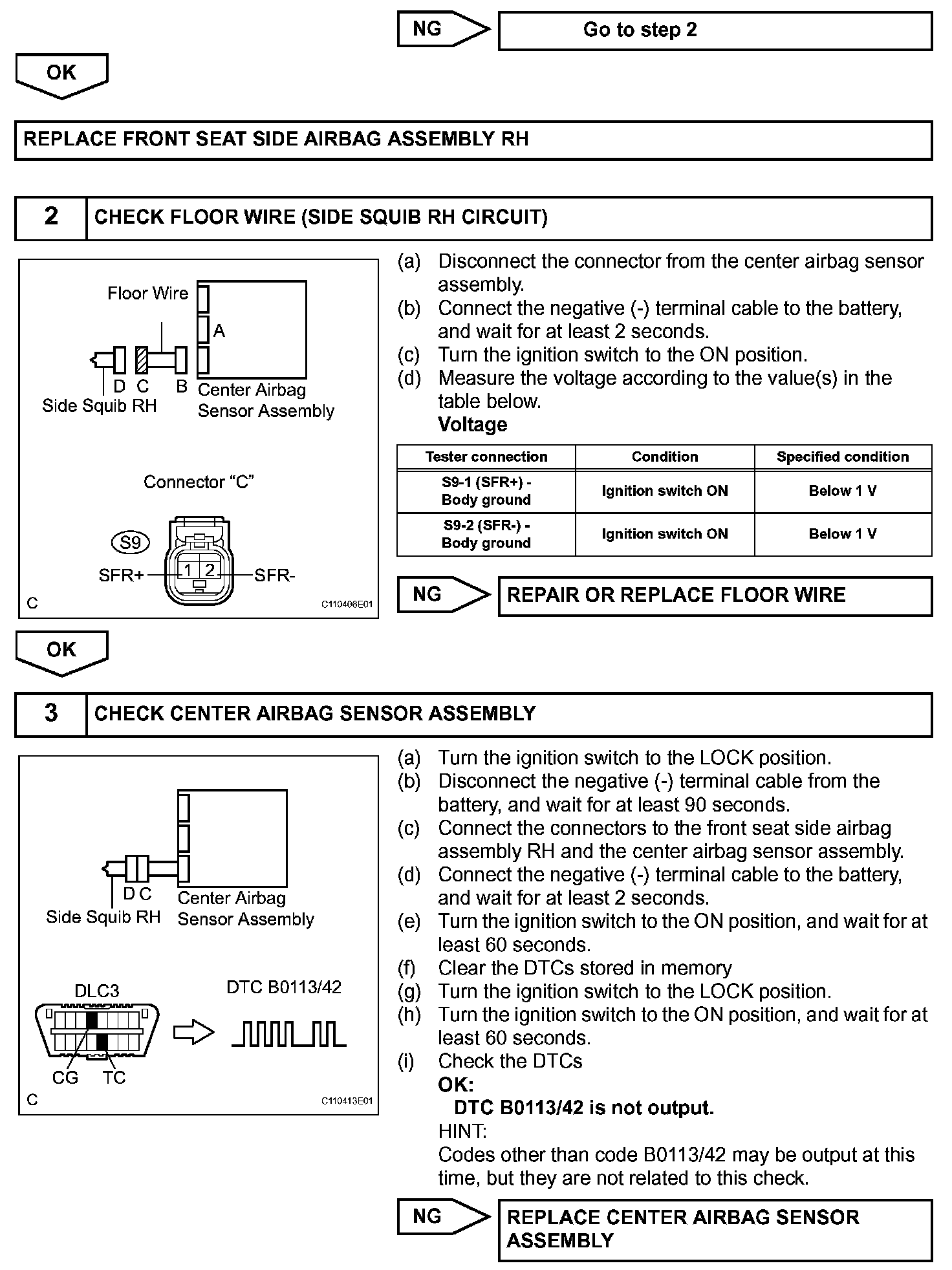

INSPECTION PROCEDURE
