B1166

DTC B1166/88 Open in Curtain Shield Squib LH Circuit

DESCRIPTION

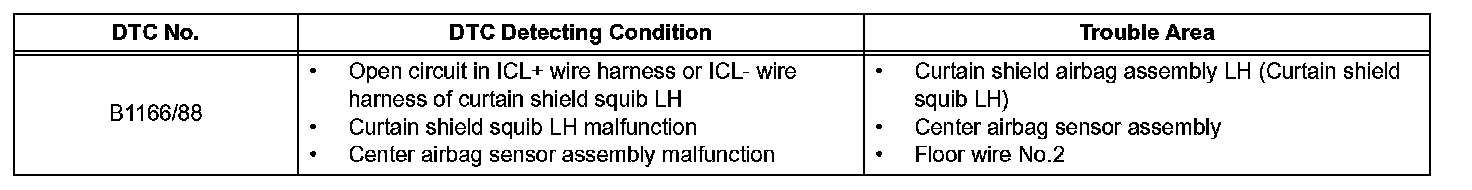

DTC Detecting Condition:

The curtain shield squib LH circuit consists of the center airbag sensor assembly and the curtain shield airbag assembly LH.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1166/88 is recorded when an open circuit is detected in the curtain shield squib LH circuit.

Wiring Diagram:

Step 1:

Step 1(continued)-3:

Step 3(continued):

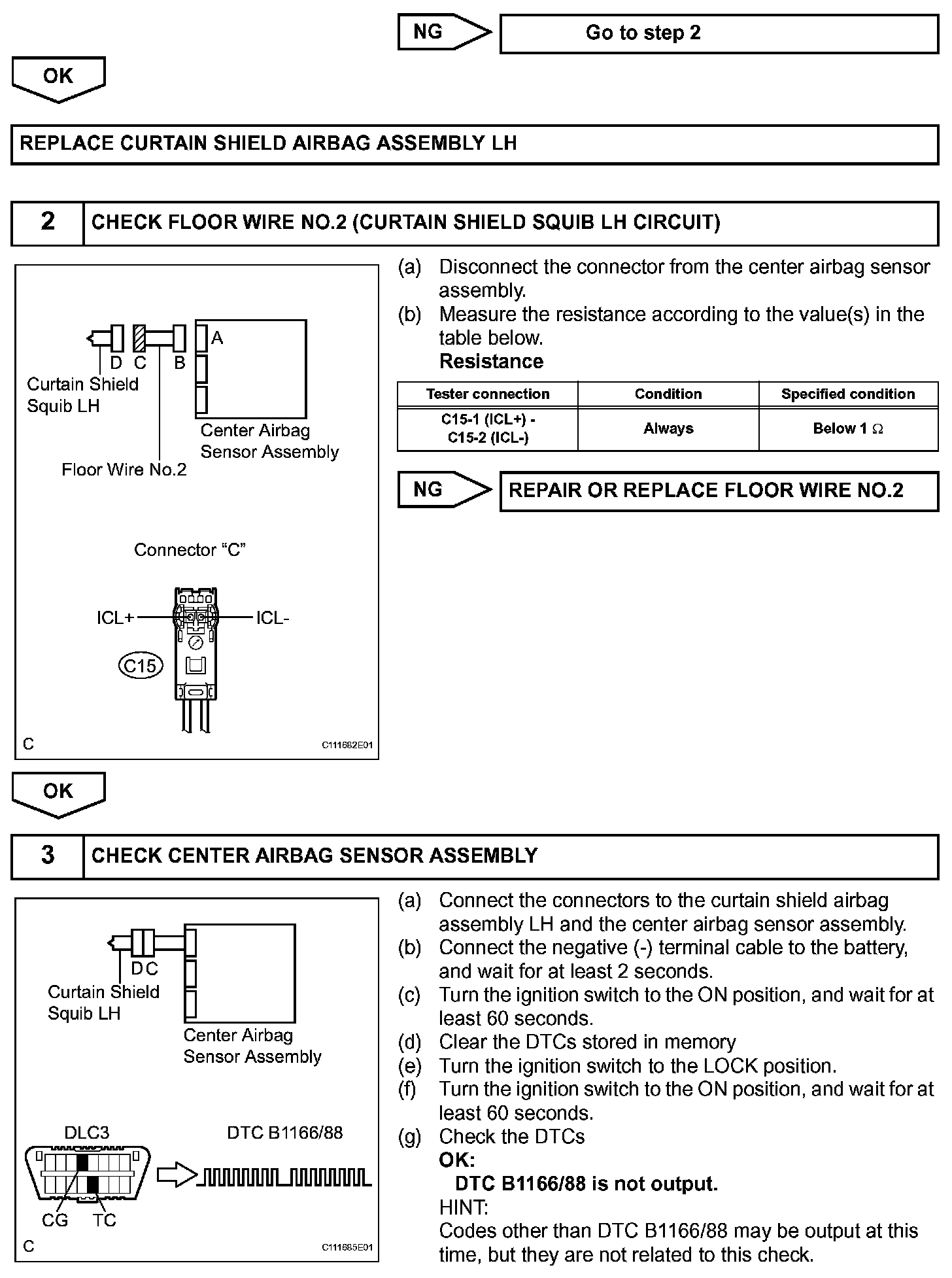

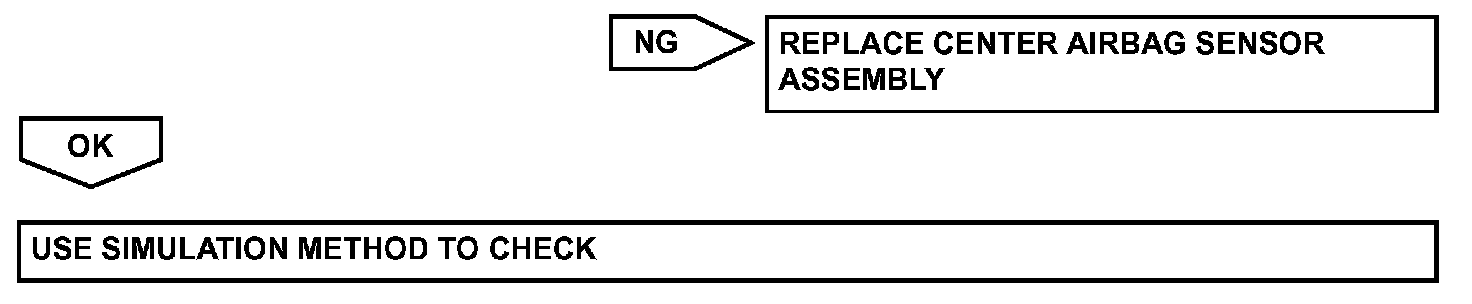

INSPECTION PROCEDURE
