B1244

DTC B1244 Light Sensor Circuit Malfunction

DESCRIPTION

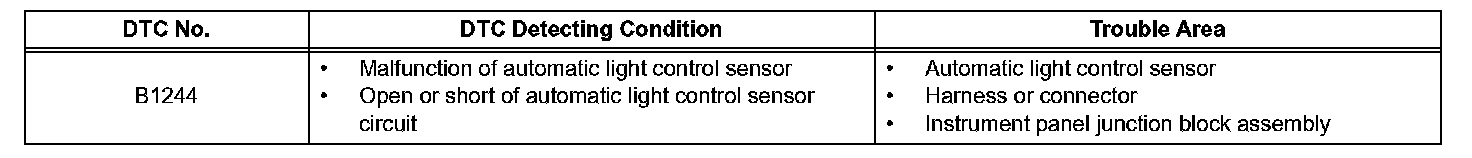

DTC Detecting Condition:

This DTC is output when failure in the light sensor circuit is detected.

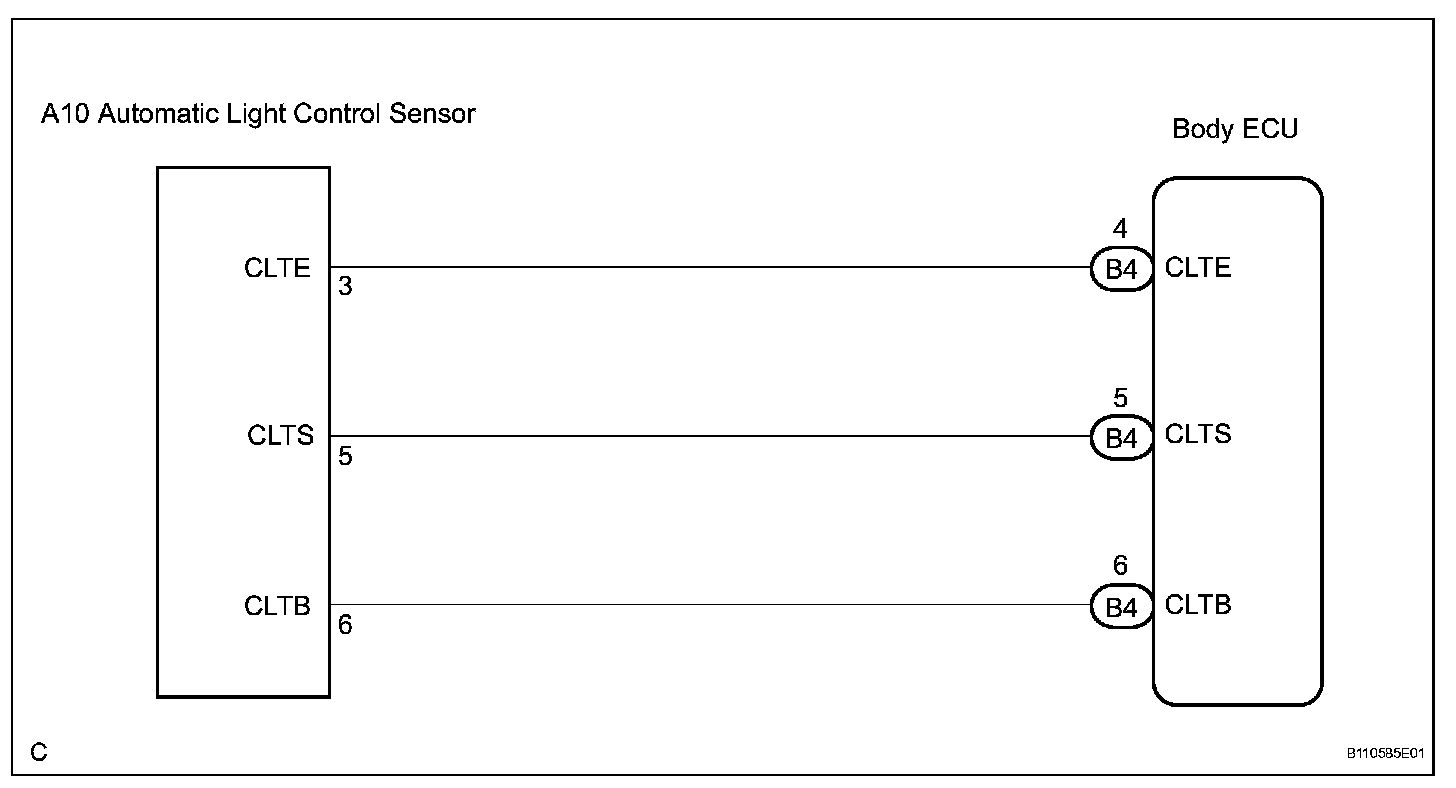

Wiring Diagram:

Step 1:

Step 1(continued)-3:

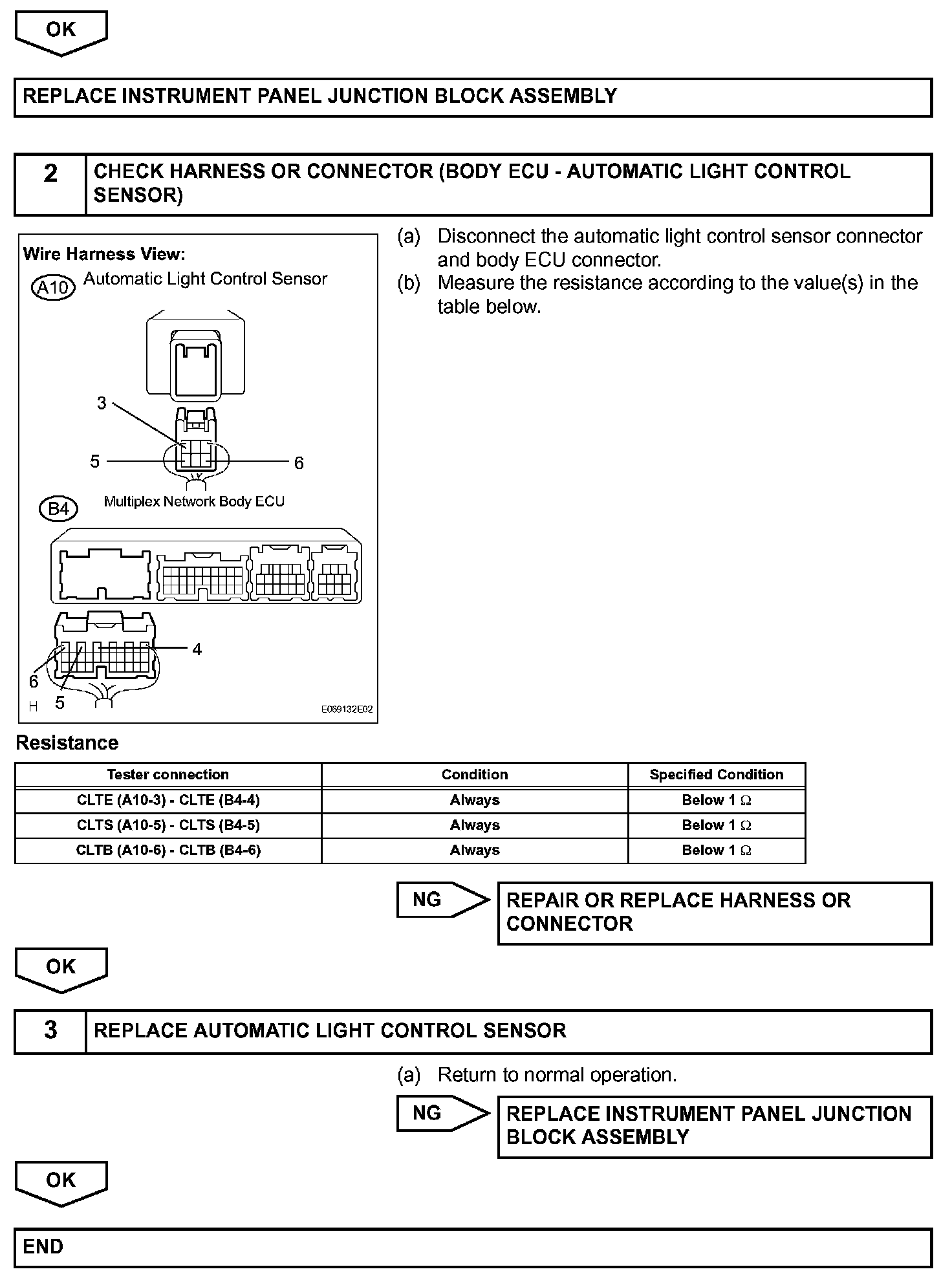

INSPECTION PROCEDURE
