B1287

DTC B1287 Back Door ECU Communication Stop

DESCRIPTION

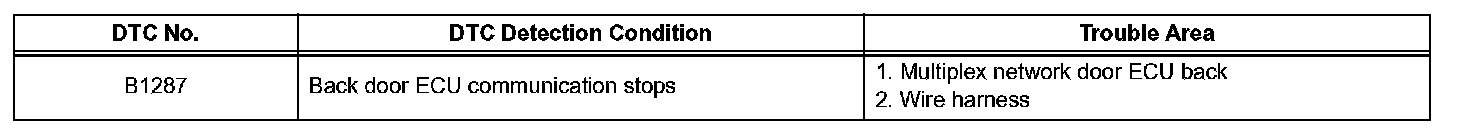

DTC Detection Condition:

DTC B1287 is output when communication between the multiplex network door ECU back (back door ECU) and the body ECU stops for more than 10 seconds.

Wiring Diagram:

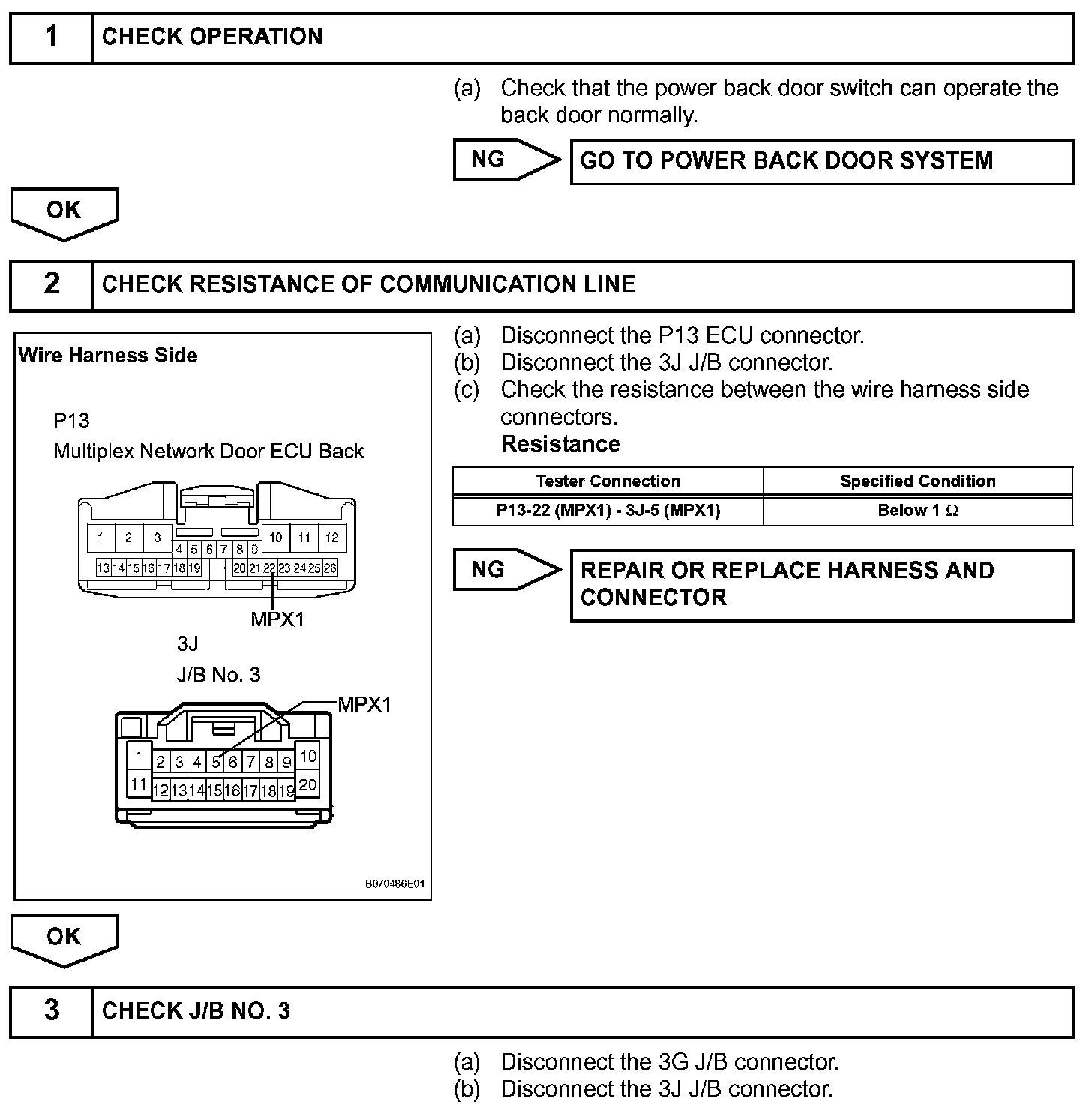

Step 1-3:

Step 3(continued):

INSPECTION PROCEDURE
