DTC B1650/49 Short in Driver Side Knee Airbag Squib Circuit

DESCRIPTION

DTC Detecting Condition:

The driver side knee airbag squib circuit consists of the center airbag sensor assembly and the driver side knee airbag assembly.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1650/49 is recorded when a short circuit is detected in the driver side knee airbag squib circuit.

Wiring Diagram:

Step 1-2:

Step 2(continued)-4:

Step 4(continued):

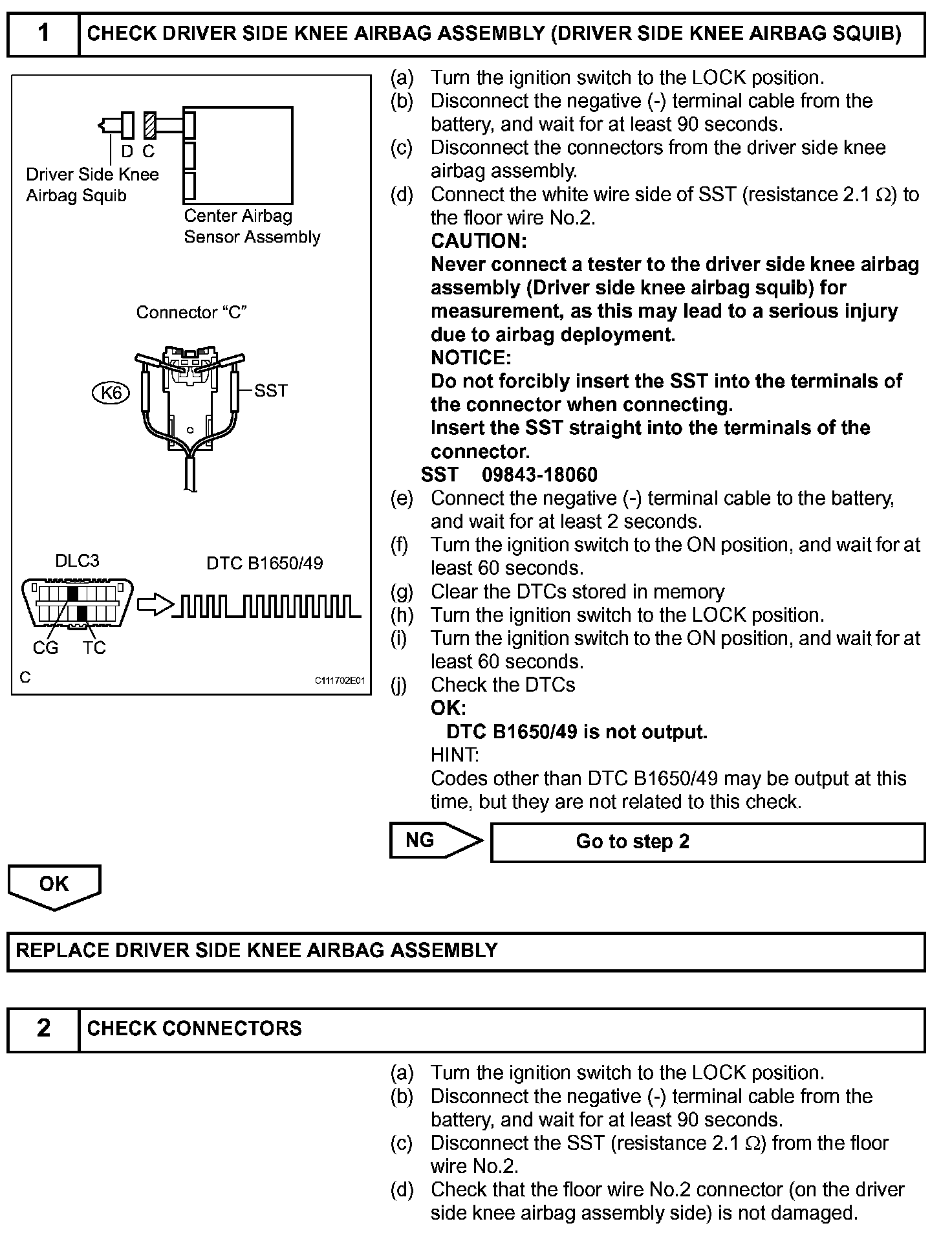

INSPECTION PROCEDURE
