B1652

DTC B1652/49 Short to GND in Driver Side Knee Airbag Squib Circuit

DESCRIPTION

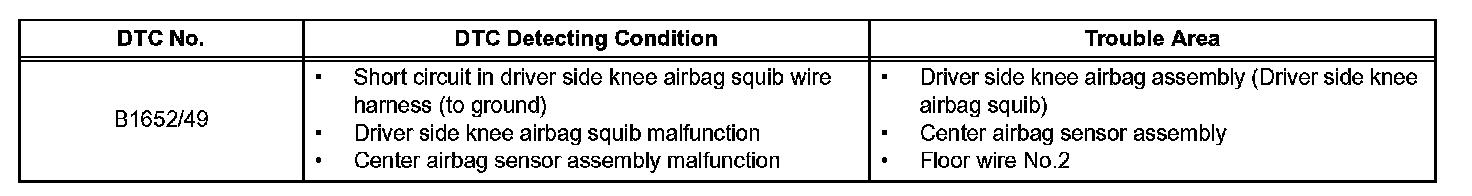

DTC Detecting Condition:

The driver side knee airbag squib circuit consists of the center airbag sensor assembly and the driver side knee airbag assembly.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1652/49 is recorded when a short to ground is detected in the driver side knee airbag squib circuit.

Wiring Diagram:

Step 1:

Step 1(continued)-3:

Step 3(continued):

INSPECTION PROCEDURE
