B1653

DTC B1653/49 Short to B+ in Driver Side Knee Airbag Squib Circuit

DESCRIPTION

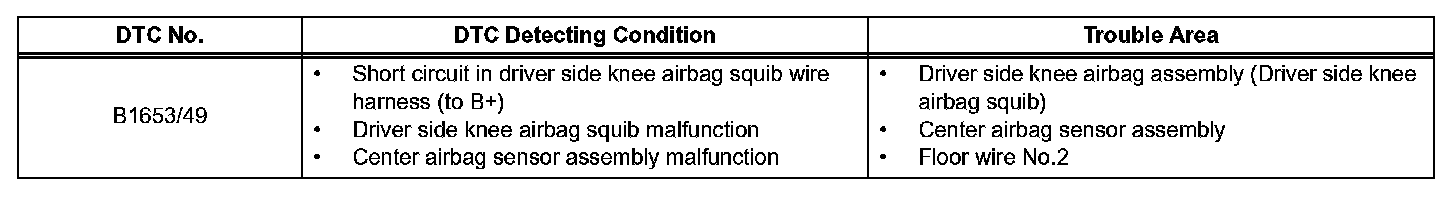

DTC Detecting Condition:

The driver side knee airbag squib circuit consists of the center airbag sensor assembly and the driver side knee airbag assembly.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1653/49 is recorded a when short to B+ is detected in the driver side knee airbag squib circuit.

Wiring Diagram:

Step 1:

Step 1(continued)-3:

Step 3(continued):

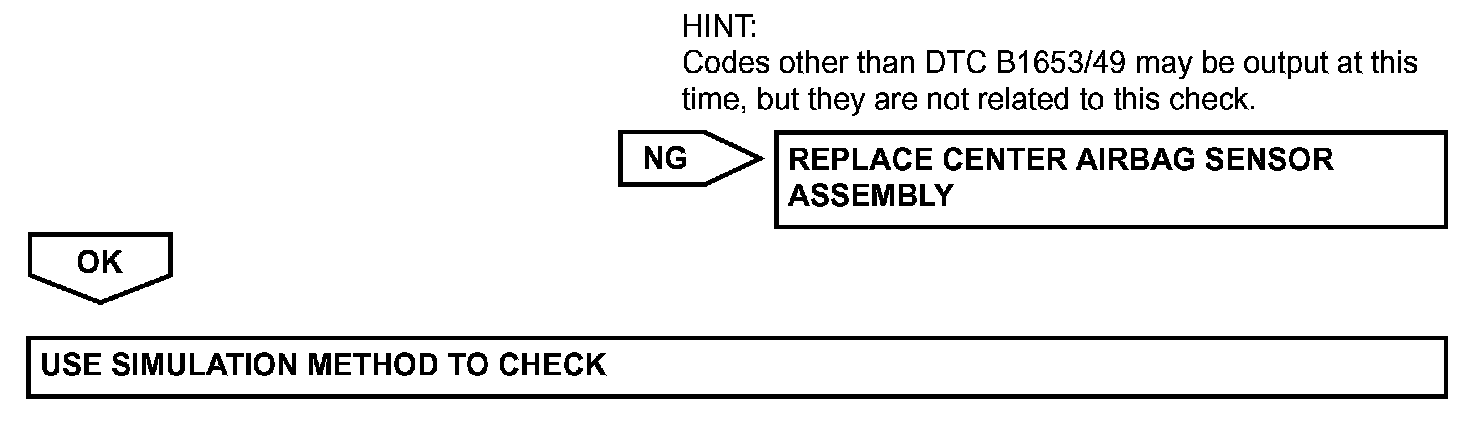

INSPECTION PROCEDURE
