C0279

DTC C0278/11 Open or Short Circuit in ABS Solenoid Relay Circuit
DTC C0279/12 Short to B+ in ABS Solenoid Relay Circuit

DESCRIPTION
The ABS solenoid relay is built in the ABS & TRACTION Actuator assembly. This relay supplies power to each ABS solenoid. If the initial check is OK, after the ignition switch is turned to the ON position, the relay goes on.

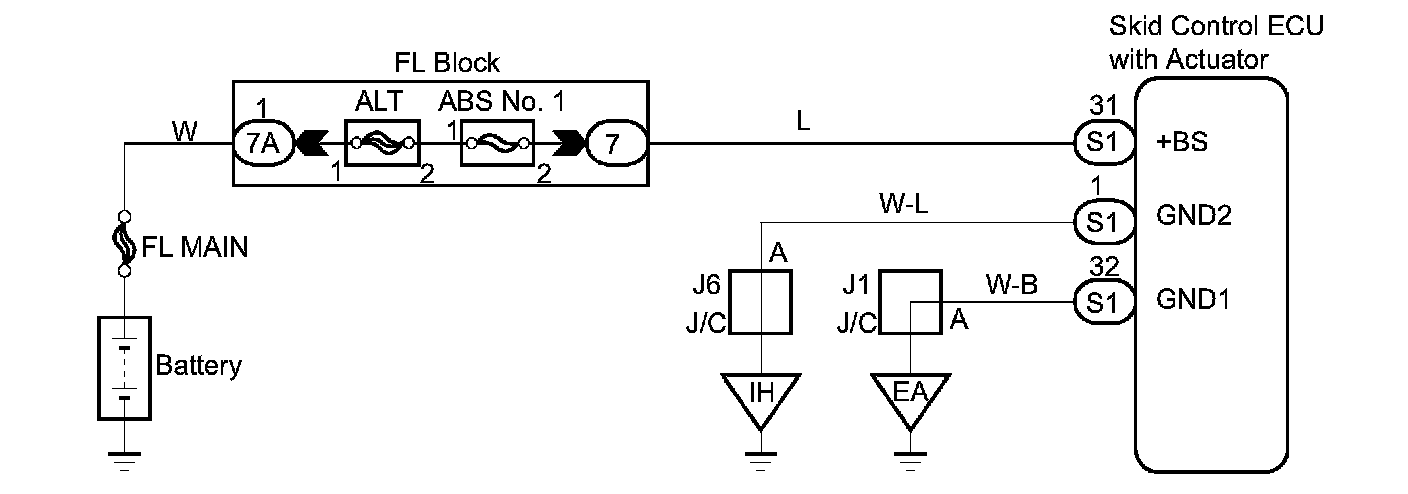

WIRING DIAGRAM:

INSPECTION PROCEDURE

Step 1:

Step 1 (Continued)-3:

Step 3 (Continued)-5:

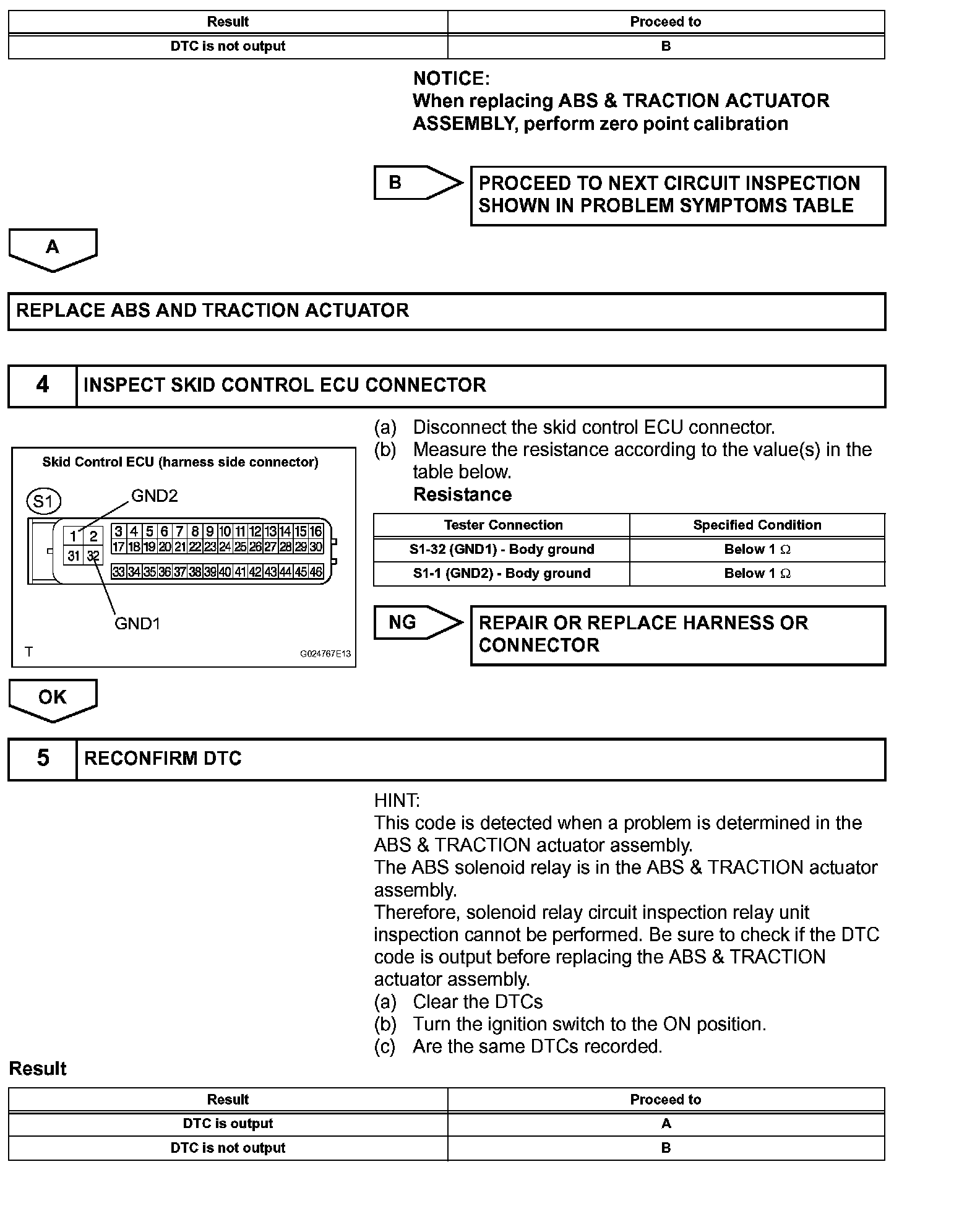

Step 5 (Continued):
