C1742

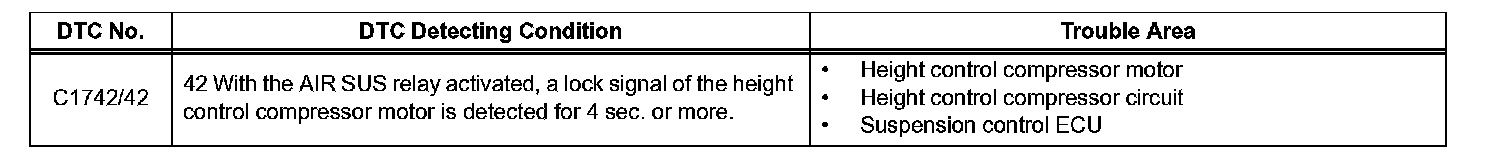

DTC C1742/42 Height Control Compressor Circuit

DESCRIPTION





The signal from suspension control ECU turns on the AIR SUS relay At the time, battery voltage is input to height control compressor motor through the AIR SUS relay. The height control compressor motor starts.

Wiring Diagram:

Refer to DTC C1735/35 C1735
Refer to DTC C1737/31 C1737
Refer to DTC C1744/44 C1744

INSPECTION PROCEDURES

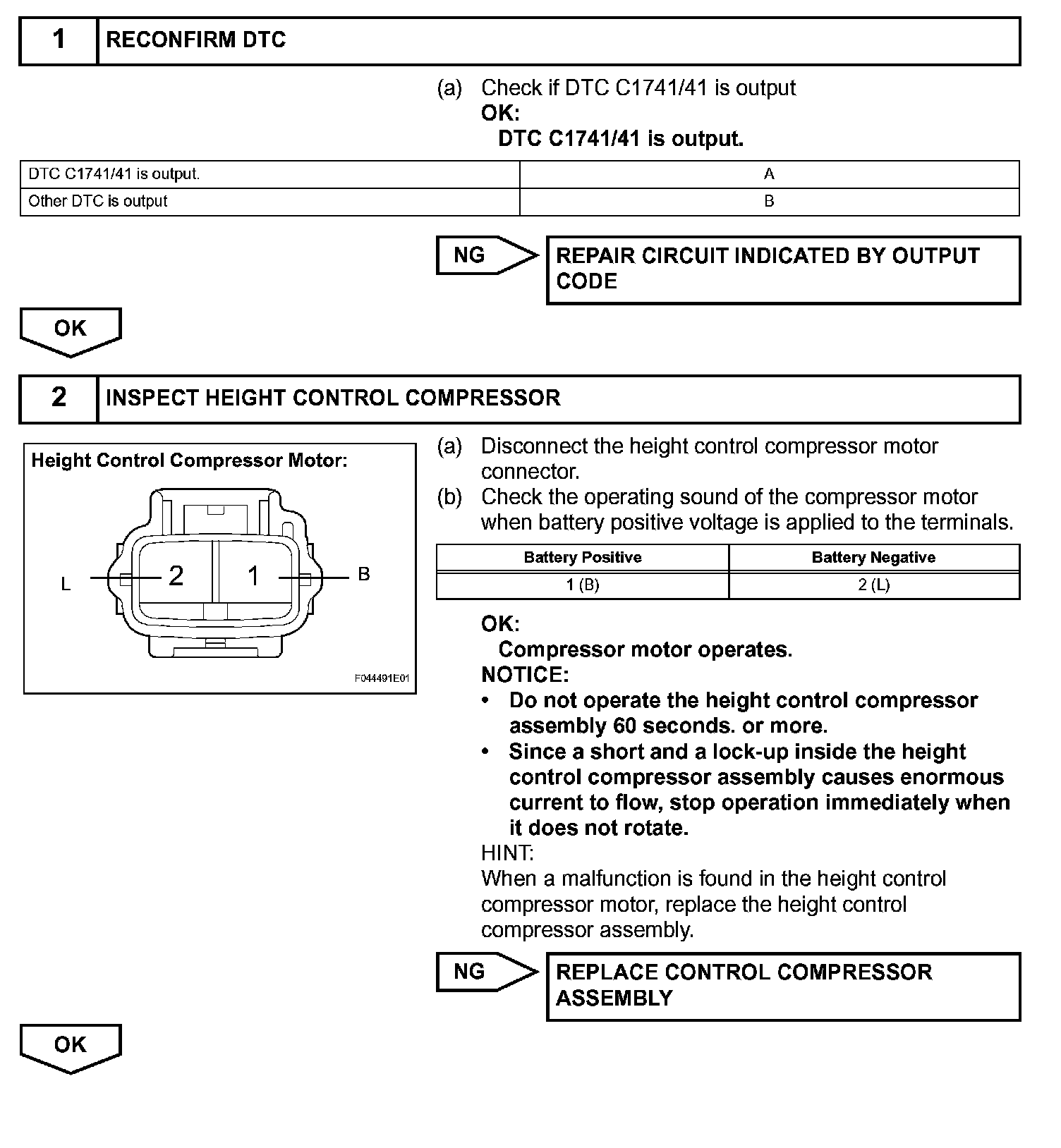

Steps 1-2:

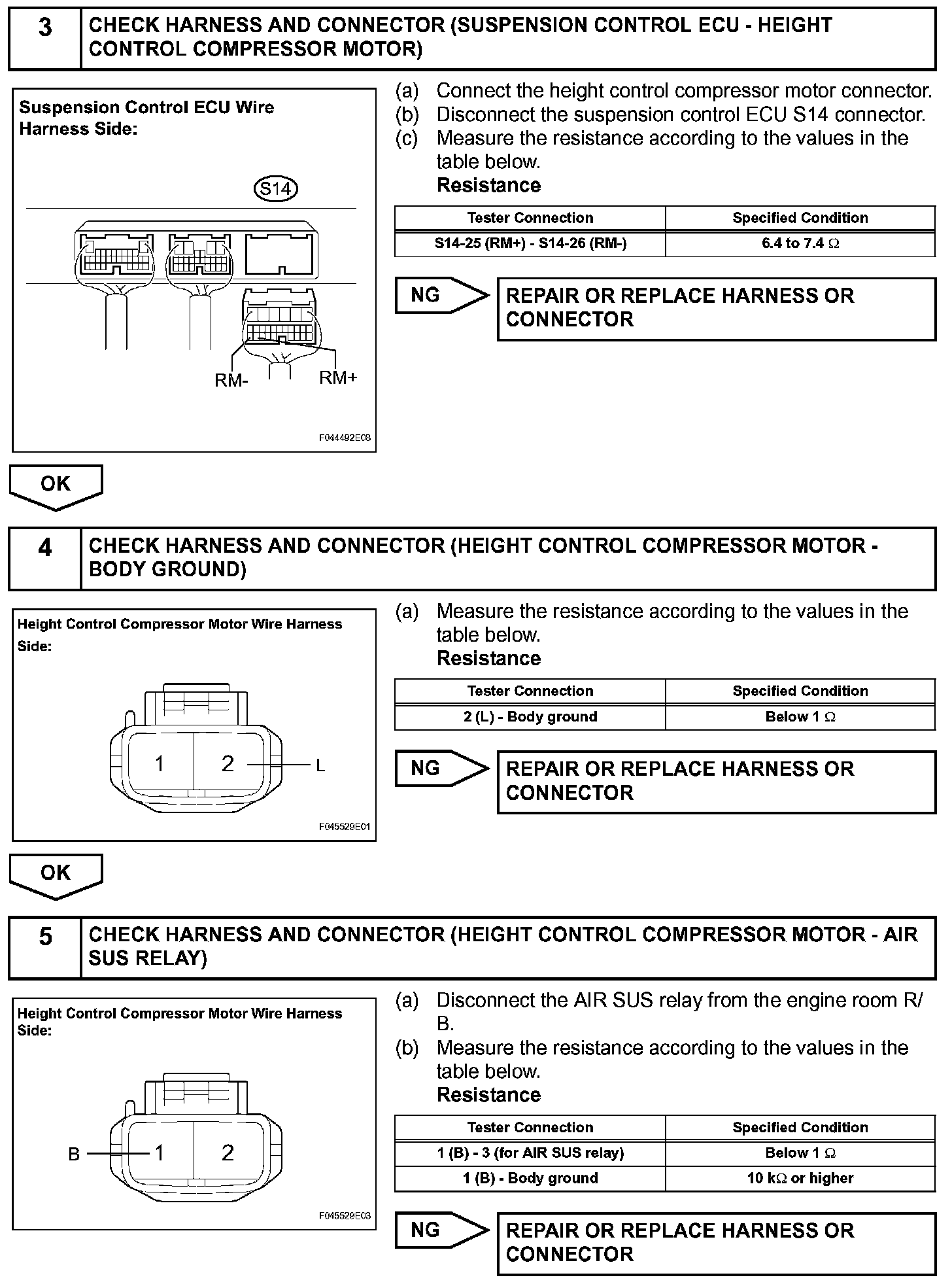

Steps 3-5:

Steps 5(continued)-7:

Step 8:

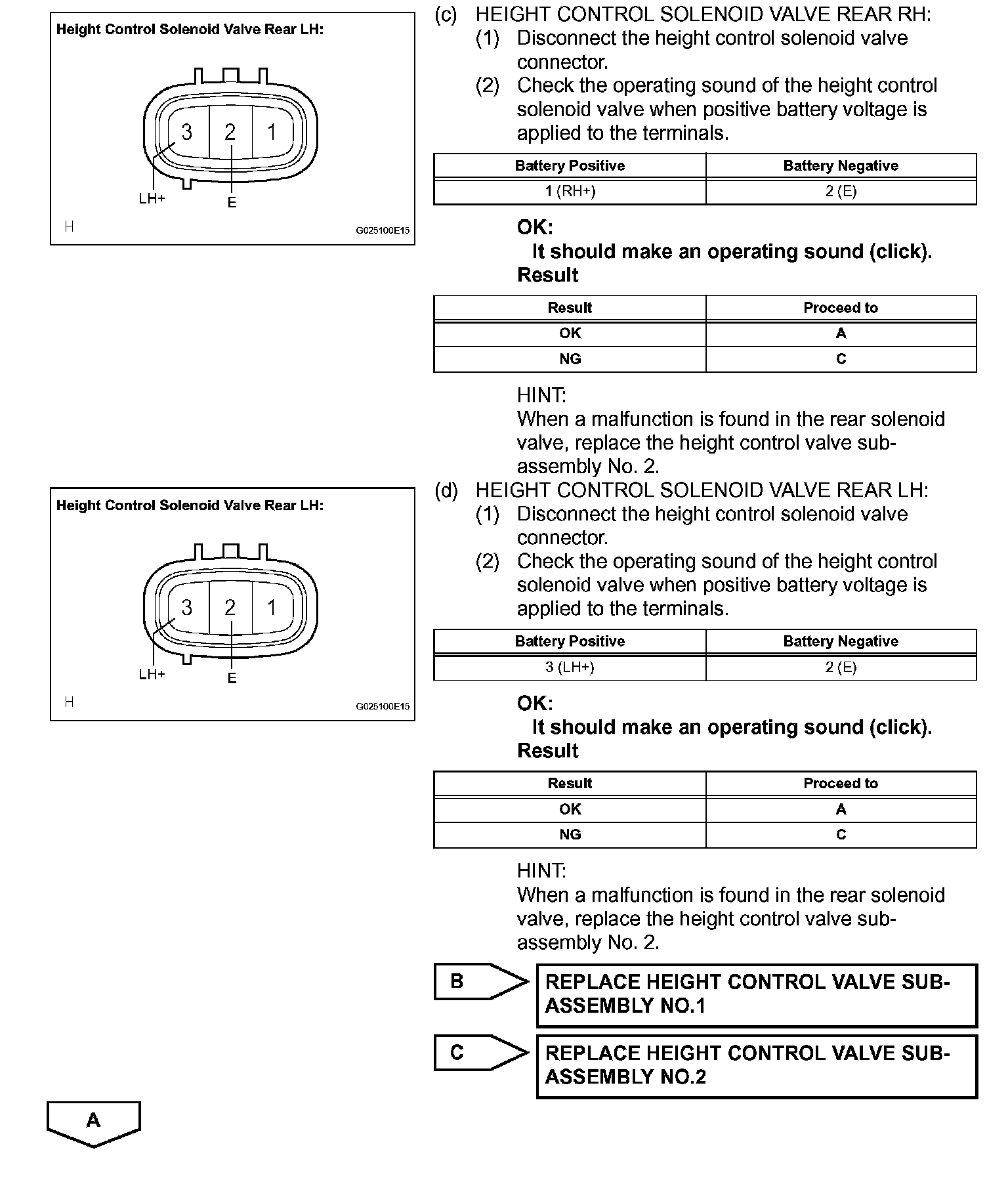

Step 8(continued):

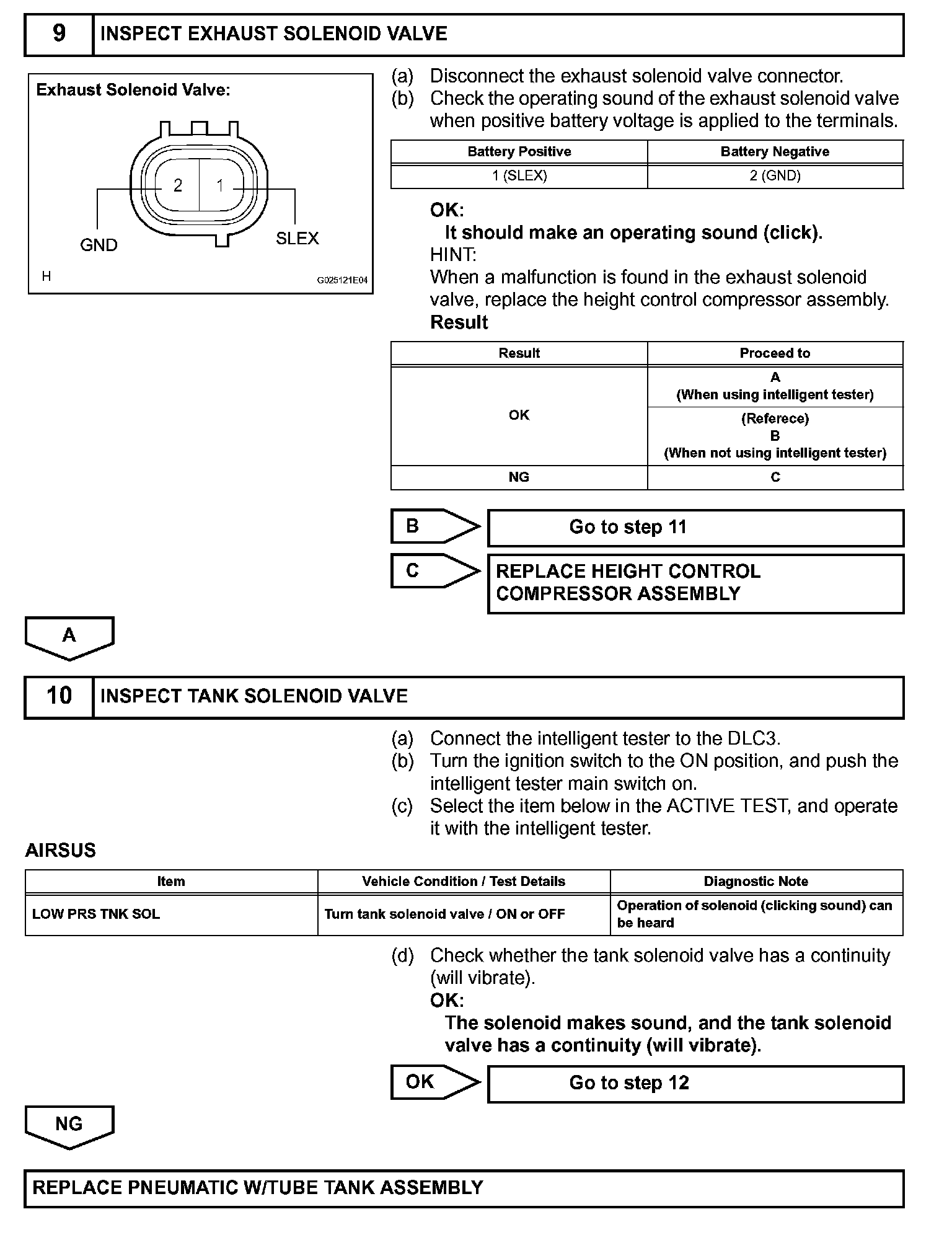

Steps 9-10:

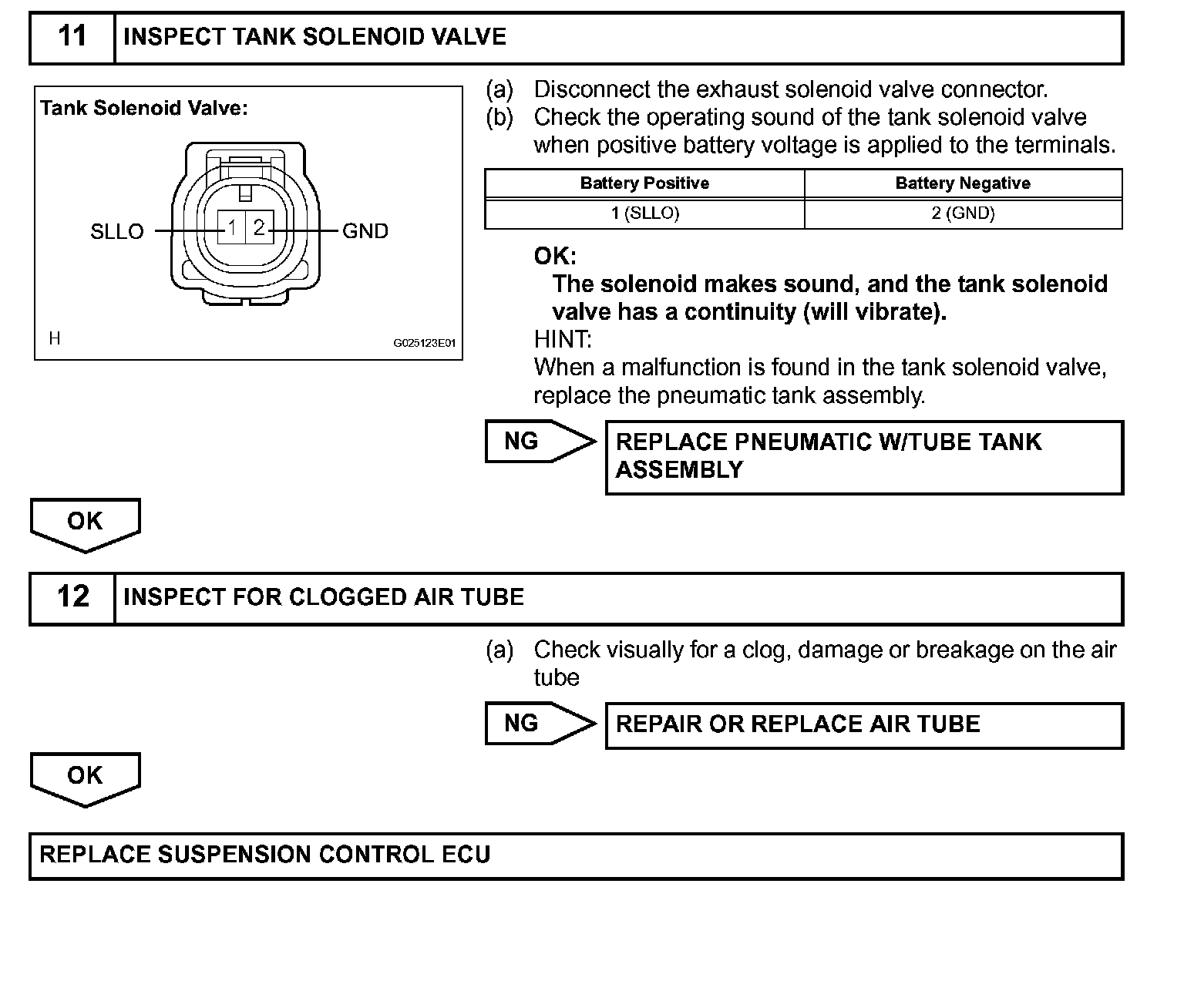

Steps 11-12:
